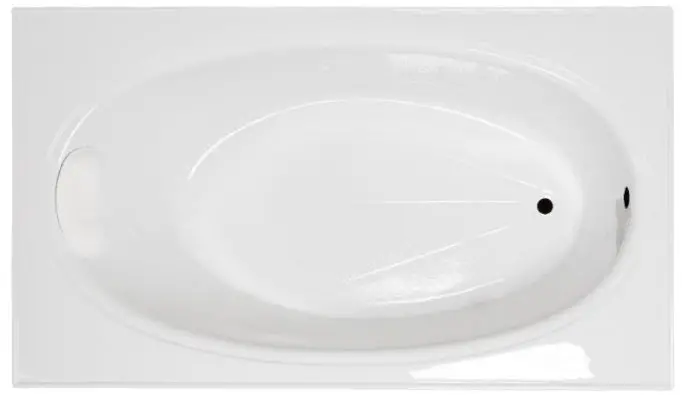

Laurel Mountain 4272ET064 EVERSON 2 72 x 42 Inch Drop-In Acrylic Soaking Tub Instruction Manual
Features
- Constructed of high-gloss durable acrylic
- Pillow included
- Pre-leveled base for easy installation
- Textured floor
- Heater available – LM305
- Mood light available – LM522
- Made in the USA

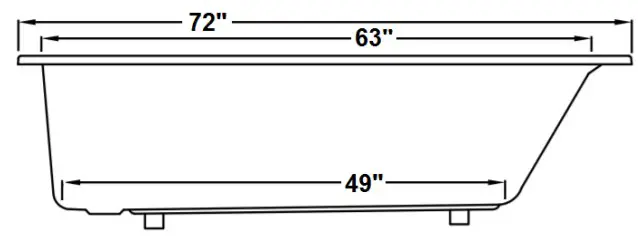

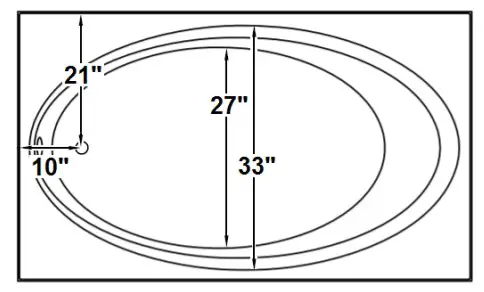

Diminsions
- All dimensions are +/- 1/2” and subject to change without notice* Confirm specifications before installation
Technical Information
- Cut-Out Dimensions: 70” x 40”
- Weight: 150 lbs.
- Water Depth to Overflow: 14 3/4”
- Water Capacity: 75 gal.
- Sump Dimension: 49” x 27
Electrical Requirements
- (Optional) LM305 Heater: 12.5 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
LM305 12.5 Amp Water Heater (120V): LM522 Chromatherapy Mood Light
LM301 Warm Comfort Radiant Heat: LM525 Wāv Music. Vibe. Lights
Accessories
| CABLE OPERATED DRAINS | 8” GRAB BARS | |
| LM200 Chrome | LM210 White | LM230 White |
| LM201 Brushed Nicke | LM211 Biscuit | LM231 Biscuit |
| LM202 Bronze | ||
Design / Construction
LM542 Plastic Flange
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
