Laurel Mountain 7242MT064 MELFA 72 Inch x 42 Inch Drop-In Acrylic Tub

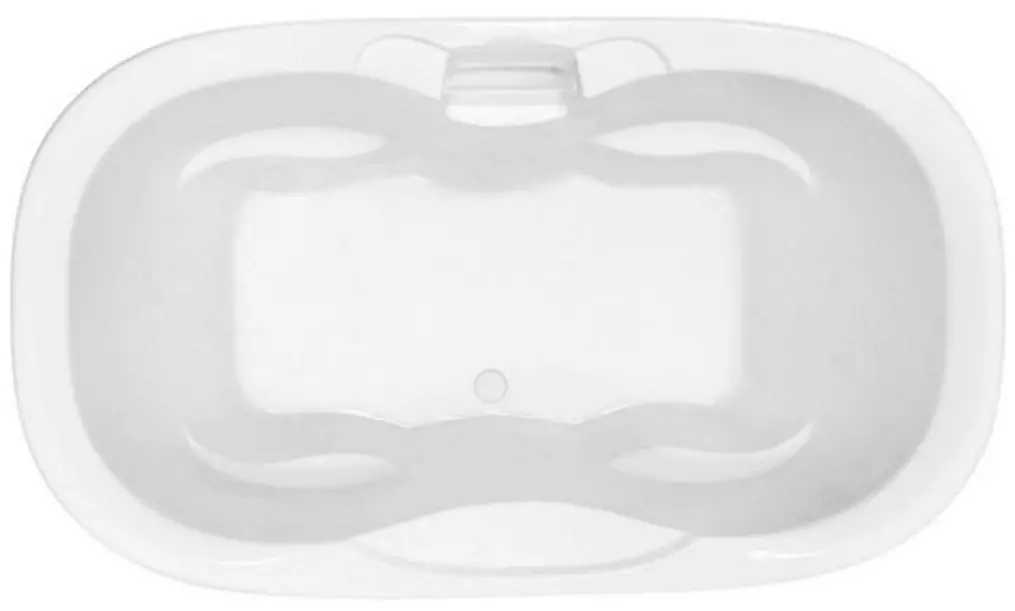

7242MT064 MELFA 72 Inch x 42 Inch Drop-In Acrylic Tub

Features

  • Constructed of high-gloss durable acrylic
  • Textured slip resistant bottom
  • Deep bathing well
  • Pre-leveled base for easy installation
  • Transitional / Modern design
  • Limited lifetime warranty
  • Made in the USA

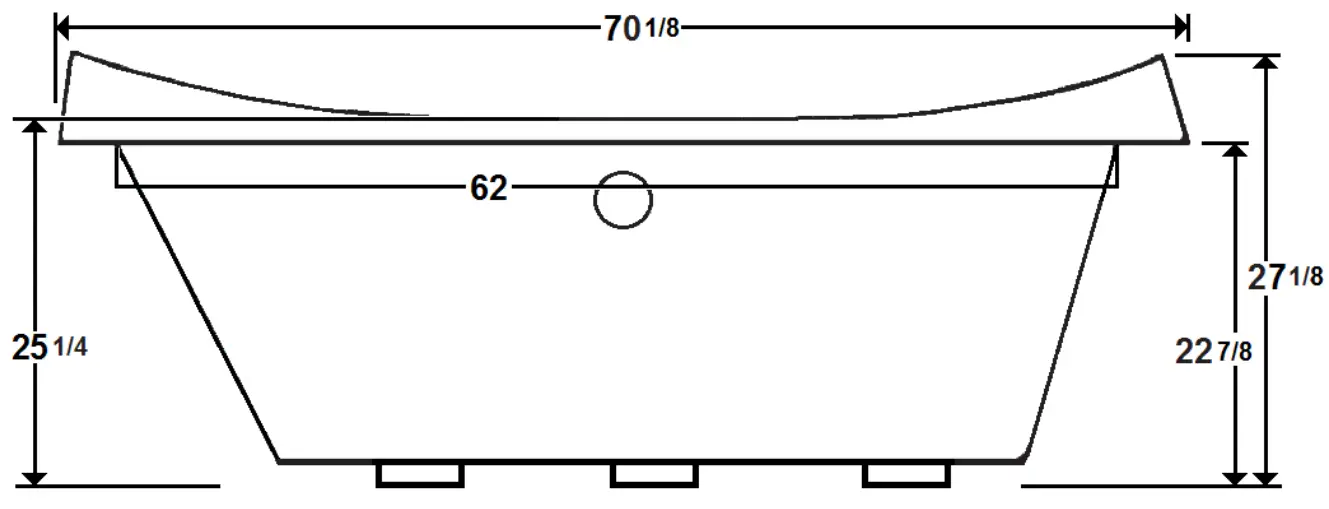

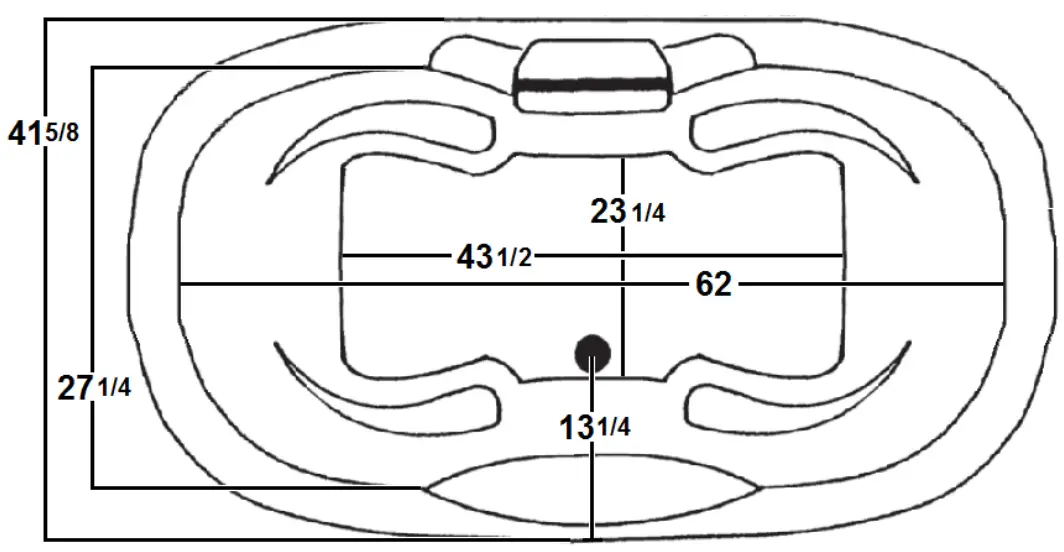

Dimension

*All dimensions are +/- 1/2” and subject to change without notice*
Dimension
Dimension

Technical Information

  • Weight: 184 lbs.
  • Water Depth to Overflow: 17 1/2”
  • Water Capacity: 95 gal.
  • Sump Dimension: 43 1/2” x 23 1/4

Installation Notes

Install these acrylic fixtures according to the Owner’s Manual. Confirm Specifications before starting installation.

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.

Therapeutic

LM301 Radiant Heat

LM525 Music. Lights. Vibe

Accessories

CABLE OPERATED DRAINS

LM200 ChromeLM210 WhiteLM231 Biscuit
LM201 Brushed NickelLM211 Biscuit

LM202 Bronze

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
