DORAN
70” x 36” Drop-In
Acrylic Combo Bath
Instruction Manual

7036DWA064 70 Inch x 36 Inch Drop-In Acrylic Combo Bath

Model Number
7036DWA064

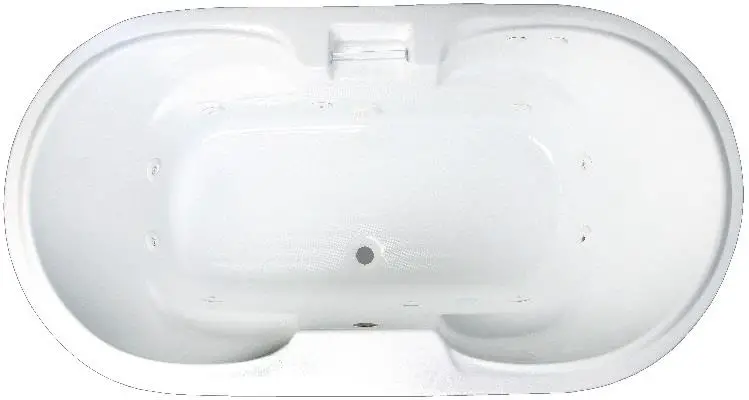

Drop-In Combo Bath in White

Features

• Color-matched jet trim
• 10 adjustable hydrotherapy jets
• 24 high output lateral air jets
• Constructed of high-gloss durable acrylic
• 3-Speed control for the 13.0 Amp pump
• 12.0 Amp variable speed blower
• Mood light included
• Pre-leveled base for easy installation
• Made in the USA

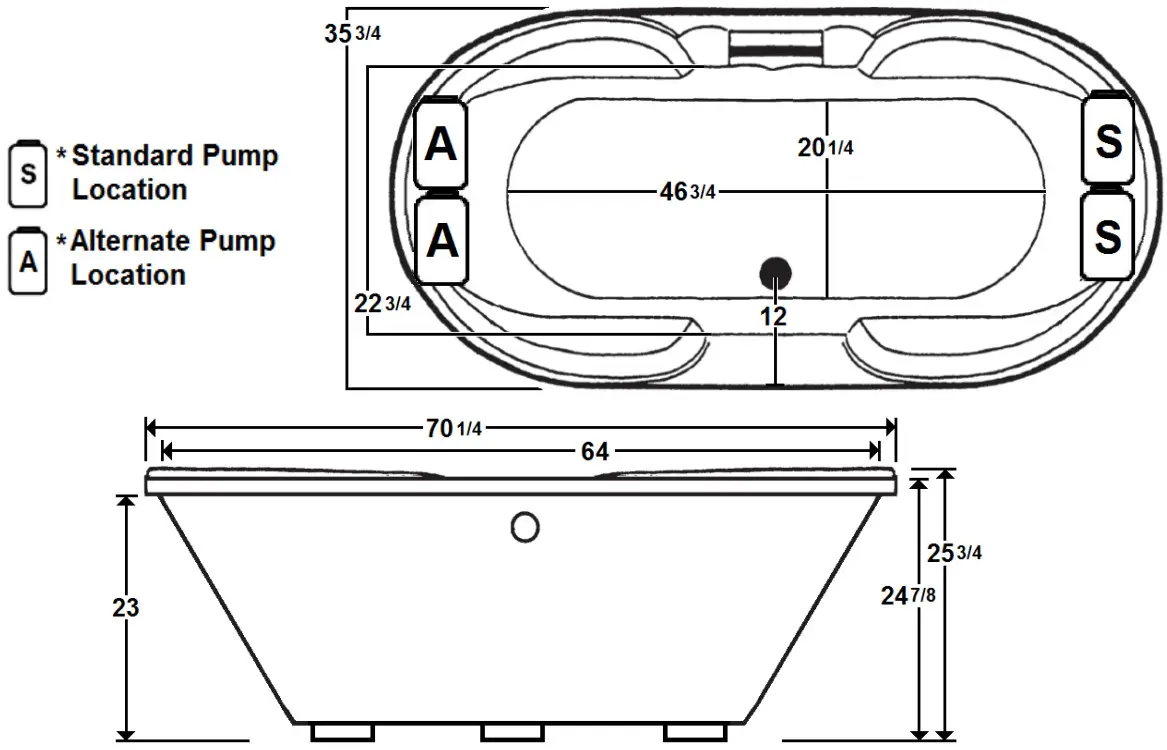

*All dimensions are +/- 1/2” and subject to change without notice*

Technical Information

• Weight: 166 lbs.
• Water Depth to Overflow: 18”
• Water Operating Level: 57 gal.
• Water Capacity: 80 gal.
• Sump Dimension: 46 3/4” x 20 1/4”

Electrical Requirements

• Standard Pump: 13 Amps
• Standard Blower: 12 Amps
• (Optional) LM300 Heater: 12 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic

• LM300 Inline Heater
• LM500 Back Jets – Two extra back jets on the same backrest

Accessories

Design / Construction
LM545 A-1 Pump Loc

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-005
