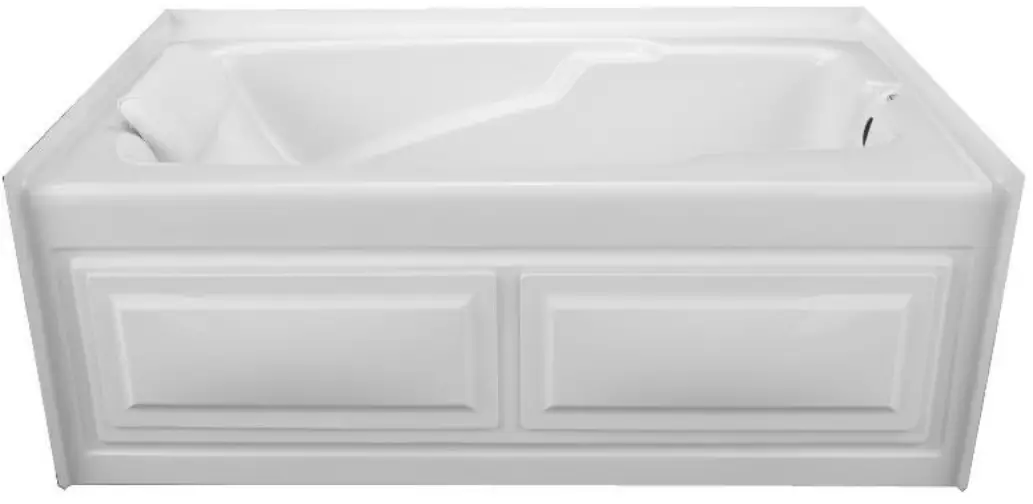

3660MWASR064 60 Inch x 36 Inch Skirted Acrylic Combo Bath
User Manual
MERCER V
60” x 36” Skirted
Acrylic Combo Bath
3660MWASR064 60 Inch x 36 Inch Skirted Acrylic Combo Bath
Model Number 3660MWASR064
Right Hand Drain Combo Bath in White 3660MWASL064
Left Hand Drain Combo Bath in White
Features
- Color-matched jet trim and air controls
- 10 adjustable hydrotherapy jets
- 24 high output lateral air jets
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 9 Amp pump
- 12.0 Amp variable speed blower
- Inline Heater Available
- Mood light & Music system available
- Pre-leveled base for easy installation
- Made in the USA

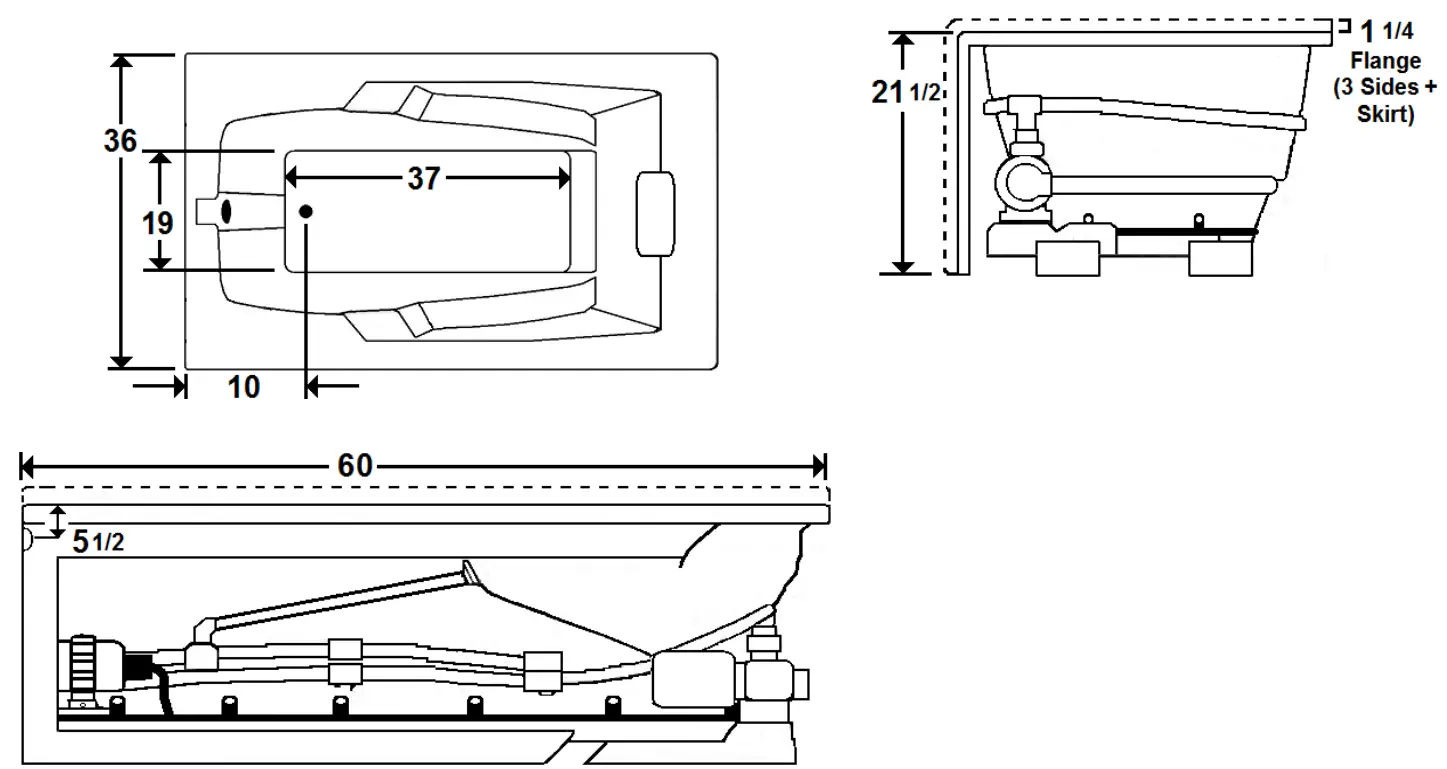

*All dimensions are +/- 3/8” and subject to change without notice*
Confirm specifications before installation

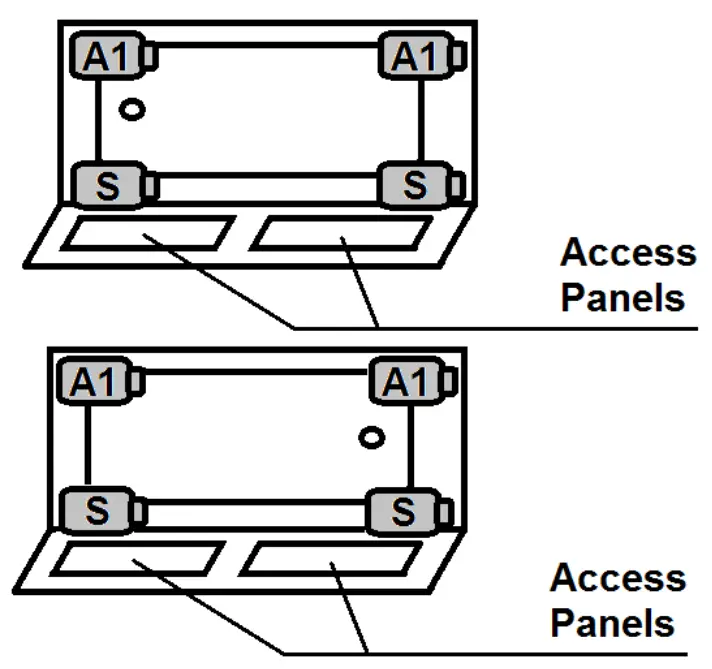

Standard (S) & Alternate (A-1 ) Pump locations.
Technical Information
- Weight: 190 lbs.
- Water Depth to Overflow: 15 1/4”
- Water Operating Level: 44 gal.
- Water Capacity: 58 gal.
- Sump Dimension: 37” x 19”
Electrical Requirements
- Standard Pump: 9 Amps; Silent Pump: 11.5 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
HEATERS………….. (select one)
LM300……………. Inline Heater
LM320 ………………………Whisper Flow Silent Pump & Heater
OTHER THERAPIES………. (select one)
LM522……………………….. Chromatherapy Mood Light
LM525…………………………. Wāv Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS LM101 Chrome LM102 Brushed Nickel LM103 Bronze | CABLE OPERATED DRAINS LM200 Chrome LM201 Brushed Nickel LM202 Bronze LM210 White LM211 Biscuit | 8” GRAB BARS LM230 White LM231 Biscuit LM335 Ozonator (Sanitizing System) |
Design / Construction
LM545 A-1 Pump Loc
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain
Customer Service: 1-800-930-0050
