Laurel Mountain 6032swasr064 Stephen 60” X 32” Skirted Acrylic Combo Bath User Guide

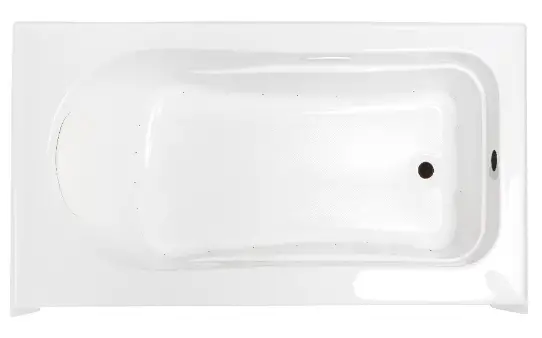

Laurel Mountain 6032SWASR064 Stephen 60” x 32” Skirted Acrylic Combo Bath

Features

• Color-matched jet trim and air controls
• 10 adjustable hydrotherapy jets
• 20 high output lateral air injectors
• Pillow included
• Constructed of high-gloss durable acrylic
• 3-Speed control for the 9.0 Amp pump
• 2.0 Amp variable speed blower
• Inline heater available – LM300
• Mood light available – LM522
• Pre-leveled base for easy installation
• Made in the USA

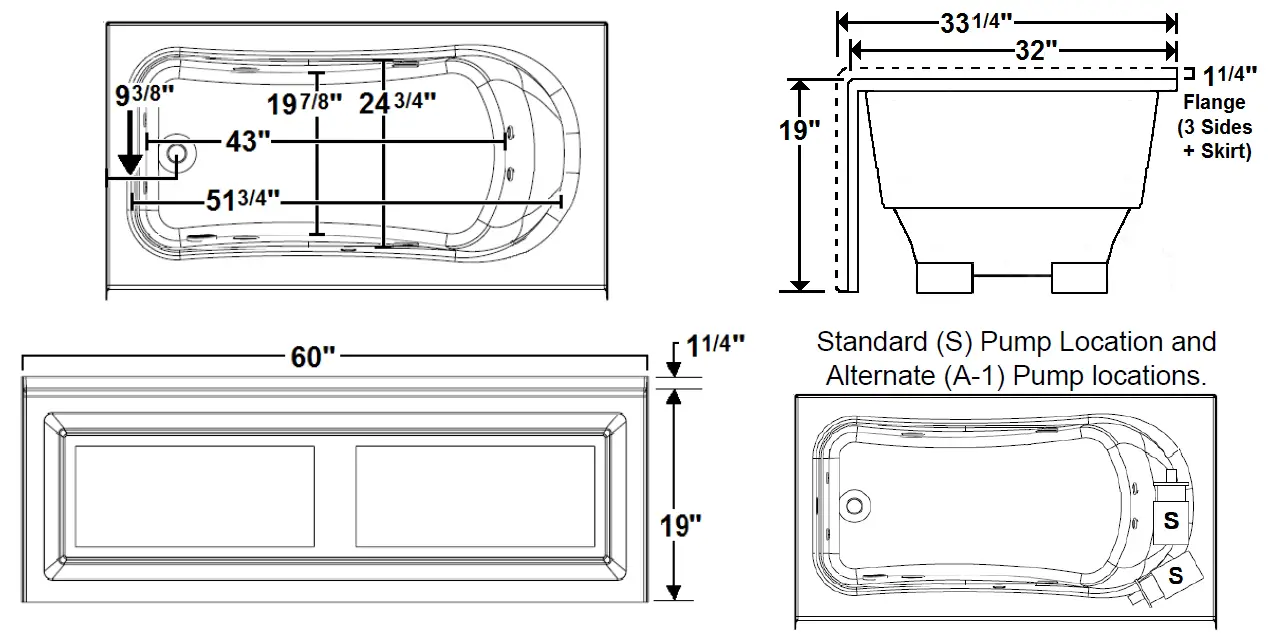

Dimensions

All dimensions are +/- 1/2” and subject to change without notice Confirm specifications before installation

Technical Information

• Weight: 192 lbs.
• Water Depth to Overflow: 13 5/8”
• Operating Capacity: 31 gal.
• Water Capacity: 53 gal.
• Sump Dimension: 43” x 19 7/8”

Electrical Requirements

• Standard Pump: 9.0 Amps
• Standard Blower: 12.0 Amps
• (Optional) LM300 Heater: 12.0 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.

Therapeutic

• LM300 Inline Heater
• LM522 Chromatherapy Mood Light
• LM320 Silent Pump
• LM525 Music. Lights. Vibe

Accessories

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
