Laurel Mountain 7236PWA064 PARKER 7 72 Inch x 36 Inch Drop-In Acrylic Combo Bath Installation Guide
Features
- Color-matched jet trim
- 10 adjustable hydrotherapy jets
- 20 high output lateral air jets
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 13 Amp pump
- 12.0 Amp variable speed blower
- Mood light included
- Inline heater available – LM300
- Pre-leveled base for easy installation
- Can be installed as an undermount
- Made in the USA

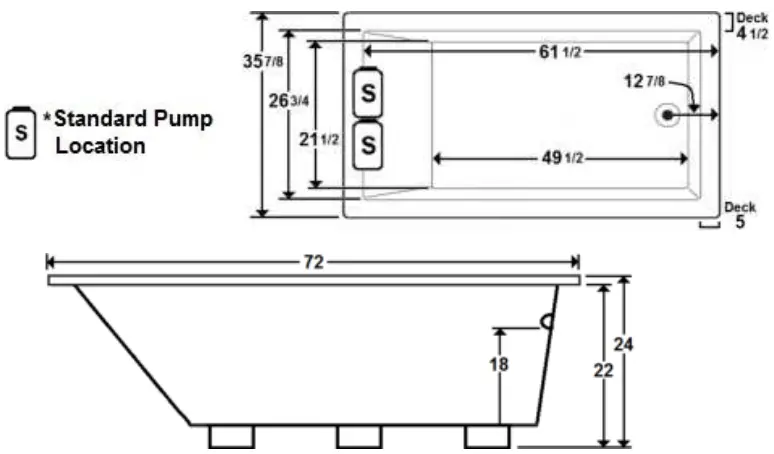

Dimensions
*All dimensions are +/- 1/2” and subject to change without notice*
Technical Information
- Weight: 169 lbs.
- Water Depth to Overflow: 18”
- Water Operating Level:
- Water Capacity: 103 gal.
- Sump Dimension: 49 1/2” x 21 1/2
Electrical Requirements
- Standard Pump: 13 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM300 Inline Heater | LM320 Silent Pump |
| LM525 Music. Lights. Vibe |
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | 8” GRAB BARS |
| LM101 Chrome | LM200 Chrome | LM230 White |
| LM102 Brushed Nickel | LM201 Brushed Nickel | LM231 Biscuit |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | LM335 Ozonator | |
| LM211 Biscuit | (Sanitizing System) |
Design / Construction
| LM540 Int. Flange RH | LM541 Int. Flange LH | LM542 Attach. Plastic Flange |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
