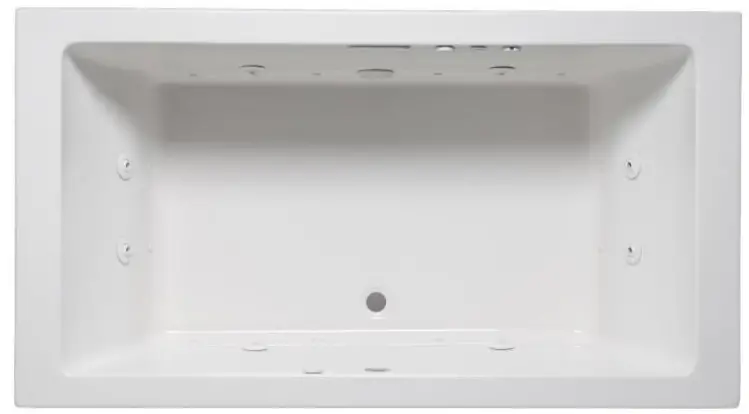

7242FWA064 72 Inch x 42 Inch Drop In Acrylic Combo Bath
User Manual

7242FWA064 72 Inch x 42 Inch Drop In Acrylic Combo Bath

Features

• Color-matched jet trim
• 10 adjustable hydrotherapy jets
• 24 high output lateral air jets
• Constructed of high-gloss durable acrylic
• 3-Speed control for the 13.0 Amp pump
• 12.0 Amp variable speed blower
• Mood light included
• Inline heater available – LM300
• Pre-leveled base for easy installation
• Can be installed as an undermount
• Made in the USA

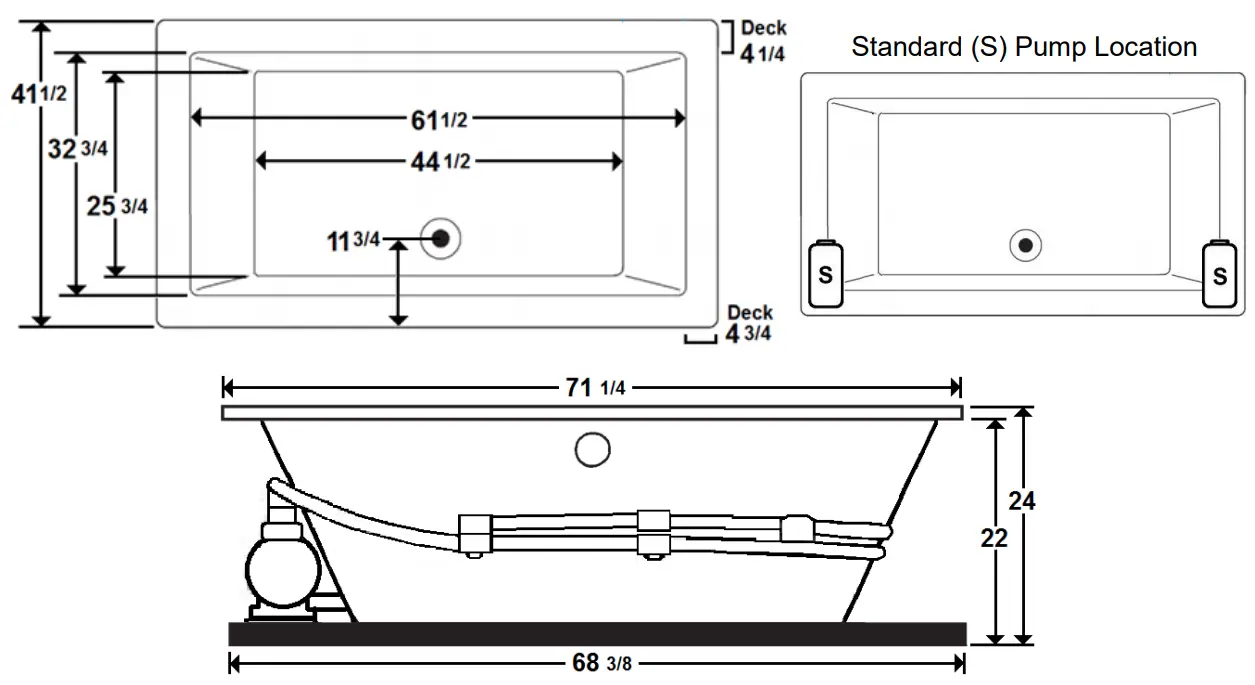

*All dimensions are +/- 1/2” and subject to change without notice*

Technical Information

• Weight: 188 lbs.
• Water Depth to Overflow: 17 3/4”
• Water Operating Level: NA
• Water Capacity: 163 gal
• Sump Dimension: 61 1/2” x 44 1/2”

Electrical Requirements.

• Standard Pump: 13 Amps
• Standard Blower: 12 Amps
• (Optional) LM300 Heater: 12 Amps
• (Optional) LM320 Silent Pump: 11 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic

Accessories

Design / Construction
LM542 Attachable Flange

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
