Laurel Mountain 6636MWA064 66 Inch x 36 Inch Drop-In Acrylic Combo Bath
Features
- Color-matched jet trim
- 10 adjustable hydrotherapy jets
- 24 high output lateral air jets
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 9 Amp pump
- 12.0 Amp variable speed blower
- Inline heater available – LM300
- Mood light included
- Pre-leveled base for easy installation
- Made in the USA

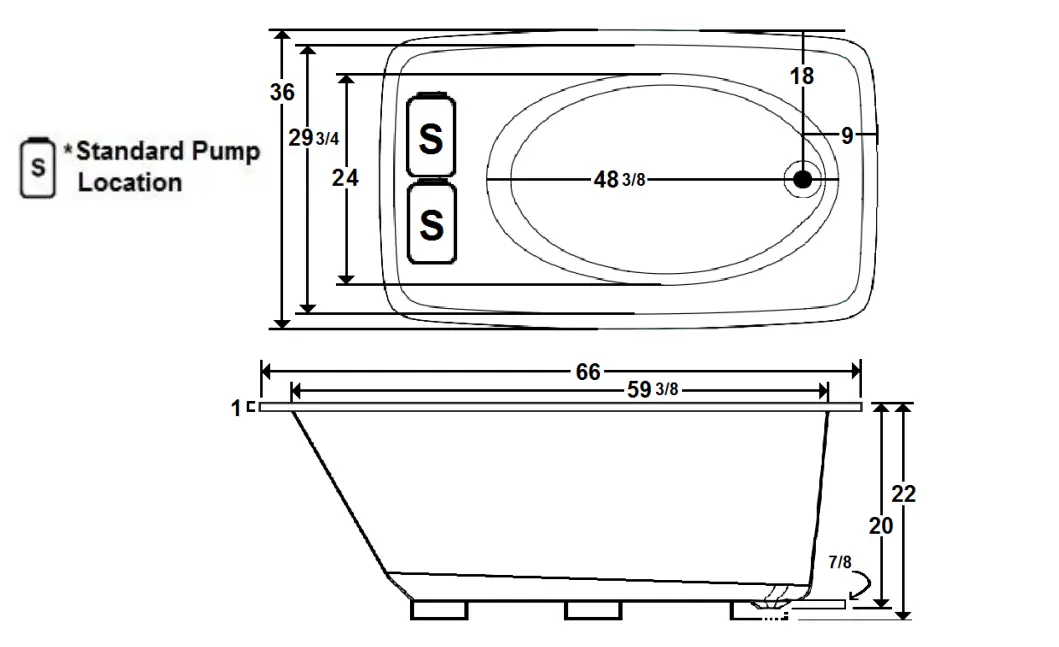

*All dimensions are +/- 1/2” and subject to change without notice*
Technical Information
- Weight: 164 lbs.
- Water Depth to Overflow: 16 1/4”
- Water Operating Level:
- Water Capacity: 83 gal.
- Sump Dimension: 48 3/8” x 24”
Electrical Requirements
- Standard Pump: 13 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM300 | nine Heater |
| LM522 | Chroma therapy |
| LM320 | Silent Pump |
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | LM335 Ozonator (Sanitizing System) |
| LM101 Chrome LM102 Brushed Nickel LM103 Bronze | LM200 Chrome LM201 Brushed Nickel LM202 Bronze LM210 White LM211 Biscuit |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
