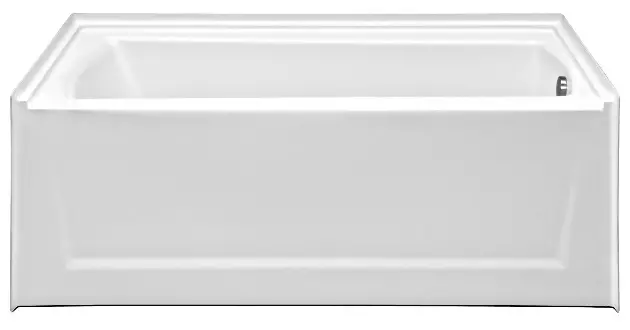

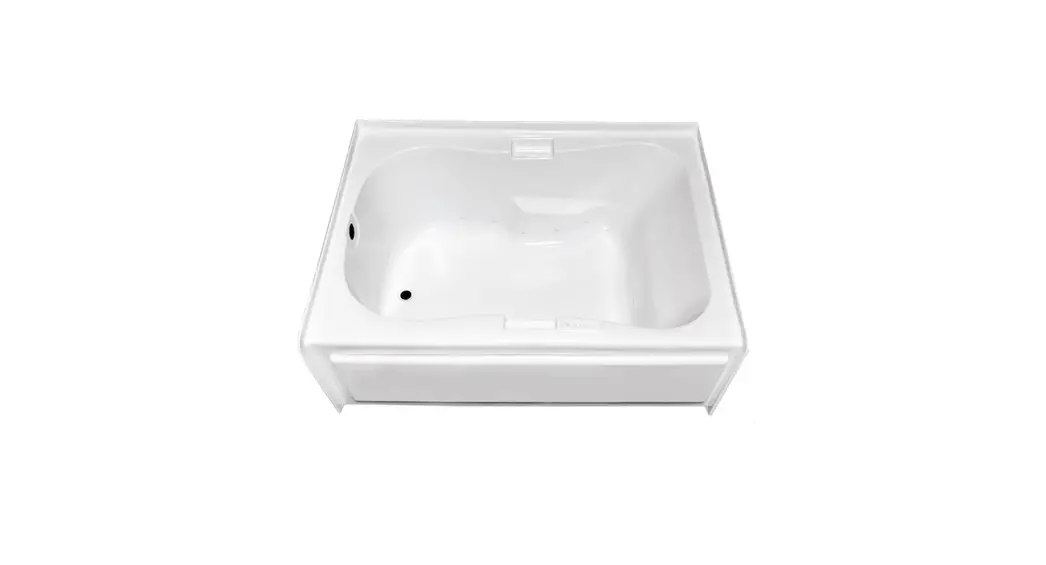

Laurel Mountain 6030PASR064 PARKER 20 60 Inch x 30 Inch Skirted Acrylic Air Bath
Features
- 20 high output lateral air jets
- 10.5 Amp blower / heater
- Variable speed blower with automatic purge
- Includes Wave & Pulse Modes
- Includes Chromatherapy
- AFR – Extended Skirt
- Constructed of high-gloss durable acrylic
- Textured slip resistant bottom
- Deep bathing well with a Minimalist design
- Limited lifetime warranty
- Made in the USA

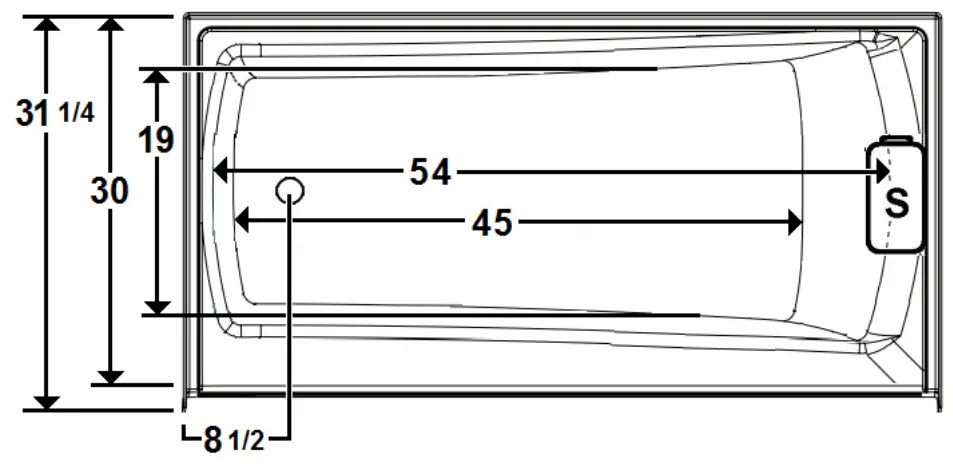

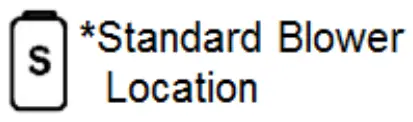

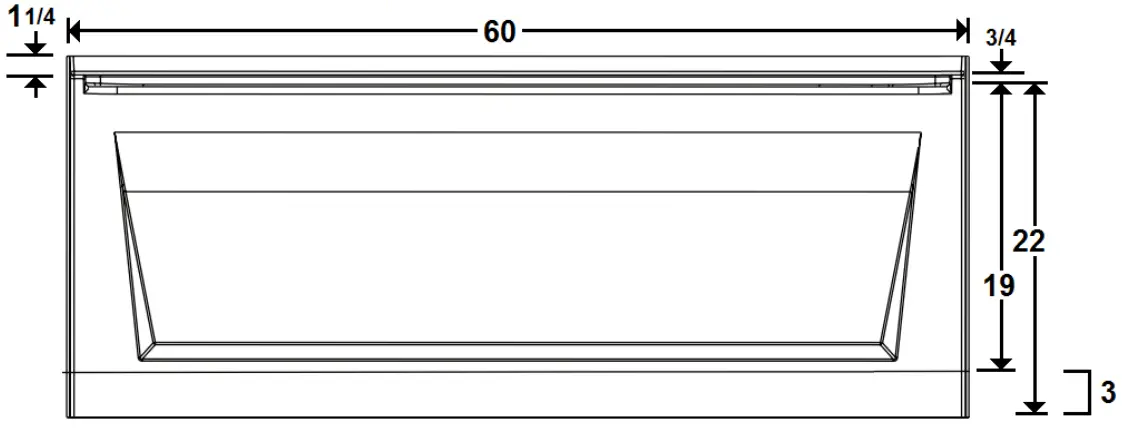

Dimensions
*All dimensions are +/- 1/2” and subject to change without notice*
This unit DOES NOT have removable access panels on the skirt.
Technical Information
- Weight: 155 lbs.
- Water Depth to Overflow: 14”
- Water Capacity: 55 gal.
- Sump Dimension: 45” x 19”
Electrical Requirements
- Standard Blower: 10.5 Amps (120V)
- Dedicated GFCI required
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
- LM301 Radiant Heat
LM525 Wāv Music. Vibe. Lights
Accessories
| CABLE OPERATED DRAINS | ||
| LM200 Chrome | LM210 White | LM231 Biscuit |
| LM201 Brushed Nickel | LM211 Biscuit | LM202 Bronze |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
