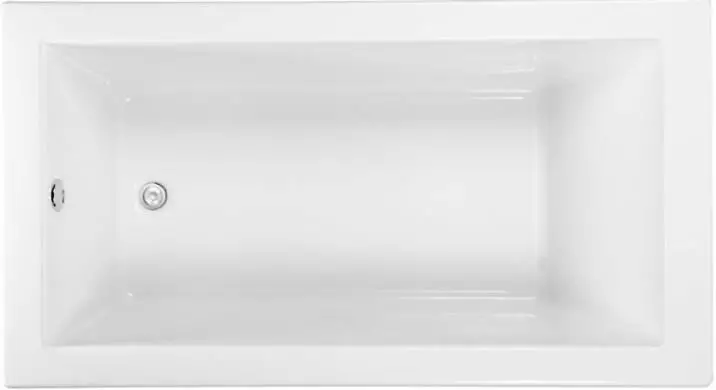

PARKER 3 66” x 32” Drop-In Acrylic Tub
Model Number 6632PT064
Drop-In Soaker in White
Instruction Manual
Features
- Constructed of high-gloss durable acrylic
- Textured slip resistant bottom
- Deep bathing well
- Pre-leveled base for easy installation
- Can be installed as an undermount
- Minimalist design
- Tub can be under mounted
- Limited lifetime warranty
- Made in the USA

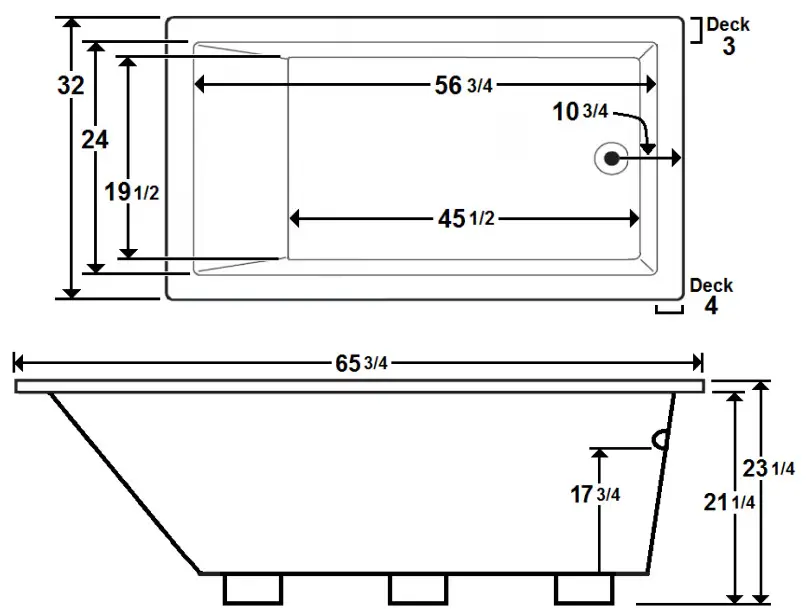

*All dimensions are +/- ½” and subject to change without notice*
Technical Information
- Weight: 148 lbs.
- Water Depth to Overflow: 17 3/4”
- Water Capacity: 79 gal.
- Sump Dimension: 45 1/2” x 19 1/2”
Installation Notes
Install these acrylic fixtures according to the Owner’s Manual.
Confirm Specifications before starting installation.
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM301 Radiant Heat | LM525 Music. Lights. Vibe |
Accessories
CABLE OPERATED DRAINS
| LM200 Chrome LM201 Brushed Nickel | LM210 White LM211 Biscuit | LM231 Biscuit LM202 Bronze |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
