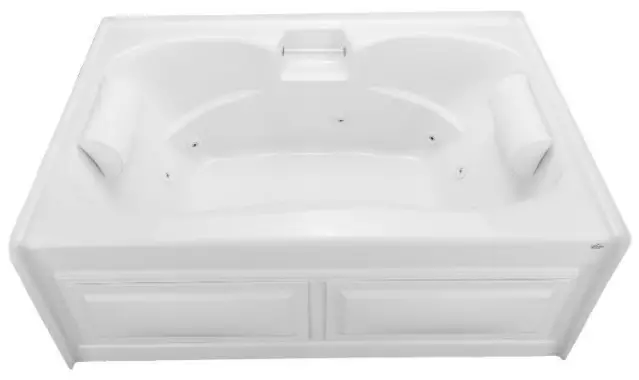

ALCOVE PLUS 60” x 42” Skirted
Acrylic Combo Bath
Model Number 4260APWA064
Center Drain Combo Bath in White
Features
- Color-matched jet trim and air controls
- 10 Self draining, adjustable hydrotherapy jets
- 24 high output lateral air injectors
- Constructed of high-gloss durable acrylic
- Pre-leveled base for east installation
- 3-Speed control for the 13.5 Amp pump
- 12.0 Amp variable speed blower
- Radiant Heat & Inline Heater available
- Mood lights & Music system available
- Silent Pump upgrade available
- Made in the USA
*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Weight: 215 lbs.
- Water Depth to Overflow: 16 1/2”
- Water Operating Level: 55 gal.
- Water Capacity: 98 gal.
- Sump Dimension: 36” x 26”
Electrical Requirements.
- Standard Pump: 13.5 Amps; Silent Pump: 11.5 Amps
- Standard Blower: 12.0 Amps
- (Optional) LM300 Heater: 12.0 Amps
- (Optional) LM509 Back Massage: 5.0 Amps
- Dedicated GFCI’s required for each option
Laurel Mountain Customer Service: 1-800-930-0050
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
LM300 Inline Heater
LM522 Chromatherapy
LM500 Extra Back Jets (x2)
LM320 Silent Pump
LM525 Wav. Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS LM101 Chrome LM102 Brushed Nickel LM103 Bronze | CABLE OPERATED DRAINS LM200 Chrome LM201 Brushed Nickel LM202 Bronze LM210 White LM211 Biscuit | 8” GRAB BARS LM230 White LM231 Biscuit LM335 Ozonator (Sanitizing System) |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
