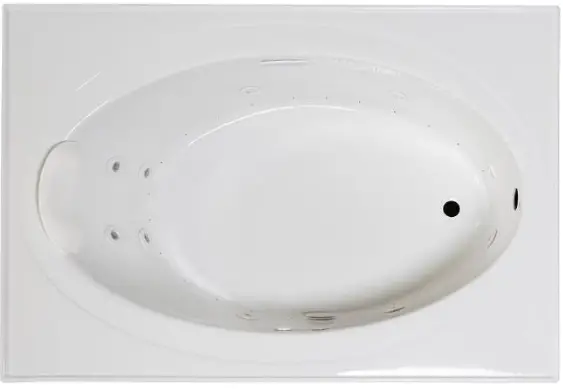

Laurel Mountain Everson 1 60 Inch X 42 Inch Drop-in Acrylic Combo Bath Instruction Manual

EVERSON 1 60 Inch x 42 Inch Drop-In Acrylic Combo Bath
Instruction Manual

Features

• Color-matched jet trim and air controls
• 10 adjustable hydrotherapy jets
• 20 high output lateral air jets
• Pillow included
• Constructed of high-gloss durable acrylic
• 3-Speed control for the 13.5 Amp pump
• 12.0 Amp variable speed blower
• Inline heater available – LM300
• Mood light available – LM522
• Pre-leveled base for easy installation
• Made in the USA

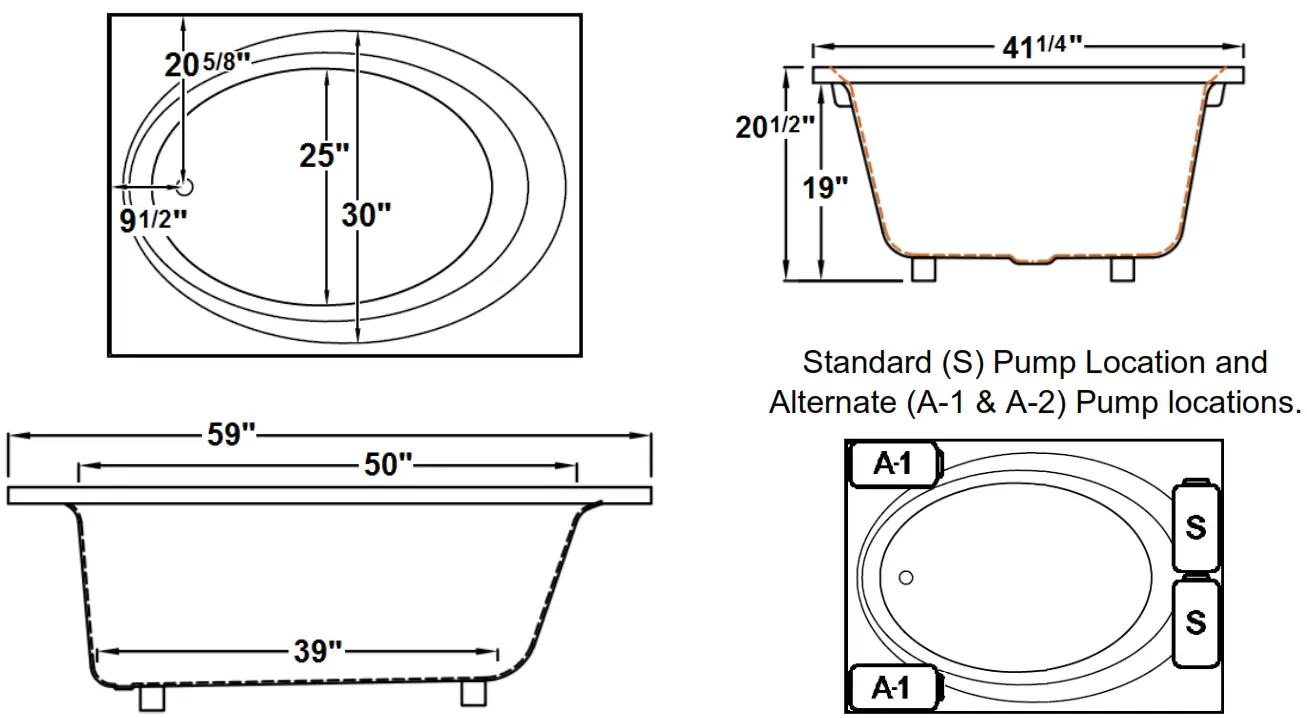

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

Technical Information

• Cut-Out Dimensions: 57” x 39 1/4”
• Weight: 140 lbs.
• Water Depth to Overflow: 11 3/4”
• Water Capacity: 72 gal.
• Sump Dimension: 39” x 25”

Electrical Requirements.

• Standard Pump: 13.5 Amps
• Standard Blower: 12 Amps
• (Optional) LM300 Heater: 12 Amps
• (Optional) LM509 Back Massage: 5 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.

Therapeutic

Accessories

Design / Construction

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
