EVERSON 2

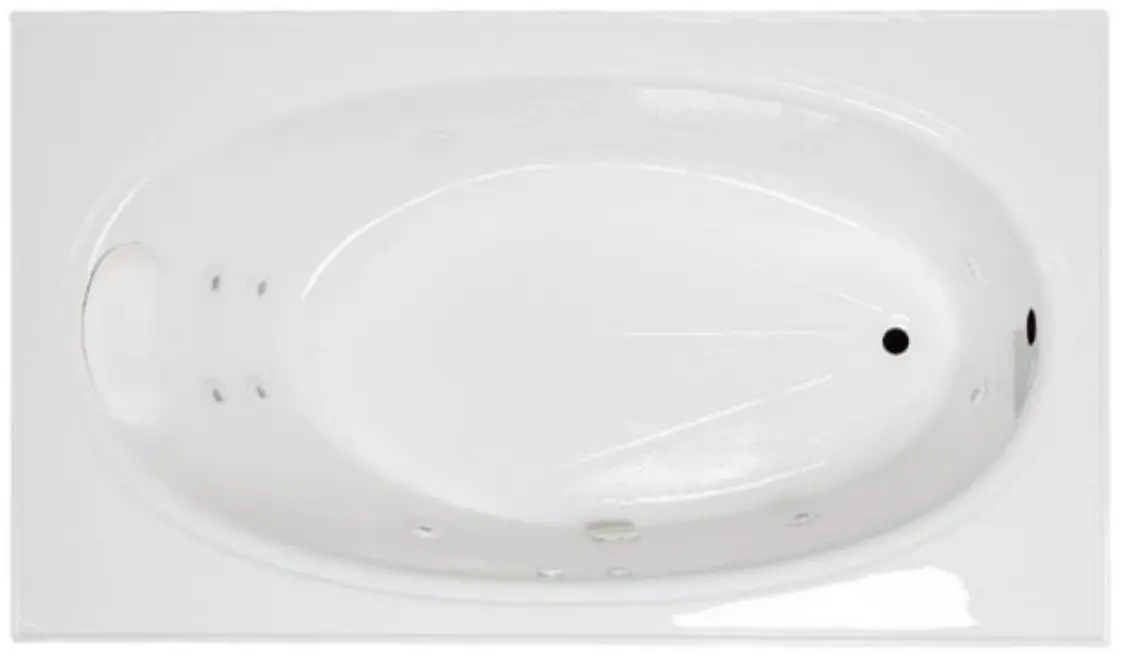

72” x 42” Drop-In
Acrylic Whirlpool
Model Number
4272EW064
Drop-In Whirlpool in White
Features
- Color-matched jet trim & Pillow included
- 10 Self draining, adjustable hydrotherapy jets
- 3-Speed control for the 13 Amp pump
- Constructed of high-gloss durable acrylic
- Pre-leveled base for easy installation
- Radiant Heat & Inline Heater available
- Mood lights & Music system available
- Silent Pump upgrade available
- Made in the USA
*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

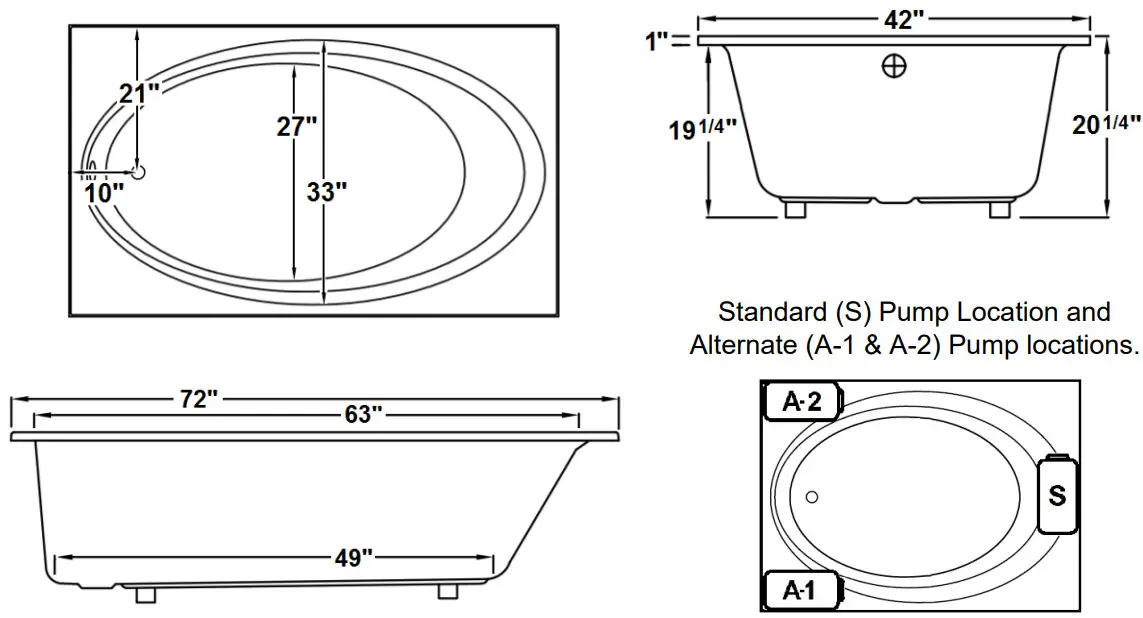

Technical Information
- Cut-Out Dimensions: 70” x 40”
- Weight: 155 lbs.
- Water Depth to Overflow: 14 3/4”
- Water Capacity: 75 gal.
- Sump Dimension: 49” x 27”
Electrical Requirements.
- Standard Pump: 13 Amps
- (Optional) LM300 Heater: 12 Amps
- (Optional) LM320 Silent Pump: 11 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
HEATERS (select one)
LM300 Inline Heater
LM320 Whisper Flow Silent Pump & Heater
LM302 Warm Comfort Radiant Heat *can be ordered w/ the Inline Heater or Silent Pump
OTHER THERAPIES (select one)
LM522 Chromatherapy Mood Light
LM525 Wāv Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | 8” GRAB BARS |
| LM101 Chrome | LM200 Chrome | LM230 White |
| LM102 Brushed Nickel | LM201 Brushed Nickel | LM231 Biscuit |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | LM335 Ozonator | |
| LM211 Biscuit | (Sanitizing System) |
| LM542 Plastic Flange | LM545 A-1 Pump Loc | LM546 A-2 Pump Loc |
| LM555 Skirt (RH drain) | LM556 Skirt (LH drain) |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
