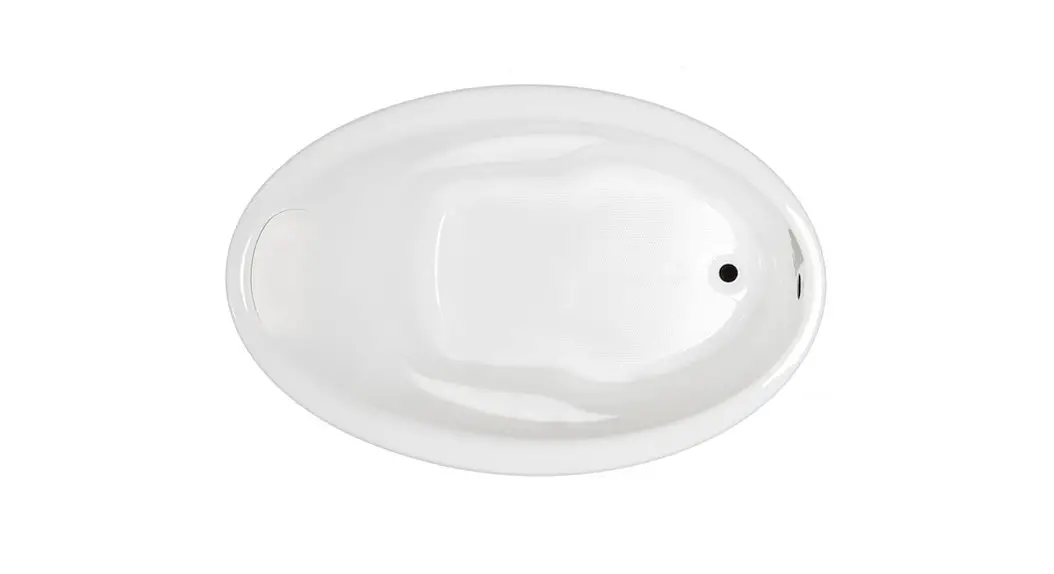

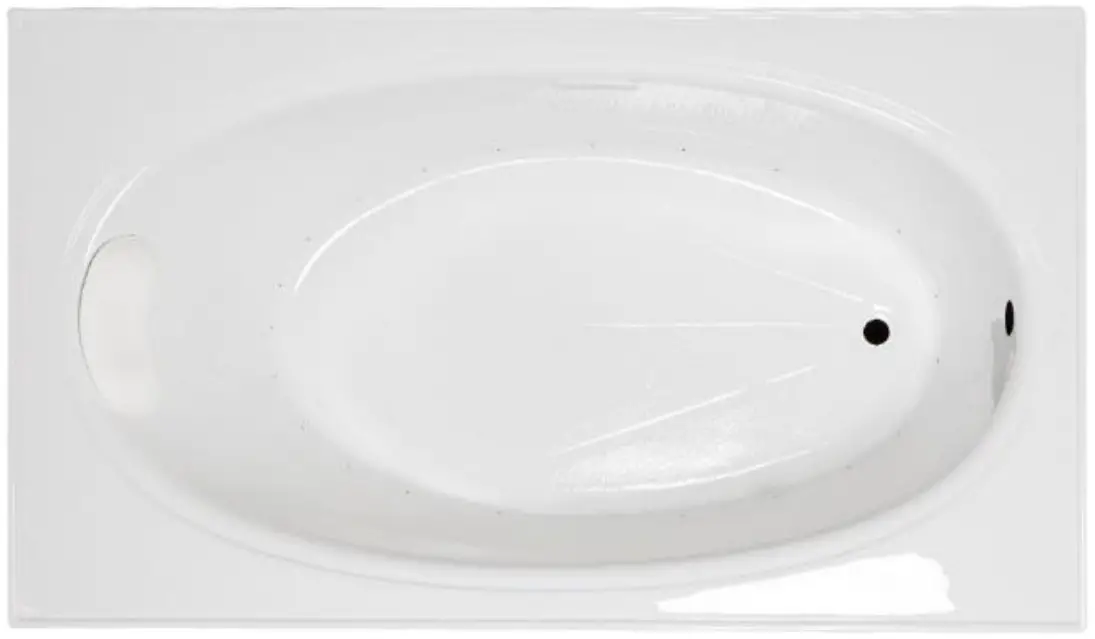

Laurel Mountain 4272eta528 Everson 2 42-in W X 72-in L Biscuit Acrylic Oval Reversible Drain Drop-in Air Bat Instruction Manual

EVERSON 2
72” x 42” Drop-In
Acrylic Air Bath
Model Number
4272ETA064
Drop-In Air Bath in White

Features

• 20 high output later air jets
• Color-matched trim
• 12 Amp variable speed blower
• Pillow included
• Constructed of high-gloss durable acrylic
• Automatic purge cycle with timer
• Radiant Heat & Heater available
• Mood lights & Music system available
• Pre-leveled base for easy installation
• Made in the USA

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

Technical Information

• Cut-Out Dimensions: 70” x 40”
• Weight: 155 lbs.
• Water Depth to Overflow: 14 3/4”
• Water Operating Level: NA
• Water Capacity: 75 gal.
• Sump Dimension: 49” x 27”

Electrical Requirements.

• Standard Blower: 12 Amps
• (Optional) LM305 Heater: 12.5 Amps
• Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic

Accessories

Design / Construction

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
