Laurel Mountain LOGOEVERSON 2
72” x 42” Drop-In
Acrylic Combo Bath
Model Number
4272EWA064
Drop-In Combo Bath in WhiteLaurel Mountain 4272EWA528 Everson 2 42 in W 72 in L Biscuit Acrylic Oval

Features

  • Color-matched jet trim and air controls
  • 10 adjustable hydrotherapy jets
  • 20 high output lateral air jets
  • Pillow included
  • Constructed of high-gloss durable acrylic
  • 3-Speed control for the 13.5 Amp pump
  • 12.0 Amp variable speed blower
  • Inline heater available – LM300
  • Mood light available – LM522
  • Pre-leveled base for easy installation
  • Made in the USA

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

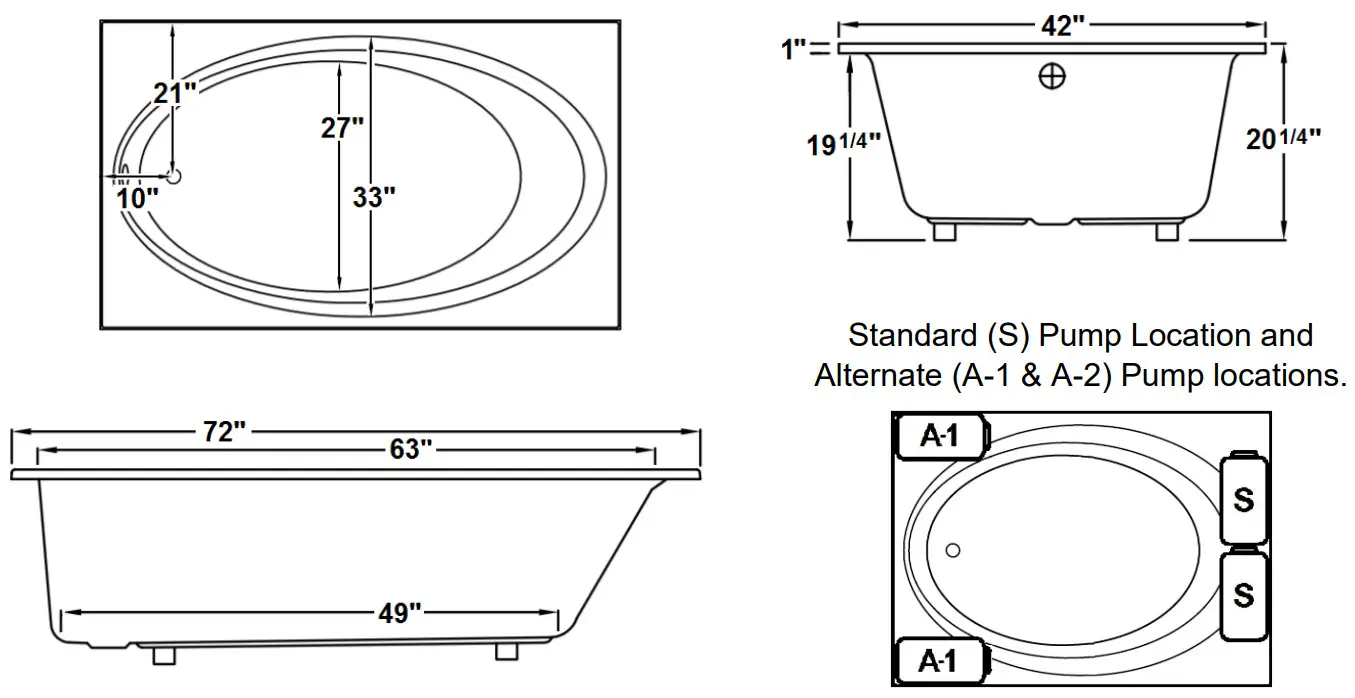

Laurel Mountain 4272EWA528 Everson 2 42 in W 72 in L Biscuit Acrylic Oval - FIGURETechnical Information

  • Cut-Out Dimensions: 70” x 40”
  • Weight: 180 lbs.
  • Water Depth to Overflow: 14 3/4”
  • Water Capacity: 75 gal.
  • Sump Dimension: 49” x 27”

Electrical Requirements.

  • Standard Pump: 13.5 Amps
  • Standard Blower: 12 Amps
  • (Optional) LM300 Heater: 12 Amps
  • Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic

LM300  Inline HeaterLM320  Silent Pump & Heater
LM522  Chromatherapy Mood LightLM525  Wāv Music. Vibe. Lights

Accessories

WHIRLPOOL TRIM KITS   CABLE OPERATED DRAINS 8” GRAB BARS
LM101  ChromeLM200  ChromeLM230  White
LM102  Brushed Nickel LM201  Brushed NickelLM231  Biscuit
LM103  Bronze LM202  Bronze
LM210  WhiteLM335 Ozonator
LM211  Biscuit(Sanitizing System)

Design / Construction

LM542  Plastic FlangeLM545  A-1 Pump Loc

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
