DUAL CORNER PLUS
60” x 60” Drop-In
Acrylic Combo
Model Number
6060DPWAR064
Right Hand Drain Combo in White
6060DPWAL064
Left Hand Drain Combo in White
Features
- Color-matched jet trim
- 10 adjustable hydrotherapy jets
- 28 high output lateral air injectors
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 13.5 Amp pump
- 12.0 Amp variable speed blower
- Inline heater available – LM300
- Mood light available – LM522
- Pre-leveled base for easy installation
- Made in the USA

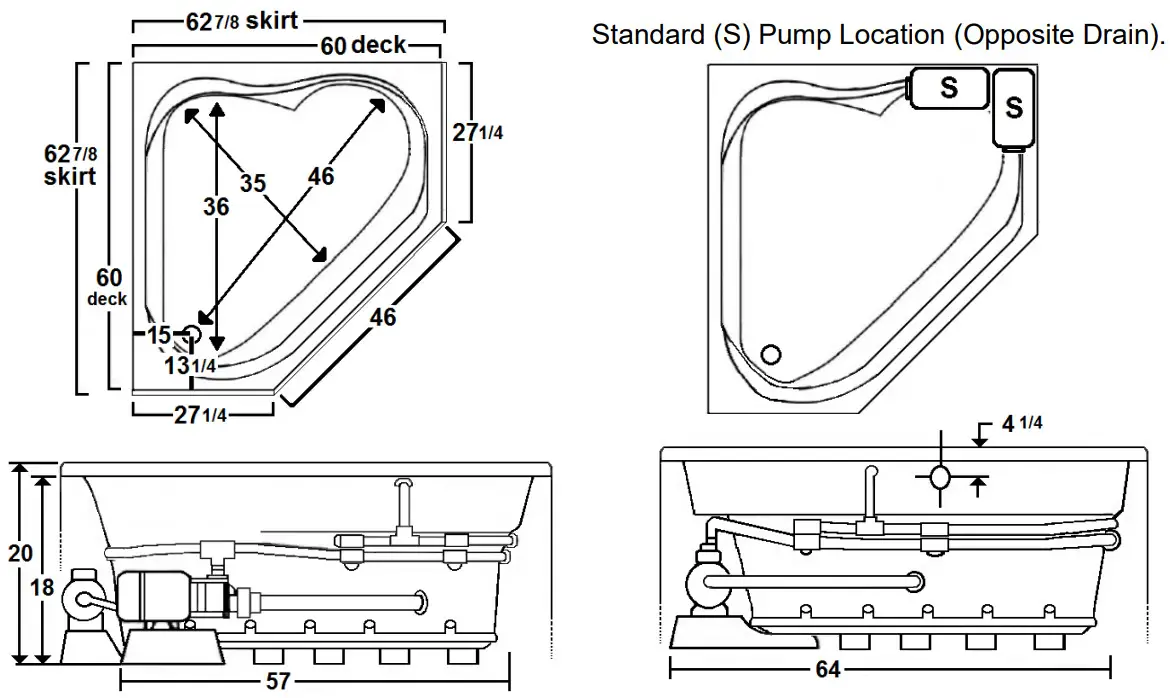

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Weight: 215 lbs.
- Water Depth to Overflow: 13 3/4”
- Water Operating Level: 48 gal.
- Water Capacity: 78 gal.
- Sump Dimension: 46” x 35”
*Cut-Out Dimensions: Use the outer dimensions shown above and come in 1” on all sides.
Electrical Requirements.
- Standard Pump: 13.5 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| LM300 Inline Heater | LM320 Silent Pump |
| LM522 Chromatherapy | LM525 Wāv Music. Vibe. Lights |
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | 8” GRAB BARS |
| LM101 Chrome | LM200 Chrome | LM230 White |
| LM102 Brushed Nickel | LM201 Brushed Nickel | LM231 Biscuit |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | LM335 Ozonator | |
| LM211 Biscuit | (Sanitizing System) |
Design / Construction
LM542 Attachable Flange
LM544 Integral Flange
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
