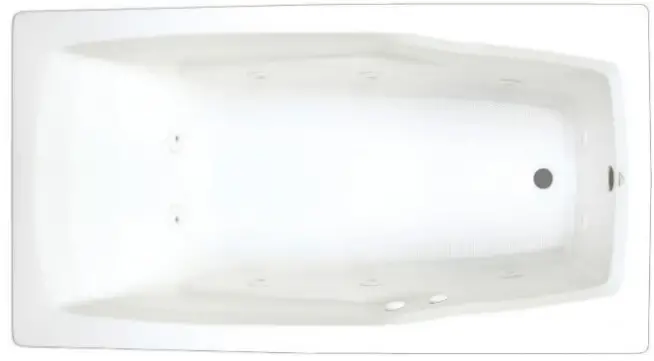

6030RW528 Laurel Mountain Reston 30-in W x 60-in L White Acrylic Rectangular Instruction Manual
Features
- Color-matched jet trim included
- 10 Self draining, adjustable hydrotherapy jets
- 3-Speed control for the 9 Amp pump
- Constructed of high-gloss durable acrylic
- Pre-leveled base for easy installation
- Radiant Heat & Inline Heater available
- Mood lights & Music system available
- Silent Pump upgrade available
- Made in the USA

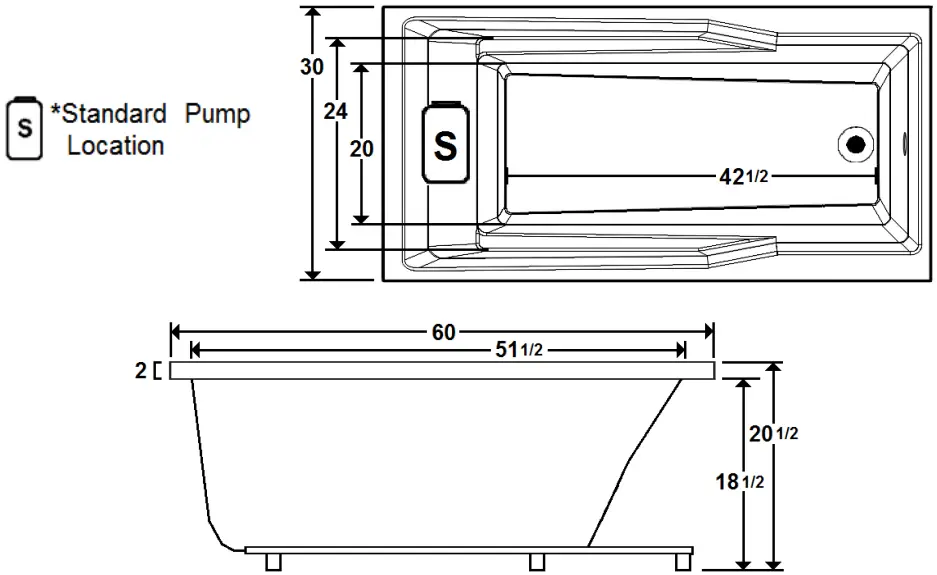

Dimensions
*All dimensions are +/- 1/2” and subject to change without notice*
Technical Information
- Weight: 105 lbs.
- Water Depth to Overflow: 12 1/8”
- Water Operating Level: 30 gal.
- Water Capacity: 55 gal.
- Sump Dimension: 42 1/2” x 20”
Electrical Requirements
- Standard Pump: 9 Amps
- (Optional) LM300 Heater: 12 Amps
- (Optional) LM320 Silent Pump: 11 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
| HEATERS S (select one) | |
| LM300 | Inline Heater |
| LM320 | Whisper Flow Silent Pump & Heater |
| LM103 Bronze | Warm Comfort Radiant Heat *can be ordered w/ the Inline Heater or Silent Pump |
| OTHER THERAPIES (select one) | |
| LM522 | Chroma therapy Mood Light |
| LM525 | Wāv Music. Vibe. Lights |
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | 8” GRAB BARS |
| LM101 Chrome | LM200 Chrome | LM230 White |
| LM102 Brushed Nickel | LM201 Brushed Nickel | LM231 Biscuit |
| M103 Bronze | LM202 Bronze | |
| LM210 White | LM335 Ozonator | |
| LM211 Biscuit | (Sanitizing System) |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
CUSTOMER SUPPORT
Laurel Mountain Customer Service: 1-800-930-0050
