Laurel - logoLorton 60 X 60 Inch Drop In Acrylic Corner Combo Bath
Instruction Manual

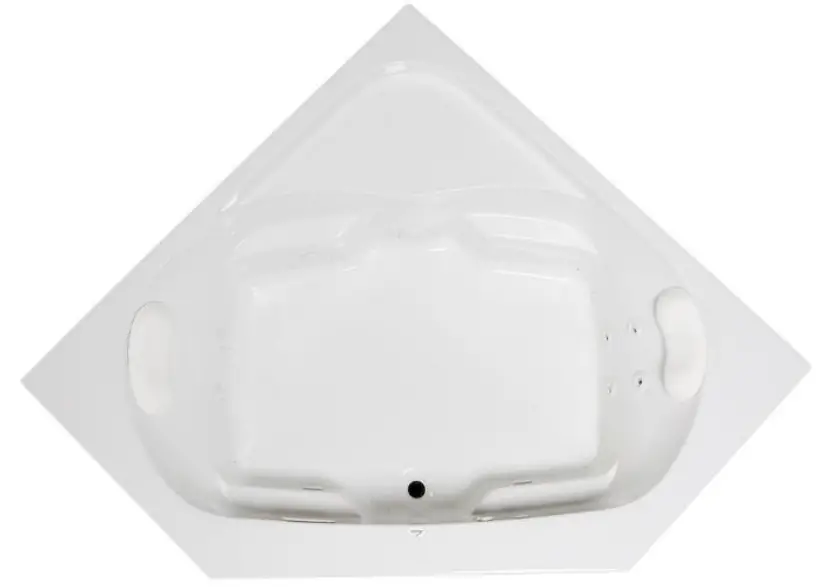

Lorton 60 X 60 Inch Drop In Acrylic Corner Combo Bath

Features

  • Color-matched jet trim and air controls
  • 10 adjustable hydrotherapy jets
  • 20 high output lateral air jets
  • Pillows included
  • Constructed of high-gloss durable acrylic
  • 3-Speed control for the 13.5 Amp pump
  • 12.0 Amp variable speed blower
  • Inline heater available – LM300
  • Mood light available – LM522
  • Pre-leveled base for easy installation
  • Made in the USA

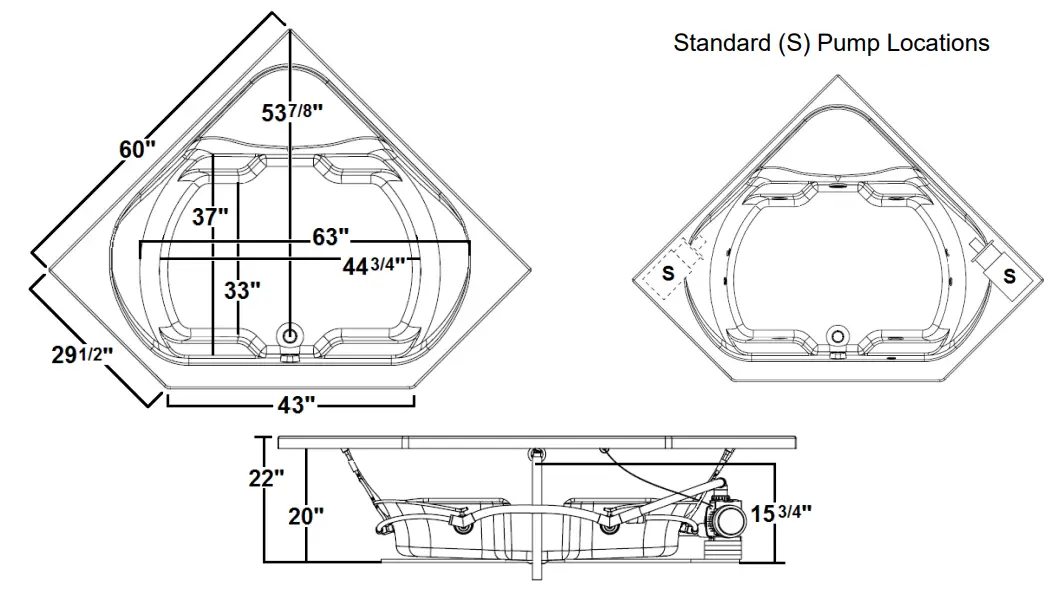

Laurel Mountain Lorton 60 X 60 Inch Drop In Acrylic Corner Combo Bath*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Laurel Mountain Lorton 60 X 60 Inch Drop In Acrylic Corner Combo Bath - figTechnical Information

  • Weight: 196 lbs.
  • Water Depth to Overflow: 15 3/4”
  • Operating Capacity: 50 gal.
  • Water Capacity: 90 gal.
  • Sump Dimension: 44 3/4” x 33”

Electrical Requirements.

  • Standard Pump: 13.5 Amps
  • Standard Blower: 12 Amps
  • (Optional) LM300 Heater: 12 Amps
  • Dedicated GFCI’s required for each option

AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic

LM300  Inline Heater LM320  Silent Pump
LM500  Lumbar Jets LM522  Chromatherapy
LM525  Wāv Music. Vibe. Lights

Accessories

WHIRLPOOL TRIM KITS CABLE OPERATED DRAINS     LM335  Ozonator
LM101  ChromeLM200  Chrome  (Sanitizing System)
LM102  Brushed NickelLM201  Brushed Nickel
LM103  BronzeLM202  Bronze
LM210  White
LM211  Biscuit

Design / Construction

LM542  Plastic FlangeLM44  Int. Corner FlangeLM545  A-1 Pump Loc

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.

Laurel Mountain Customer Service: 1-800-930-0050
