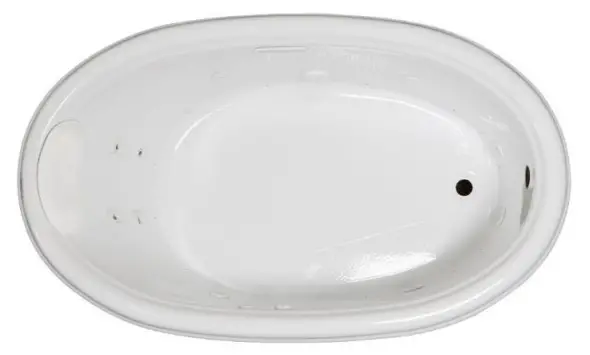

JARRETT 60 X 36 Inch Drop In Acrylic Combo Bath
Instruction Manual
JARRETT 60 X 36 Inch Drop In Acrylic Combo Bath
Features
- Color-matched jet trim and air controls
- 10 adjustable hydrotherapy jets
- 24 high output lateral air injectors
- Pillow included
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 13.5 Amp pump
- 12.0 Amp variable speed blower
- Inline heater available – LM300
- Mood light available – LM522
- Pre-leveled base for easy installation
- Made in the USA

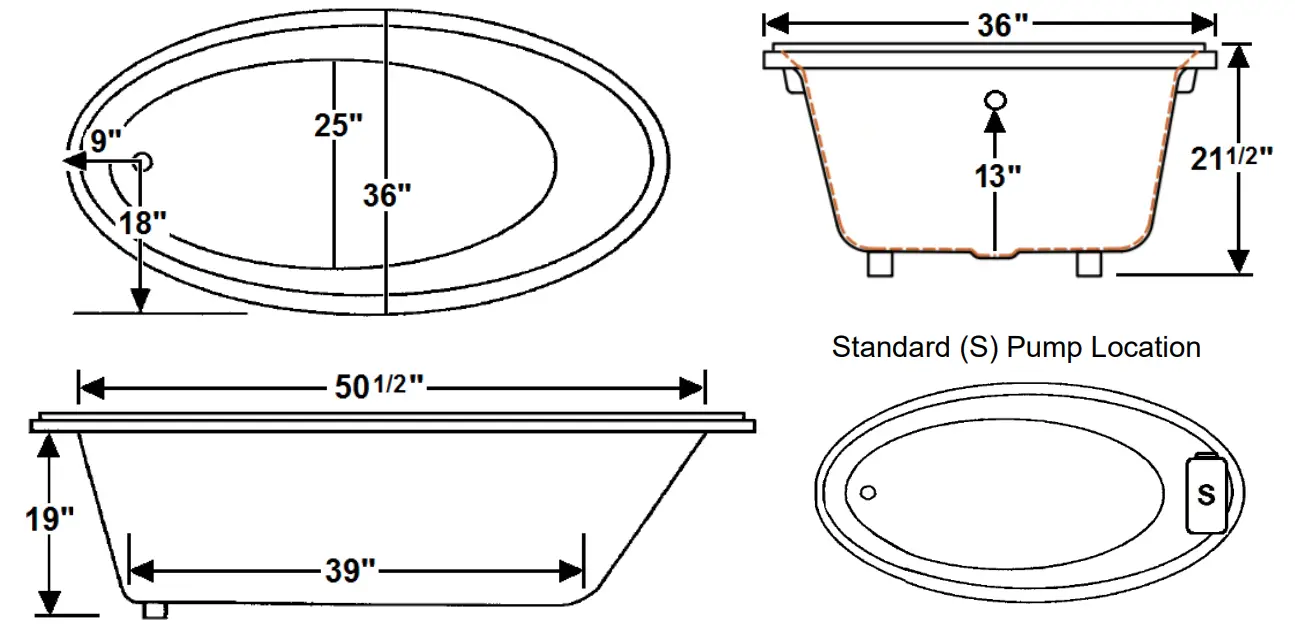

*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation
Technical Information
- Weight: 163 lbs.
- Water Depth to Overflow: 13”
- Operating Capacity: 33 gal.
- Water Capacity: 50 gal.
- Sump Dimension: 39” x 25”
Electrical Requirements.
- Standard Pump: 13.5 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
HEATERS (select one)
LM300 Inline Heater
LM320 Whisper Flow Silent Pump & Heater
OTHER THERAPIES (select one)
LM522 Chromatherapy Mood Light
LM525 Wāv Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | LM335 Ozonator |
| LM101 Chrome | LM200 Chrome | (Sanitizing System) |
| LM102 Brushed Nickel | LM201 Brushed Nickel | |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | ||
| LM211 Biscuit |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
