Laurel Mountain Parker 9 72 X 42 Inch Drop-in Acrylic Air Bath Instruction Manual

Laurel Mountain PARKER 9 72 X 42 Inch Drop-In Acrylic Air Bath

Model Number
7242PA064

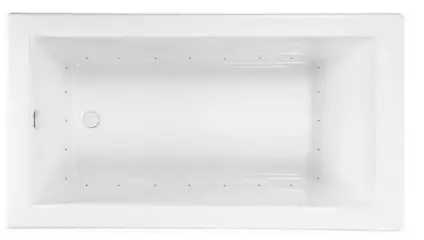

Drop-In Air Bath in White

Features

• 20 high output lateral air jets
• 10.5 Amp blower / heater
• Variable speed blower with automatic purge
• Includes Wave & Pulse modes
• Includes Chromatherapy
• Constructed of high-gloss durable acrylic
• Deep bathing well
• Transitional / Modern design
• Limited lifetime warranty
• Can be installed as an undermount
• Made in the USA

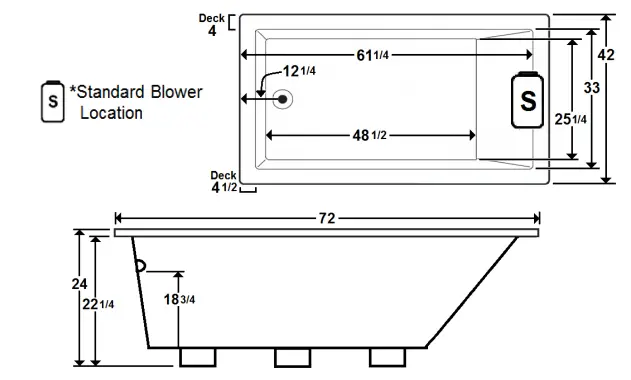

*All dimensions are +/- 1/2” and subject to change without notice*

Technical Information

• Weight: 265 lbs.
• Water Depth to Overflow: 18 3/4”
• Water Capacity: 114 gal.
• Sump Dimension: 48 1/2” x 25 1/4”

Electrical Requirements

• Standard Blower: 10.5 Amps (120V)
• Dedicated GFCI required

PARKER 9

AVAILABLE OPTIONS & UPGRADES

For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.

Therapeutic
LM300 Inline Heater LM320 Silent Pump
LM525 Music. Lights. Vibe

Accessories

INSTALLATION

Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
