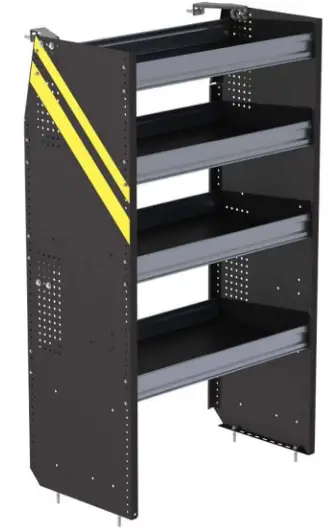

RANGER DESIGN N5-DS36-4 Shelving Unit
REQUIRED ITEMS
- Cordless Impact
- Cordless Drill
- Tape Measure
- Marker
- 1/2″ Socket
- 1/2″ Step Bit
- 3/8″ Driver Bit
- Knife
- Plusnut Tool / Plusnut Gun ( 5/16″ )
ASSEMBLY
Unpack components; compare with the bill of materials.
Verify all parts are present

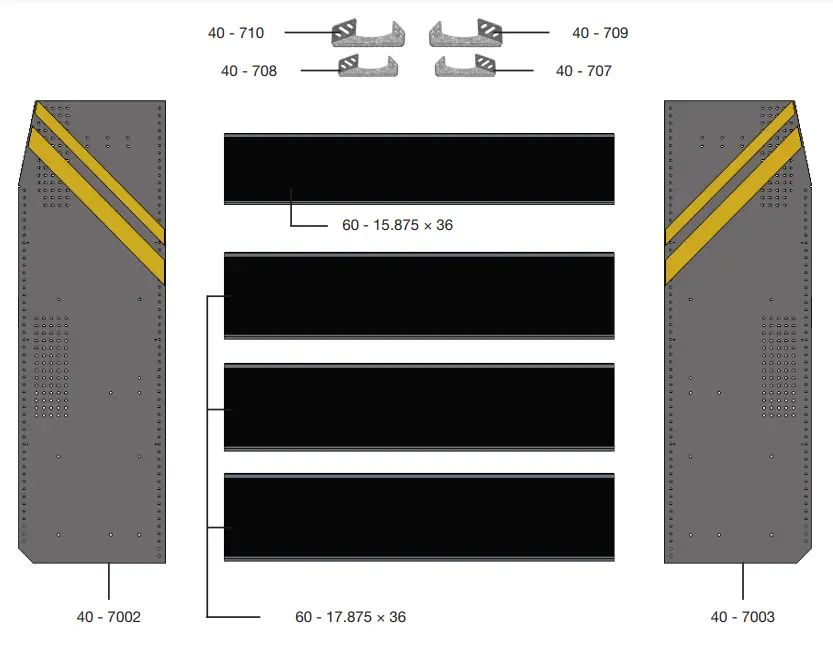

BILL OF MATERIALS
| Item No. | Description | Qty. |
| 40 – 707 | Short Corner Bracket ( Left ) | 1 |
| 40 – 708 | Short Corner Bracket ( Right ) | 1 |
| 40 – 709 | Long Corner Bracket ( Left ) | 1 |
| 40 – 710 | Long Corner Bracket ( Right ) | 1 |
| 40 – 7002 | End Panel ( Left ) | 1 |
| 40 – 7003 | End Panel ( Right ) | 1 |
| 60 – 15.875 × 36 | Shelf Tray, Black Plywood, Usable 16″ × 36″ | 1 |
| 60 – 17.875 × 36 | Shelf Tray, Black Plywood, Usable 18″ × 36″ | 3 |
| 94 – 4025 | Assembly Fastener Kit | 1 |
| 96 – 4025 | Install Fastener Kit | 1 |

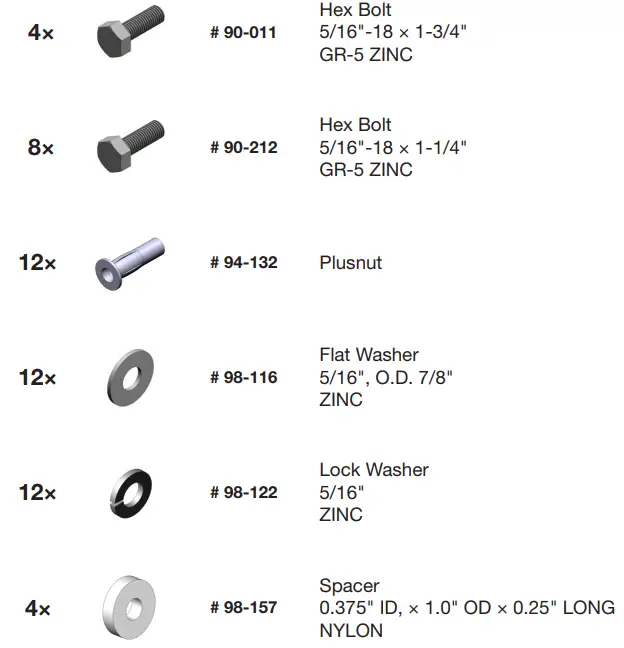

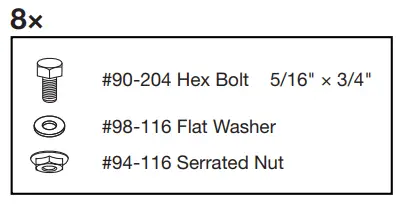

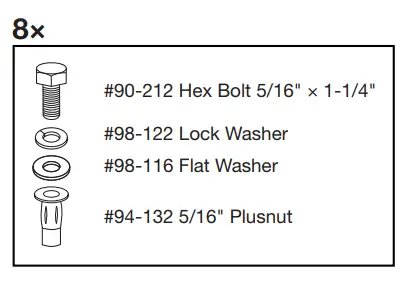

Fastener kits.
ASSEMBLY
SHELF ASSEMBLY

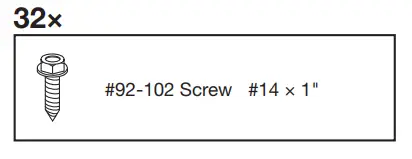

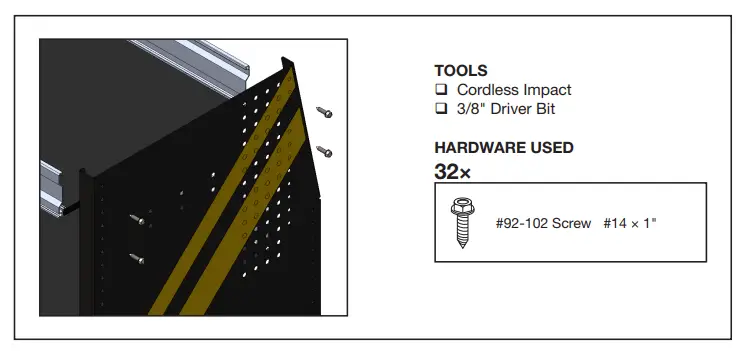

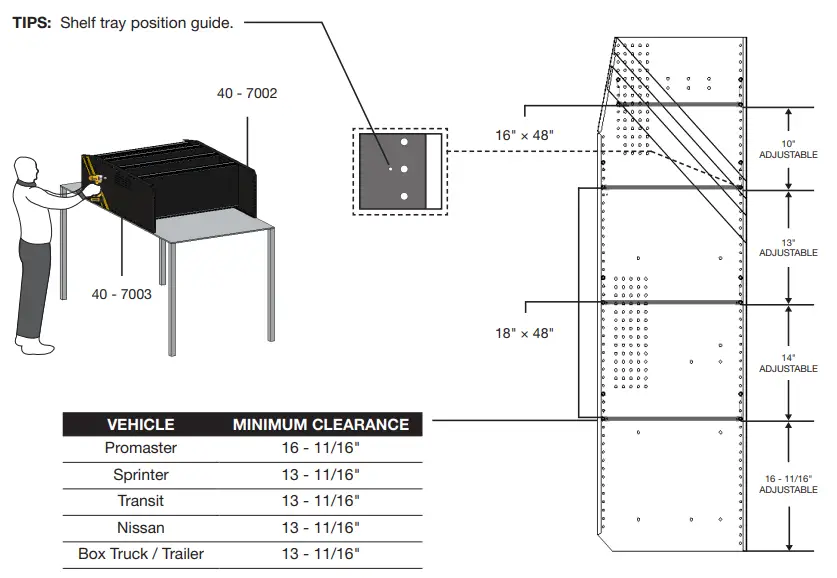

Attach both panels to the shelf trays.
NOTE: You can adjust the bottom shelf location to maximize or minimize your space over the wheel.
IMPORTANT: Always handle panels on a smooth, protected and clean surface to avoid unnecessary scratching.
ATTACH WALL BRACKETS TO THE END PANELS
IMPORTANT: For all Box Trucks, make sure that the shelving is securely fastened to the structure of the truck.

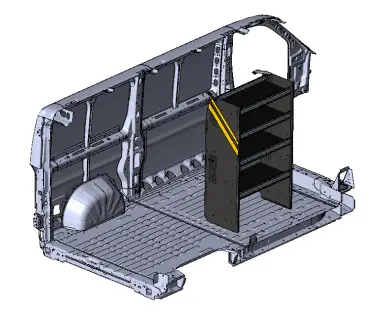

- Lift the assembled shelf to the vehicle, then put it in place.

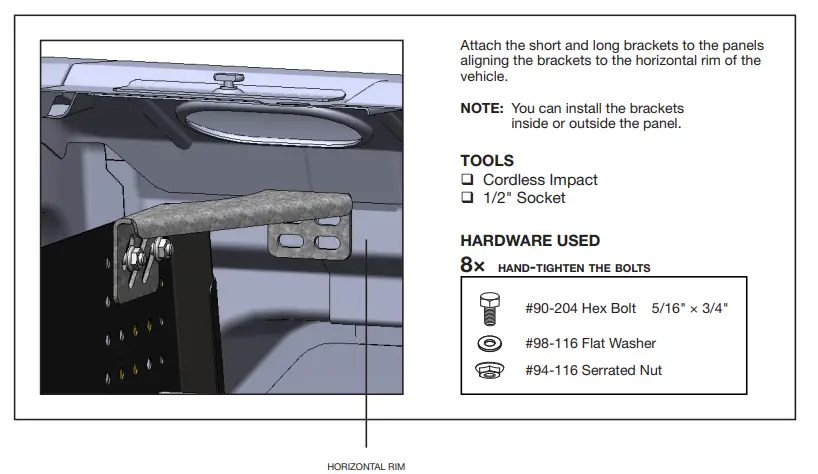

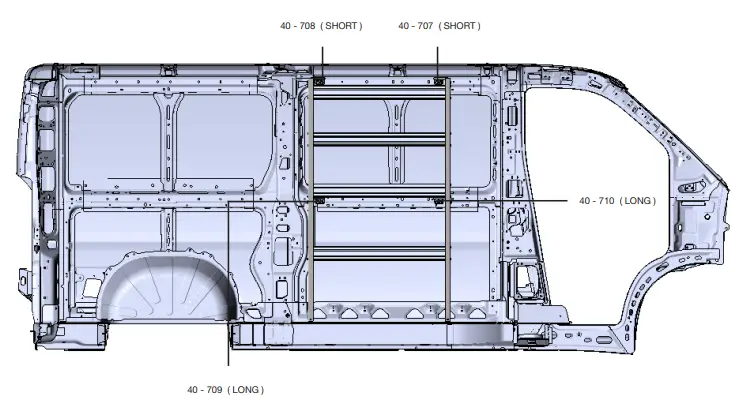

- Attach the short and long brackets to the panels aligning the brackets to the horizontal rim of the vehicle.
- NOTE: Handle with care.

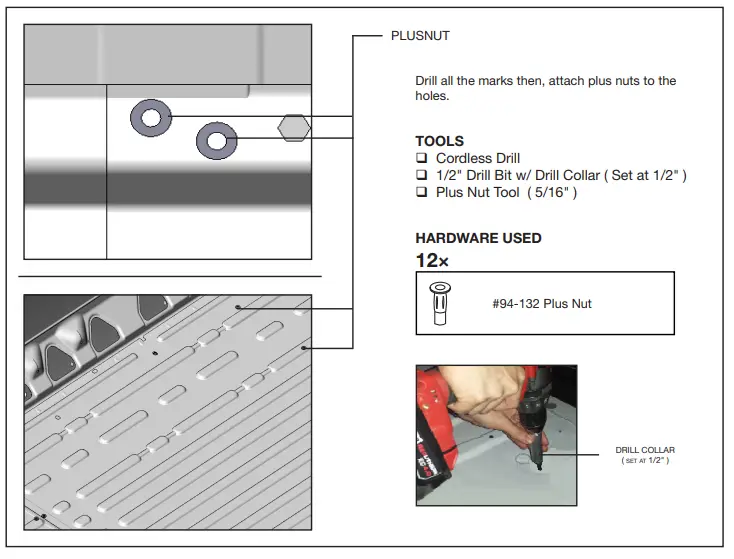

ATTACH PLUS NUTS
WARNING: Before drilling, ensure that you will not hit any critical parts of the vehicle like the Gas tank,
Wiring Harness and Hose.
NOTE: Use 1/2″ drill bit with drill collar to stop drill at 1/2″ depth.
- Lift the assembled shelf on the side.
- Drill all the marks using 1/2″ drill bit w/ drill collar, then attach plus nuts to the holes
How to attach plus nut
using plusnut gun

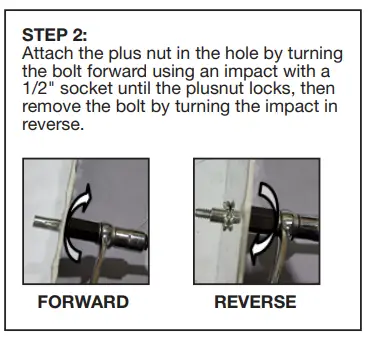

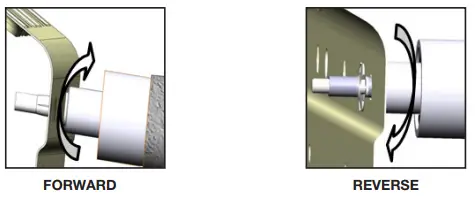

STEP: Put the plusnut on the plusnut gun, then attach the plus nut in the hole by turning the gun forward until the plus nut locks, then remove the gun by turning in reverse.

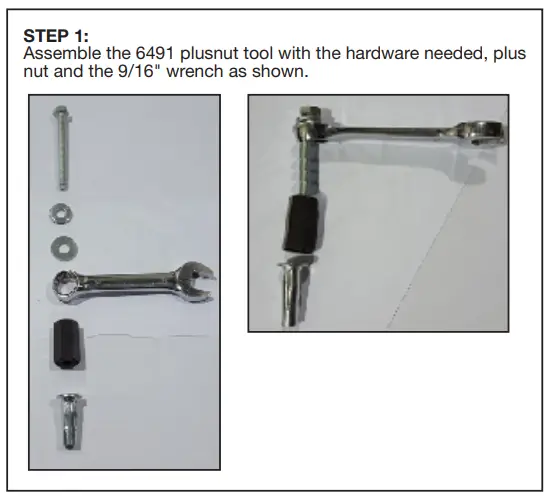

using the 6491 plusnut tool
NOTE: The hardware used for the 6490 plusnut tool is not included in the fastener bag.
The 6490 plusnut tool can be ordered separately upon demand at no charge

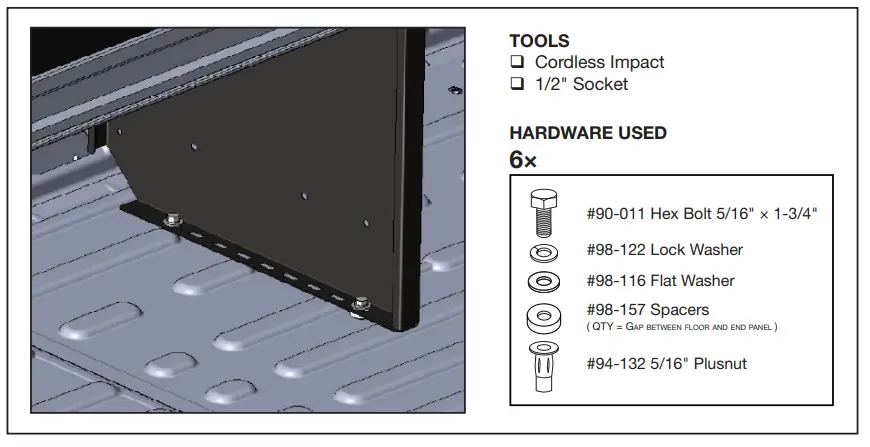

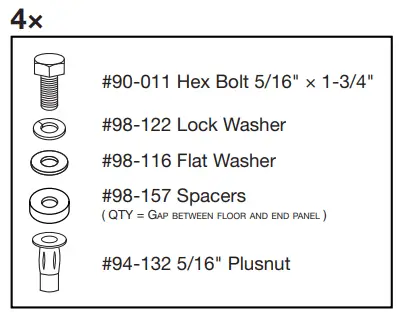

ATTACH SHELF UNIT TO THE FLOOR
without ranger floor

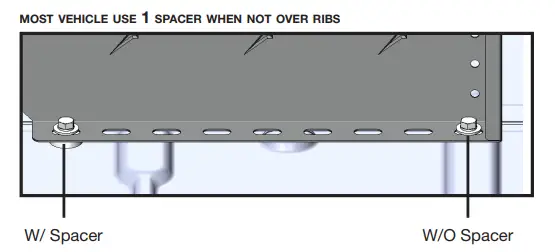

Put the assembled shelf back in place aligning the holes to the plusnuts, then install the end panels to the plus nuts.

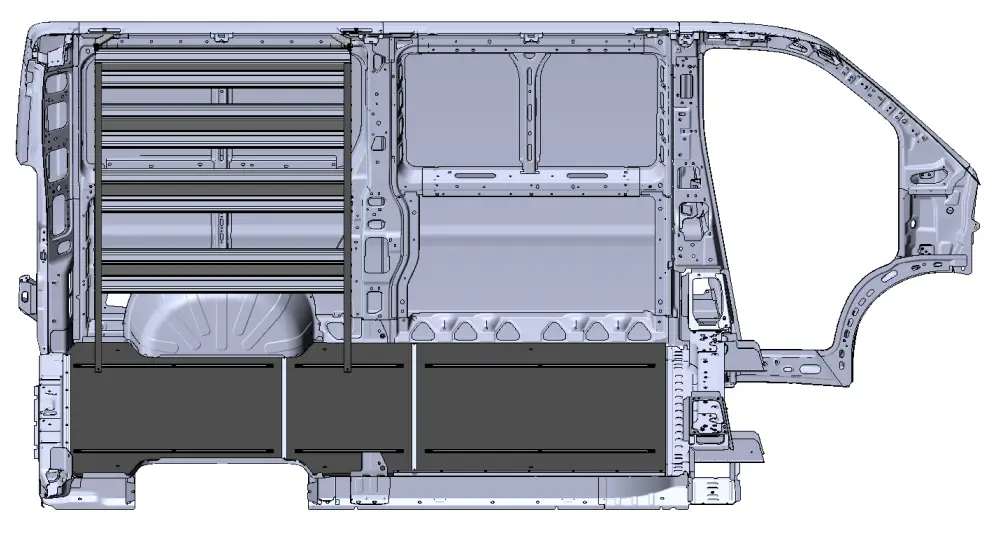

with ranger floor
- Lift the shelving unit inside the van, then put it in place.

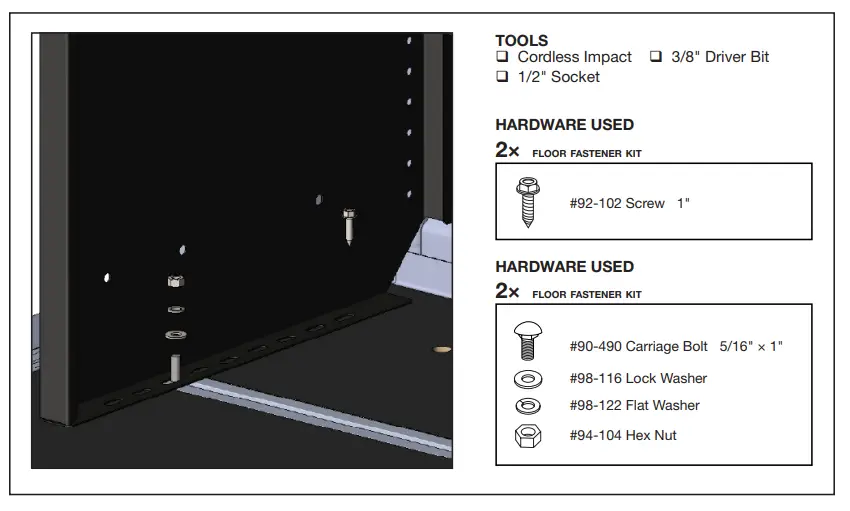

- Install the shelving unit to the floor mounting track by sliding bolts in the mounting tracks, and putting screw in the last rear slot of the end panels of the shelving unit

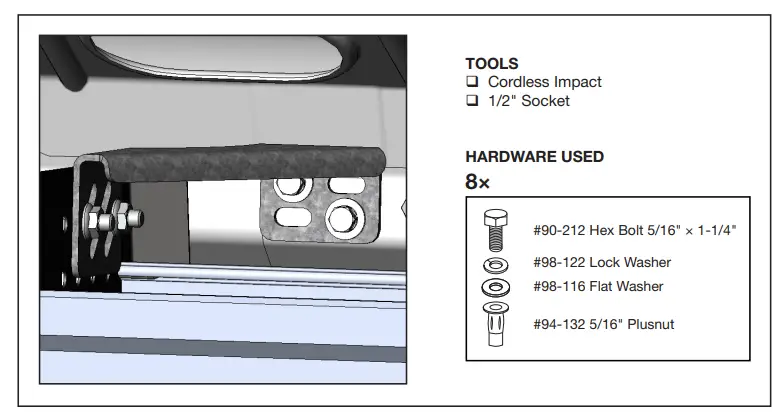

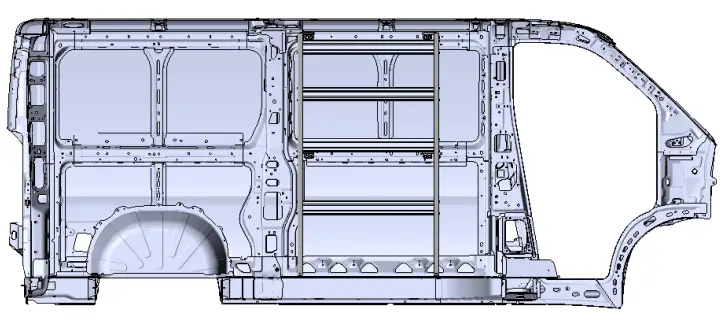

ATTACH WALL BRACKETS
without ranger wall kits
Aligned the wall brackets to the plus nuts, then install the wall brackets to the wall.
NOTE: Tightened the bolts that used to attached the wall bracket to the wall or wall kits 1st before the bolts that used to attached the wall bracket to the end panel.
IMPORTANT: After installation is completed, ensure all bolts are tightened

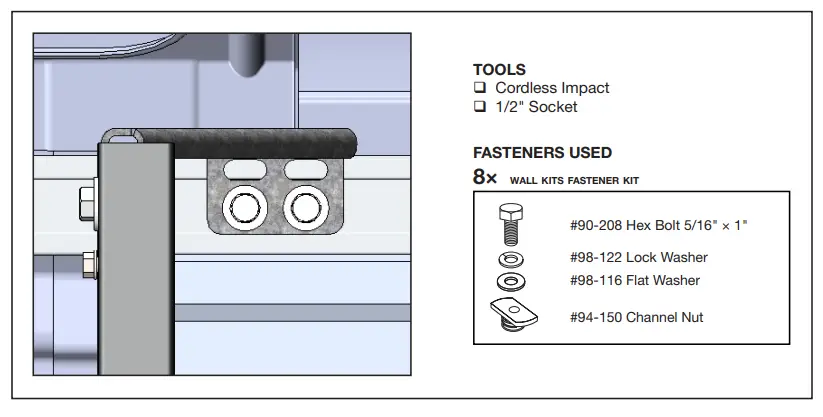

with ranger wall kits
Aligned the wall brackets to the wall mounting track kits, then install the wall brackets to the wall mounting track kits using channel nuts.
IMPORTANT: After installation is completed, ensure all bolts are tightened.
NOTE: Tightened the bolts that used to attached the wall bracket to the wall or wall kits 1st before the bolts that used to attached the wall bracket to the end panel

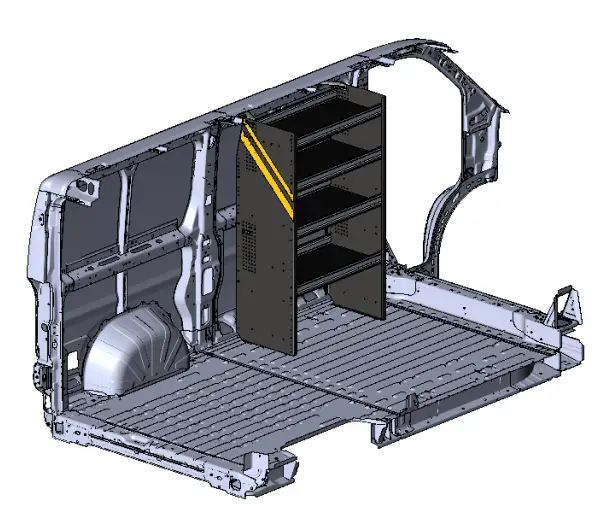

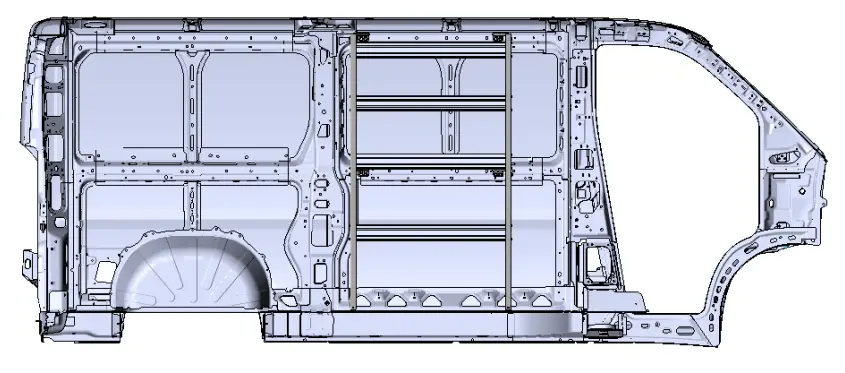

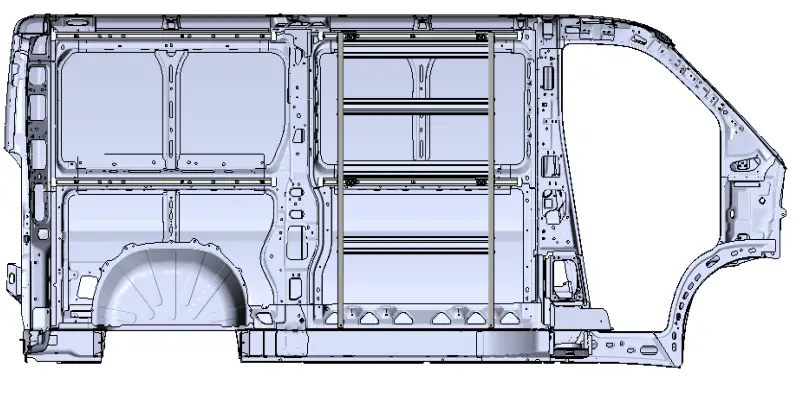

“You have successfully installed your
N5-DS36-4
Thank you for doing business with us.”
For any feedback or suggestions you may have, please contact: [email protected]
For technical support, contact us at 1-800-565-5321
