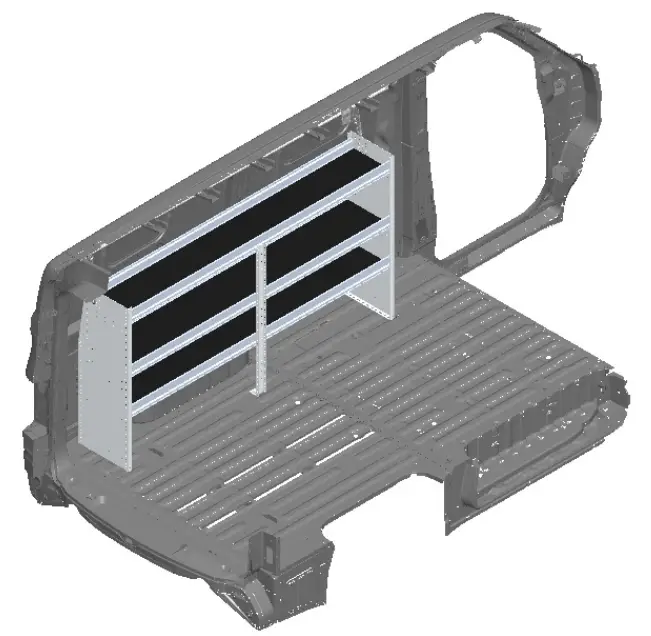

Ranger Design N4-ra84-3 Shelving Installation Guide

INSTALLATION GUIDEN4-RA84-3 Shelving ( aluminum )
Transit Low Roof
Nissan NV Low Roof GM Savana

Phase 1 – Assembly

• 1.1 Setup………………………………………………………
• 1.2 Shelf Assembly……………………………………….

Phase 2 – Installation

• 2.1 Attach Wall Brackets To The End Panels…………………………………..
• 2.2 Mark Holes For Plus Nuts………………………………….
• 2.3 Attach Plus Nut………………………………………………….
• 2.4 Attach Shelf Unit To the Floor……………………………
• 2.5 Attach Wall Brackets……………………………………………

REQUIRED ITEMS

• Cordless Impact
• Cordless Drill
• Tape Measure
• Marker
• 1/2″ Socket
• 1/2″ Drill Bit w/ Drill Collar ( Set at 1/2″ )
•  3/8″ Driver Bit
• Knife
• Plusnut Tool / Plusnut Gun ( 5/16″ )

PHASE 1 – ASSEMBLY

1.1 SETUP
1.1.1 Unpack components; compare with the bill of materials.

1.1.2 Verify all parts are present.
BILL OF MATERIALS

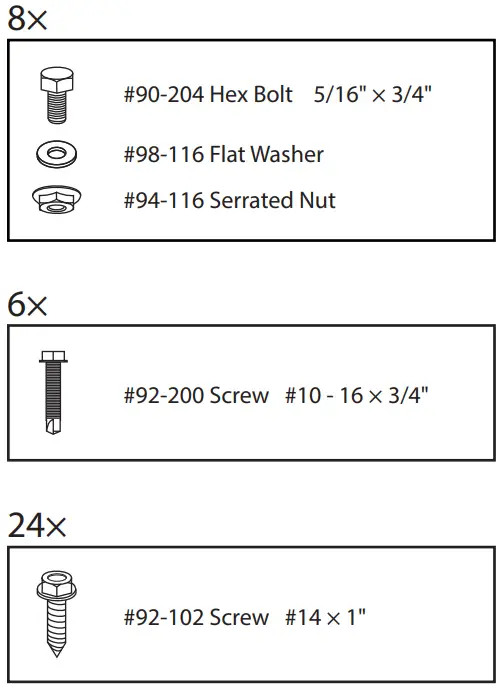

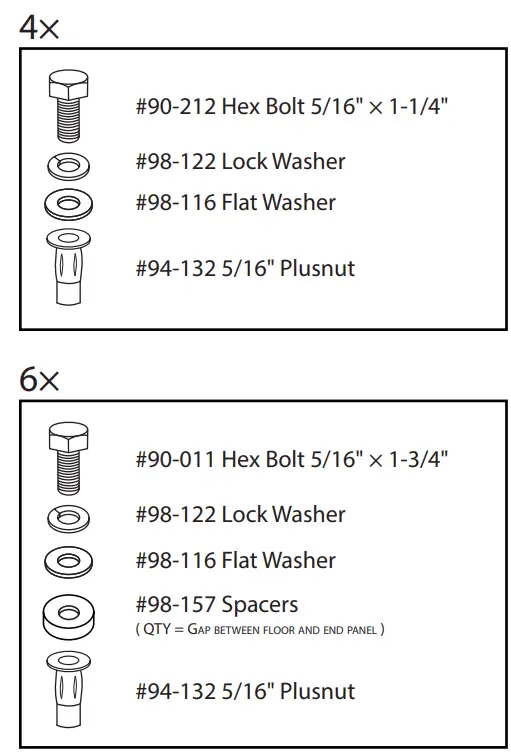

1.1.3Fastener kits.
94 – 4028 Fastener Kit
Fastener Assembly

8×8×		# 90-204	Hex Bolt 5/16″-18 × 3/4″ GR-5 ZINC
6×6×		# 92-200	Screw HFH #10 – 16 × 3/4″ ZINC
24×24×		# 92-102	Screw HWH #14 × 1″ ZINC
8×8×		# 94-116	Serrated Nut 5/16″-18 ZINC
8×8×		# 98-116	Flat Washer 5/16″ – 18 × 1″ ZINC
4×4×		# 90-212	Hex Bolt 5/16″-18 × 1-1/4″ GR-5 ZINC
6×6×		# 90-011	Hex Bolt 5/16″-18 × 1-3/4″
10×10×		# 94-132	Plusnet
10×10×		# 98-116	Flat Washer 5/16″, O.D. 7/8″ ZINC
10×10×		# 98-122	Lock Washer 5/16″ ZINC
6×6×		# 98-157	Spacer 0.375″ ID, × 1.0″ OD × 0.25″ LONG NYLON

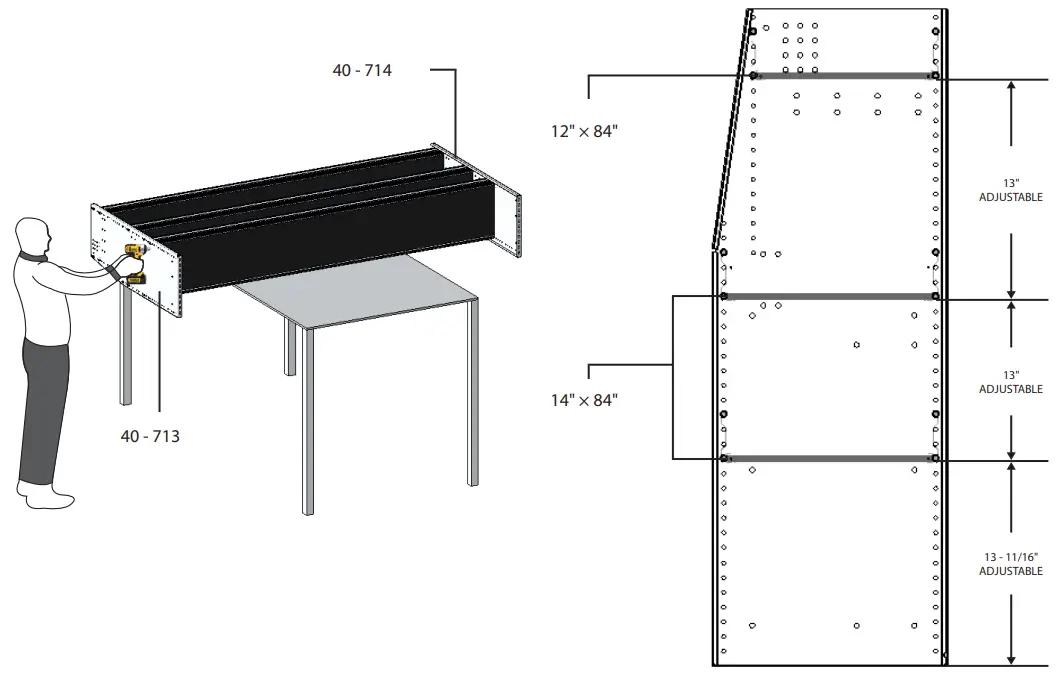

1.2 SHELF ASSEMBLY

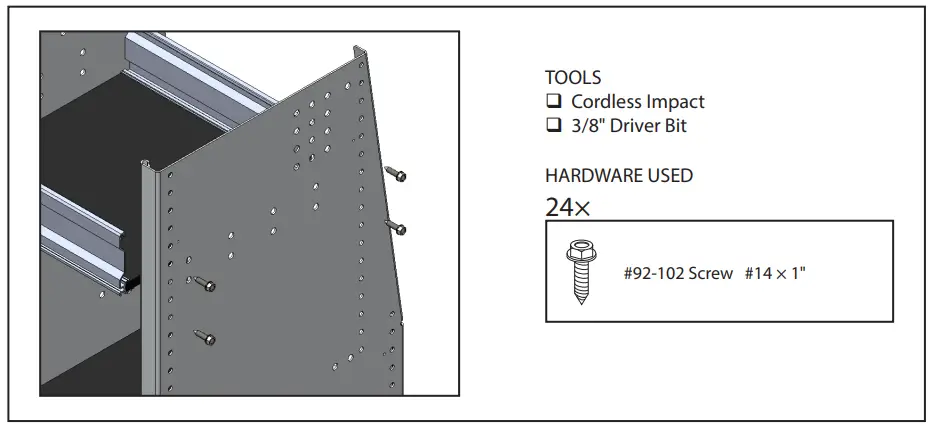

1.2.1 Attach both panels to the shelf trays.
NOTE: You can adjust the bottom shelf location to maximize or minimize your space over the wheel.
IMPORTANT: Always handle panels on a smooth, protected, and clean surface to avoid unnecessary scratching.

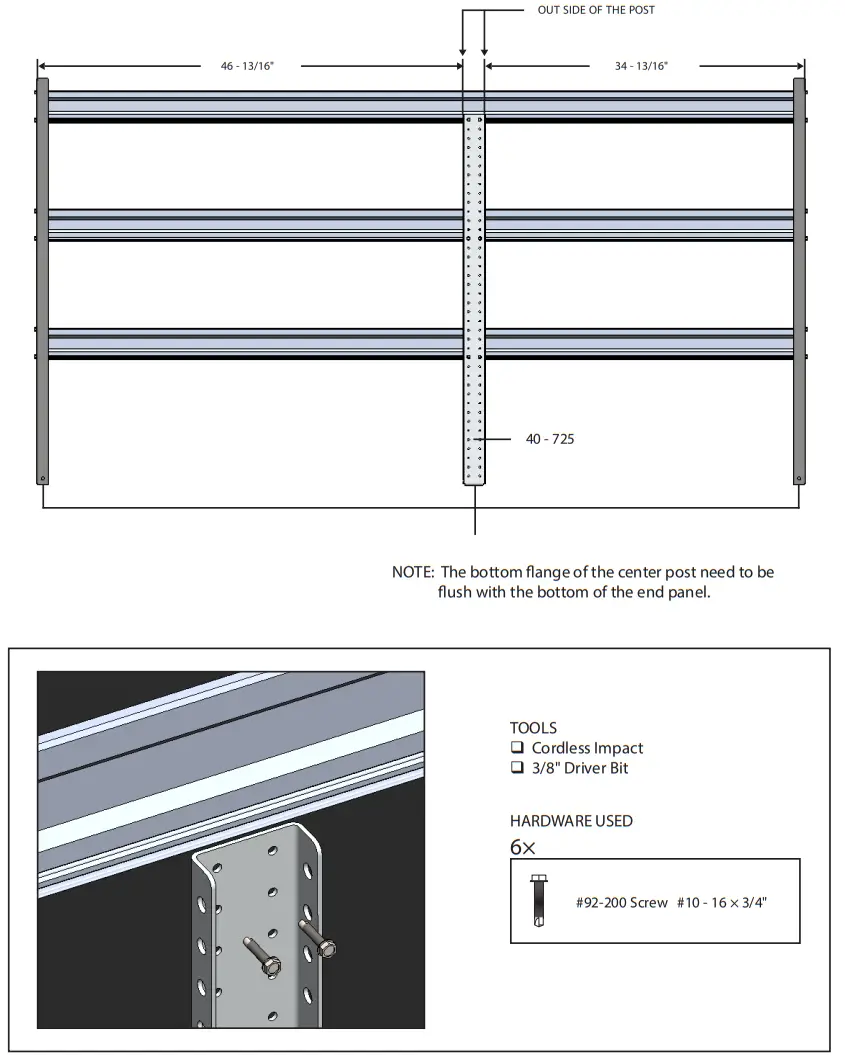

1.2.2 Attach the center post to the center front face of the shelf.

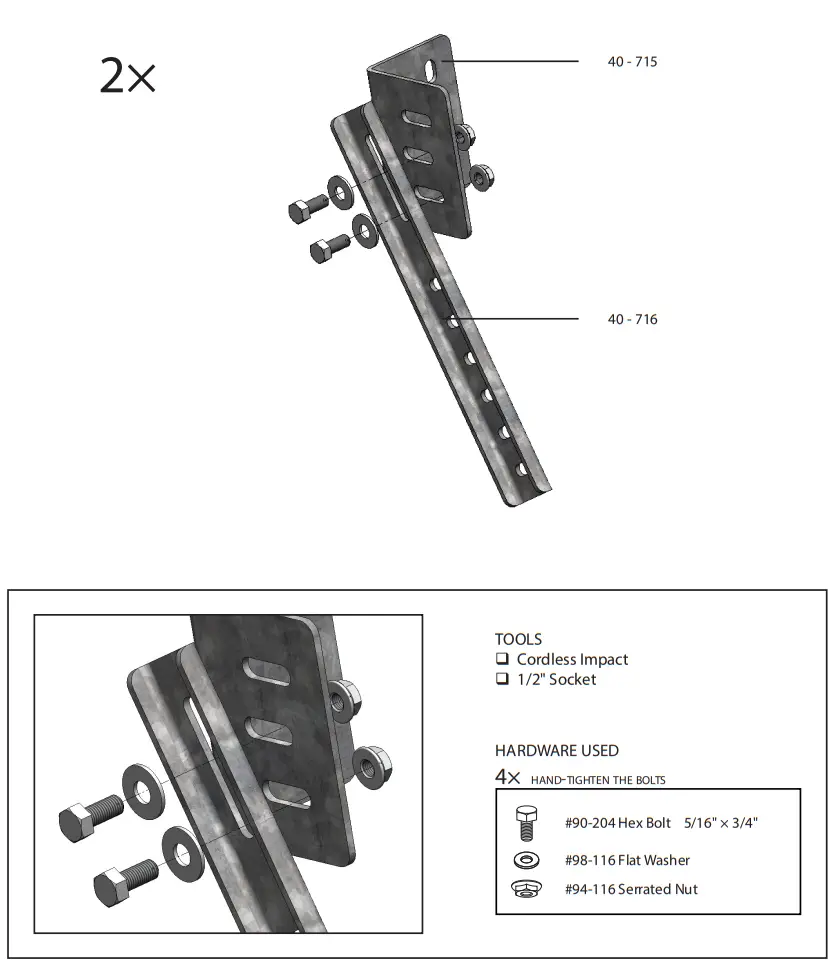

1.2.3 Attach the bracket head to the bracket arm.
NOTE: Hand-tighten the bolts for adjustment.

PHASE 2 – INSTALLATION

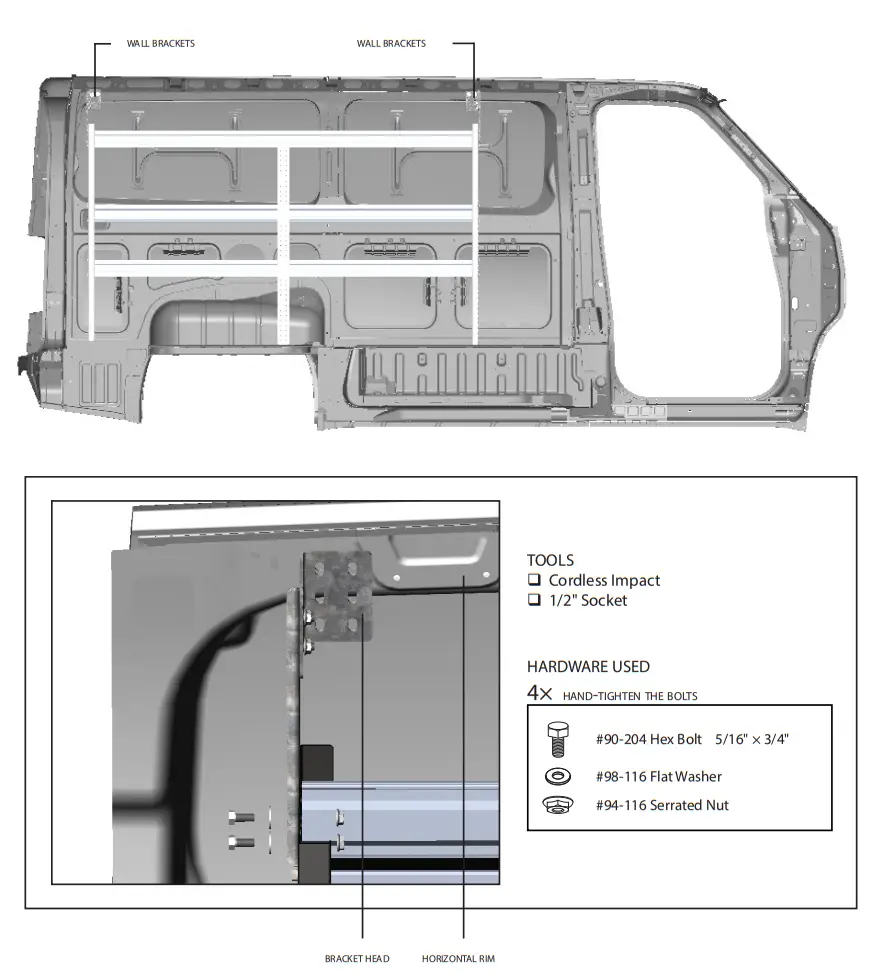

2.1 ATTACH WALL BRACKETS TO THE END PANELS
2.1.1 • Lift the assembled shelf to the vehicle, then put it in place.
• Attach the bracket arm to the panels aligning the bracket’s head to the horizontal rim of the vehicle.
NOTE: Handle with care.

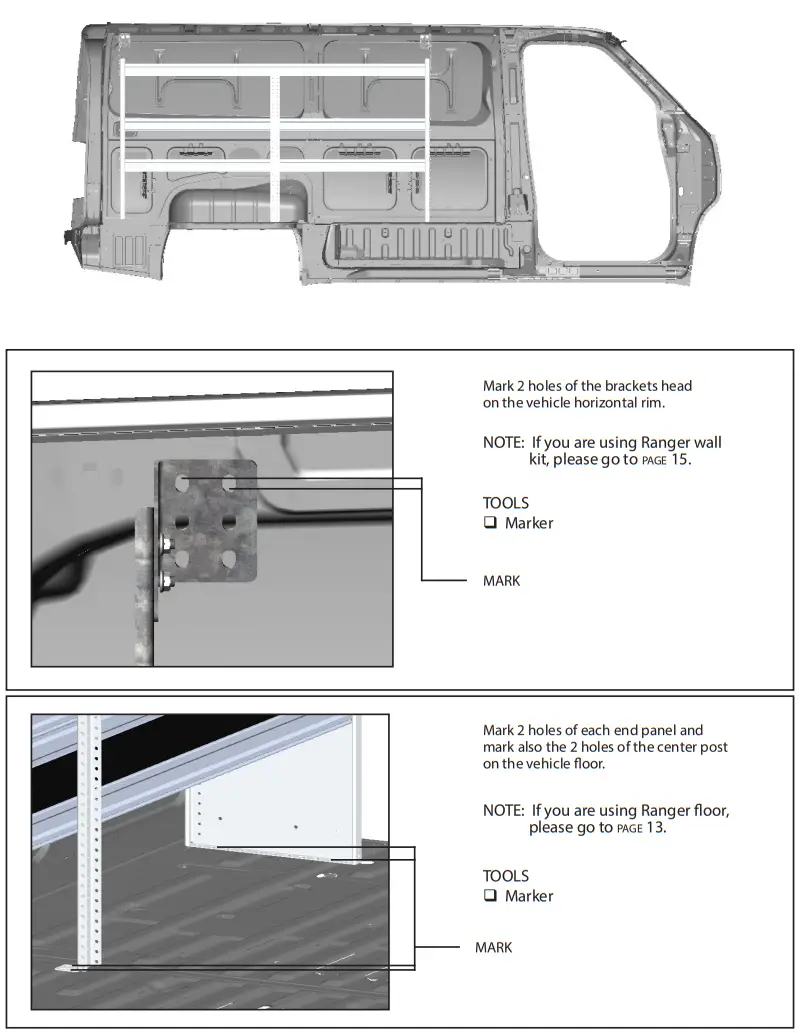

2.2 MARK HOLES FOR PLUS NUTS
2.2.1 After attaching the brackets mark the holes on the brackets, end panels and center post to the vehicle.

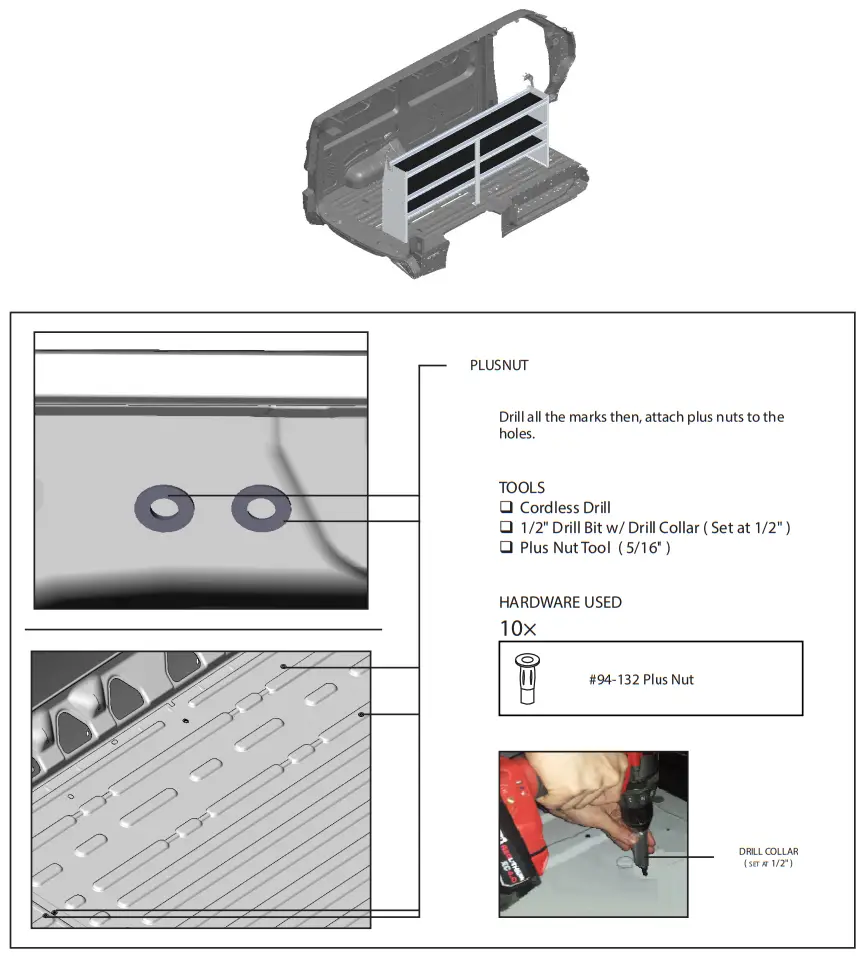

2.3 ATTACH PLUS NUTS
2.3.1 • Lift the assembled shelf on the side.
• Drill all the marks using 1/2″ drill bit w/ drill collar, then attach plus nuts to the holes.
NOTE: Use 1/2″ drill bit with drill collar to stop drill at 1/2″ depth.
WARNING: Before drilling, ensure that you will not hit any critical parts of the vehicle like the Gas tank, Wiring Harness and Hose.

2.3.2 How to attach plus nut.
• usinG plusnuT Gun

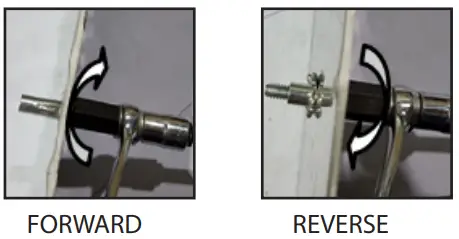

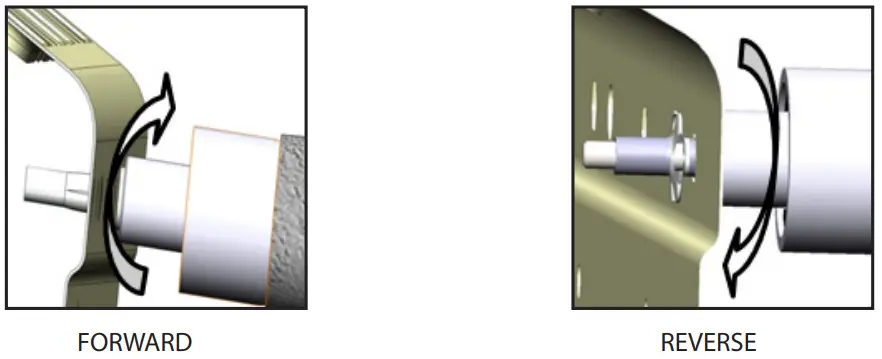

STEP: Put the plus nut on the Plusnet gun, then attach the plus nut in the hole by turning the gun forward until the plus nut locks, then remove the gun by turning in reverse.

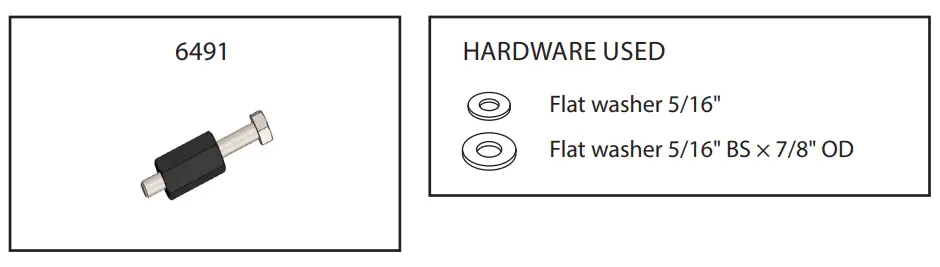

• usinG The 6491 Plusnet Tool
NOTE: The hardware used for the 6490 plus nut tools is not included in the fastener bag.
The 6490 plus nut tool can be ordered separately upon demand at no charge.

TOOLS

• Cordless Impact
• 1/2″ Socket
• 9/16″ Wrench

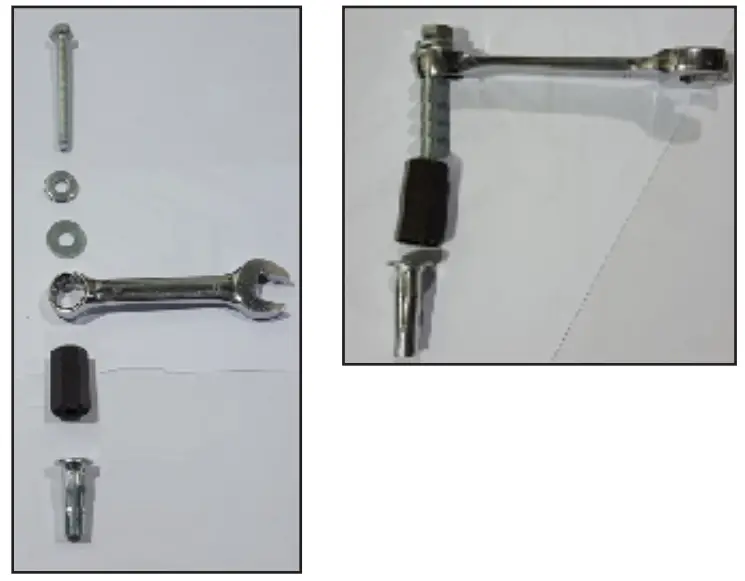

STEP 1: Assemble the 6491 plus nut tools with the hardware needed, plus nut and the 9/16″ wrench as shown.	STEP 2: Attach the plus nut in the hole by turning the bolt forward using an impact with a 1/2″ socket until the plus nut locks, then remove the bolt by turning the impact in reverse.

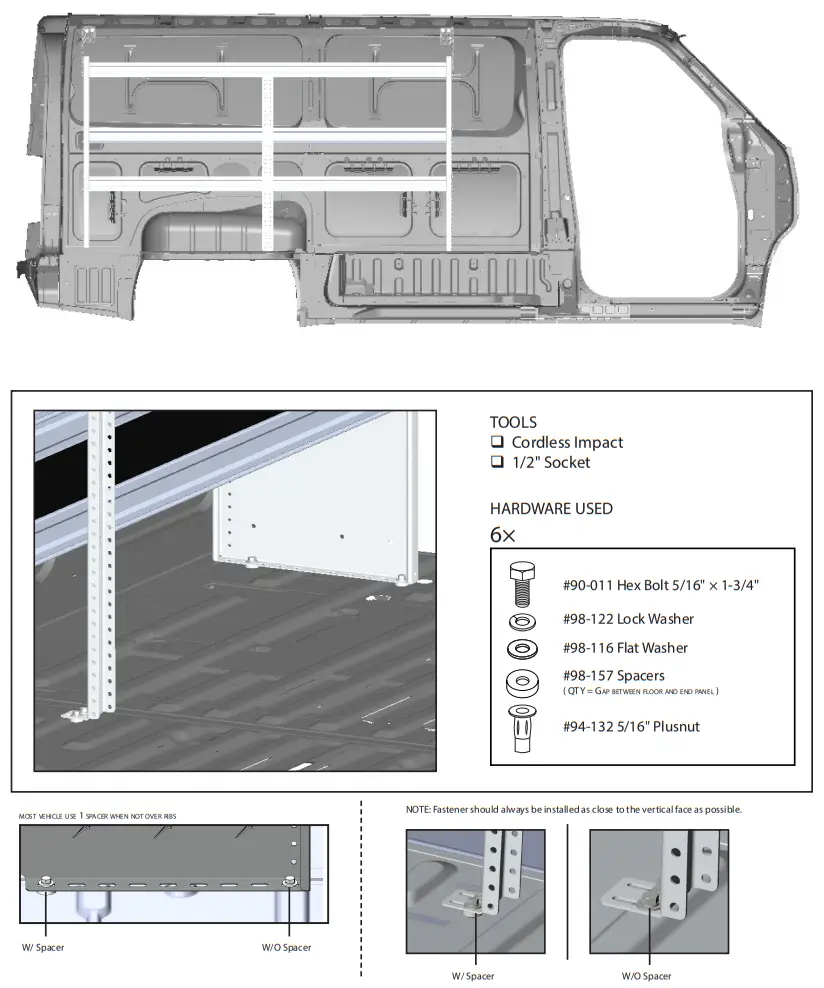

2.4 ATTACH SHELF UNIT TO THE FLOOR wiThouT ranGer floor
2.4.1 Put the assembled shelf back in place aligning the holes to the plus nuts, then install the end panels and center post to the plus nuts.

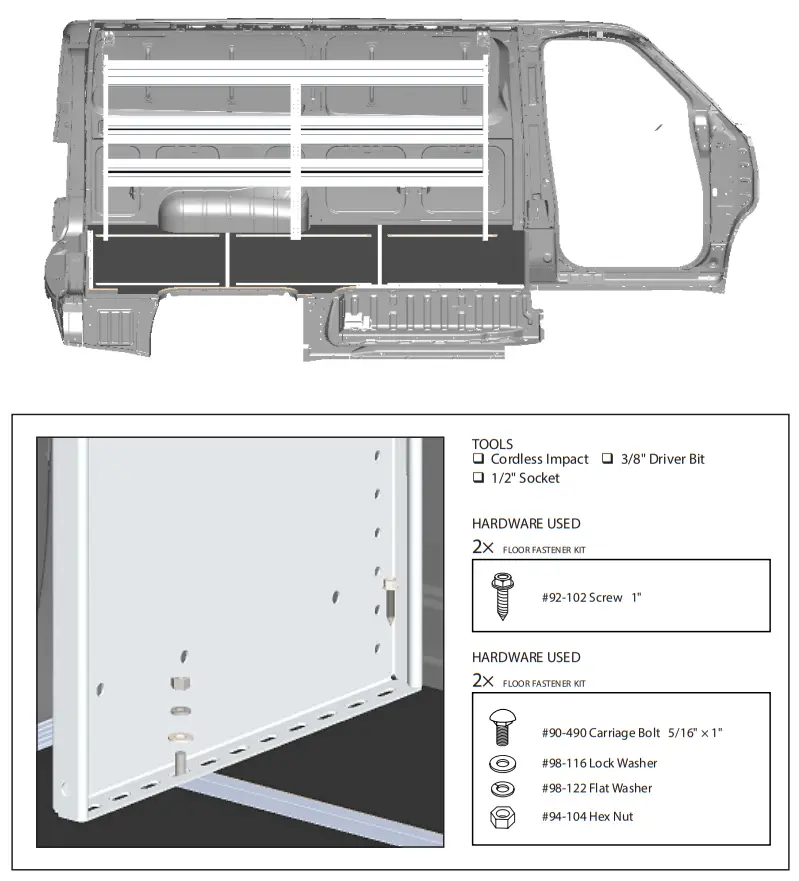

With ranger floor

2.4.2 • Lift the shelving unit inside the van, then put it in place.
• Install the shelving unit to the floor mounting track by sliding bolts in the mounting tracks, and putting a screw in the last rear slot of the end panels of the shelving unit.

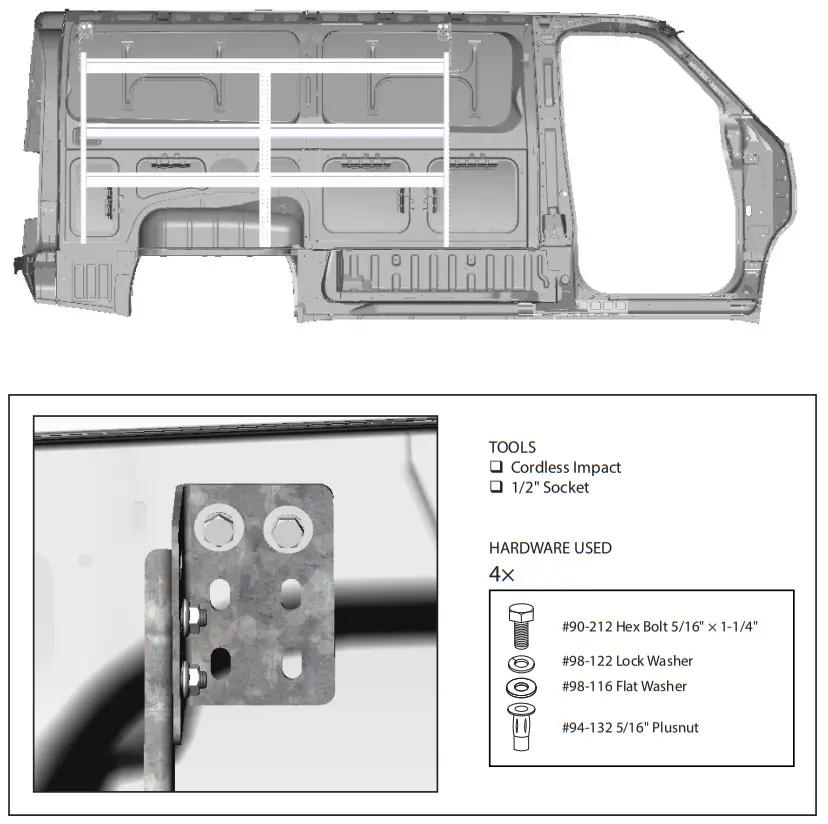

2.5 ATTACH WALL BRACKETS
Without ranGer wall kiTs
2.5.1 Aligned the wall brackets to the plus nuts, then install the wall brackets to the wall.
NOTE: Tightened the bolts that were used to attach the wall bracket to the wall or wall kits 1st before the bolts that were used to attach the wall bracket to the end panel.
IMPORTANT: After installation is completed, ensure all bolts are tightened.

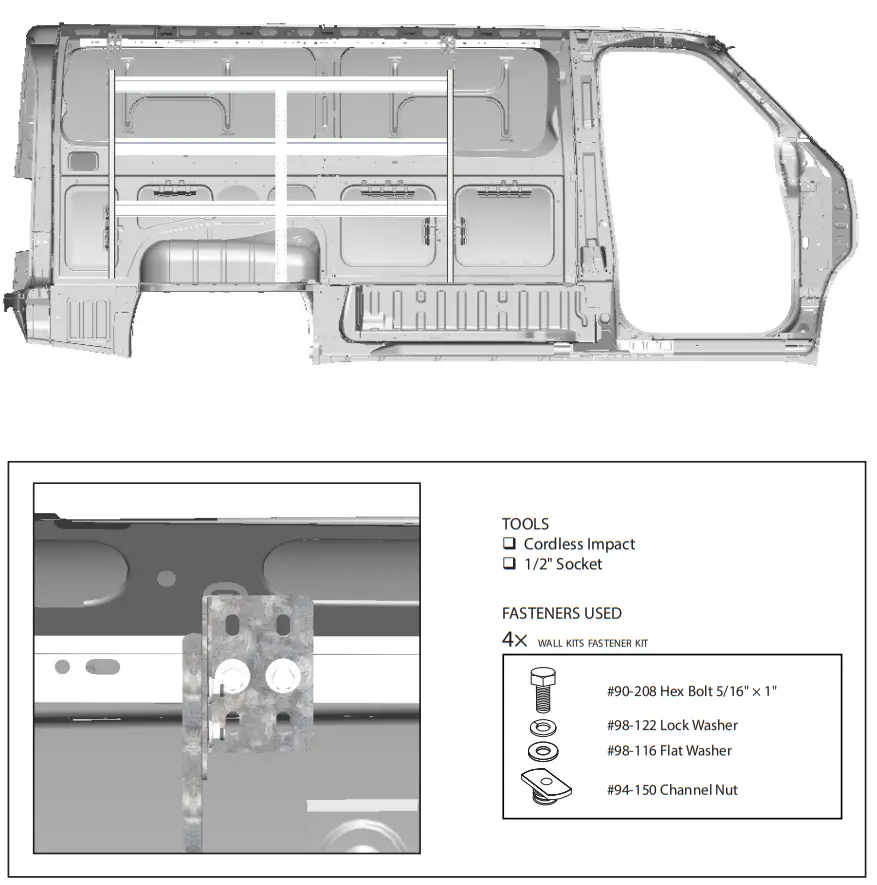

With ranger wall kits

2.5.2 Aligned the wall brackets to the wall mounting track kits, then install the wall brackets to the wall mounting track kits using channel nuts.
NOTE: Tightened the bolts that are used to attach the wall bracket to the wall or wall kits 1 before the bolts that were used to attach the wall bracket to the end panel.
IMPORTANT: After installation is completed, ensure all bolts are tightened.

“You have successfully installed your
N4-RA84-3
Thank you for doing business with us.”
For any feedback or suggestions, you may have, please contact: [email protected]
For technical support, contact us at 1-800-565-5321
N4-RA84-3 Installation Guide | REV. B1 | Page 16
