INSTALLATION GUIDE
Ladder Rack Mounting Kit for Transit Connect
18-U0046 Mounting track
TransiT ConneCT LWB, TransiT ConneCT sWB
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Verify all parts are present.
Verify all Parts are Present
| Item No. | Description | Qty. |

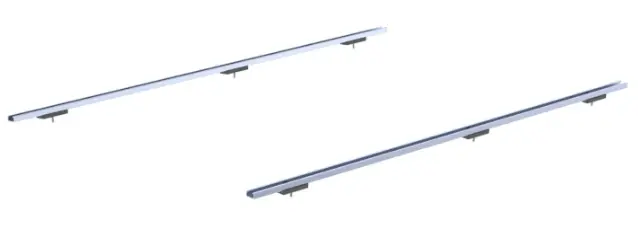

| 10-732 | Mounting TraCk | 2 |
| 10-750 | Angle pad | 4 |
| 10-753 | Straight pad | 2 |
| 96-1032 | Customer insTaLL fasTener kiT | 1 |
Verify all Parts are Present
Fastener Bags.
96-1032→ Fastener Assembly
 | Hex Bolt M8-1.25 × 50mm SS304 |
 | Hex Serrated Nut 5/16″ ZINC |
 | Neoprene Spacer 1/16″ Thick |
 | Flat Washer 5/16″ |
 | Lock Washer 5/16″ |

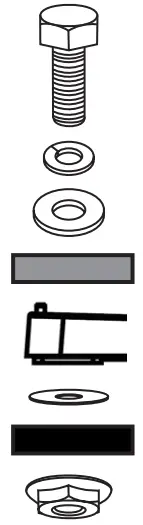

6× TransiT ConneCT
 | #90-004 Hex Bolt M6 × 50mm |
| #98-123 LoCk Washer | |
| #98-117 FLaT Washer | |
| MounTing TraCk | |
| Pad | |
| #10-764 Neoprene spaCer | |
| #94-172 Hex serraTed nuT |
PHASE 2 – INSTALLATION
2.1 INSTALLATION

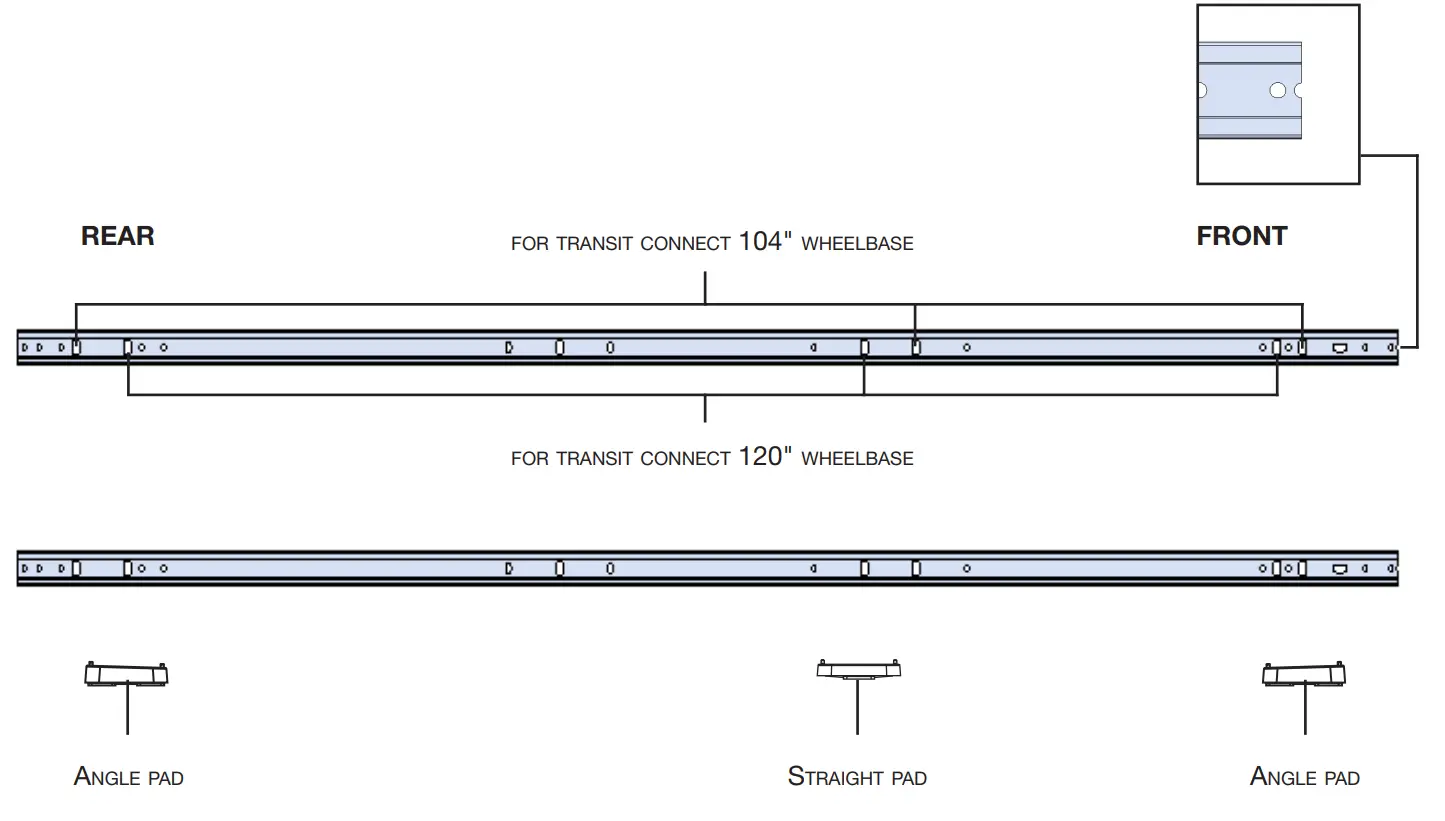

2.1.1 Install the mounting track with pads.

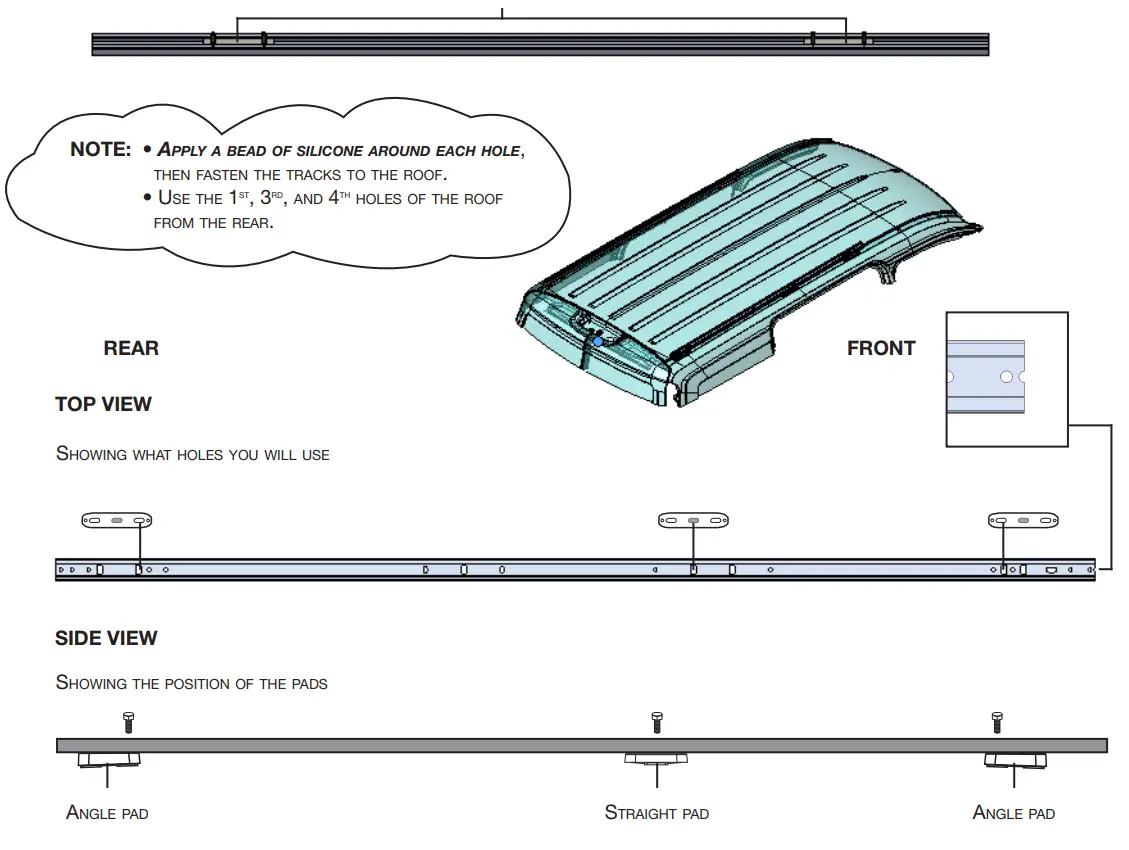

Transit Connect 104″ Wheelbase
NOTE:
- Slide stud plate on both ends of the mounting track before installing the mounting track.
- Slide 3 stud plates if you have 3 barracks.
TOOLS
- Cordless Impact
- 13mm Socket
- Silicone

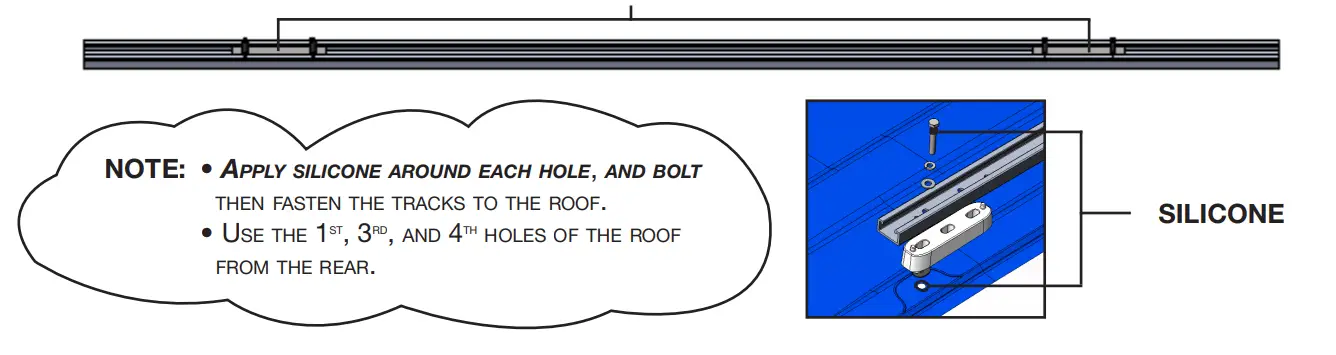

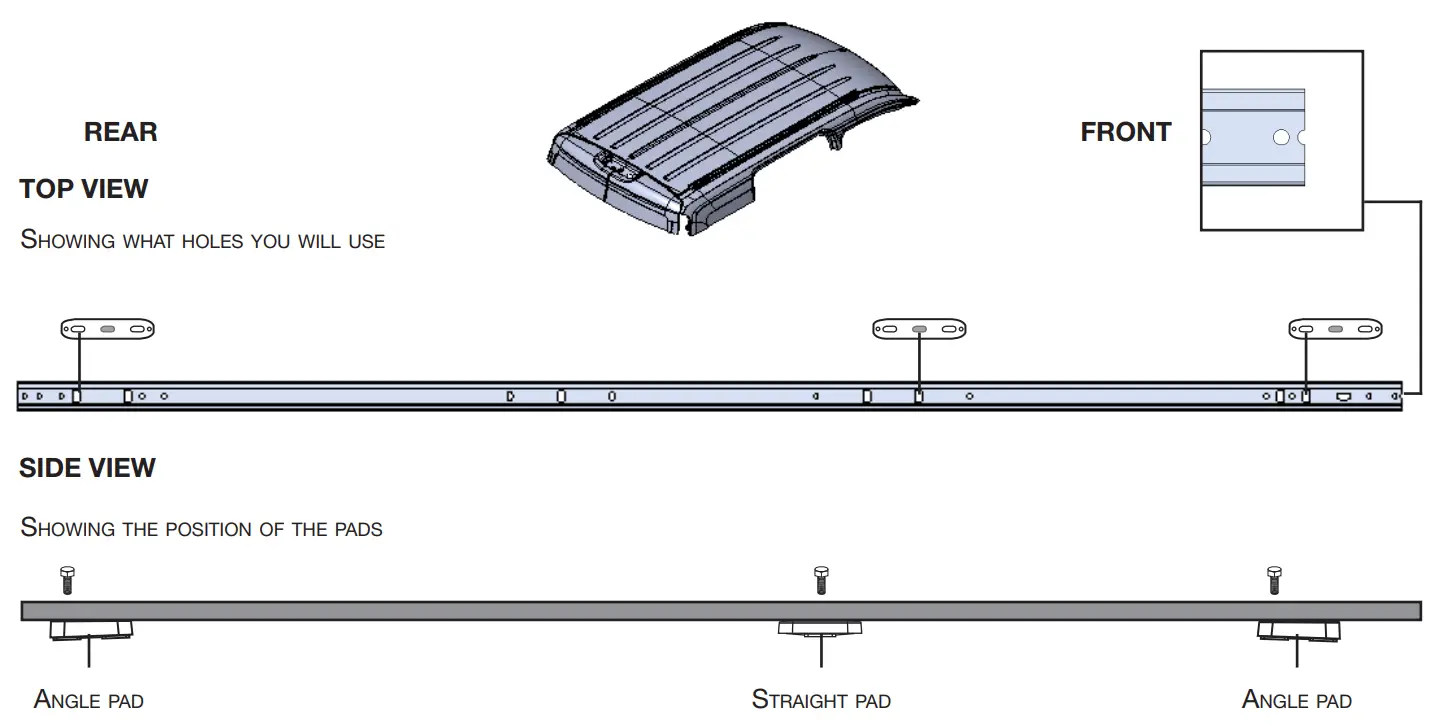

NOTE: use The 1sT, 3rd, and 4Th hoLes of The roof from The rear.

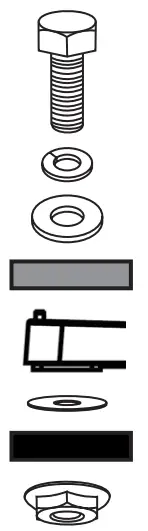

FASTENERS USED 6×
 | #90-004 Hex Bolt M6 × 50mm |
| #98-123 LoCk Washer | |
| #98-117 Flat Washer | |
| Mounting TraCk | |
| Pad | |
| #10-764 Neoprene spaCer | |
| Roof | |
| #94-172 Hex serraTed nuT |

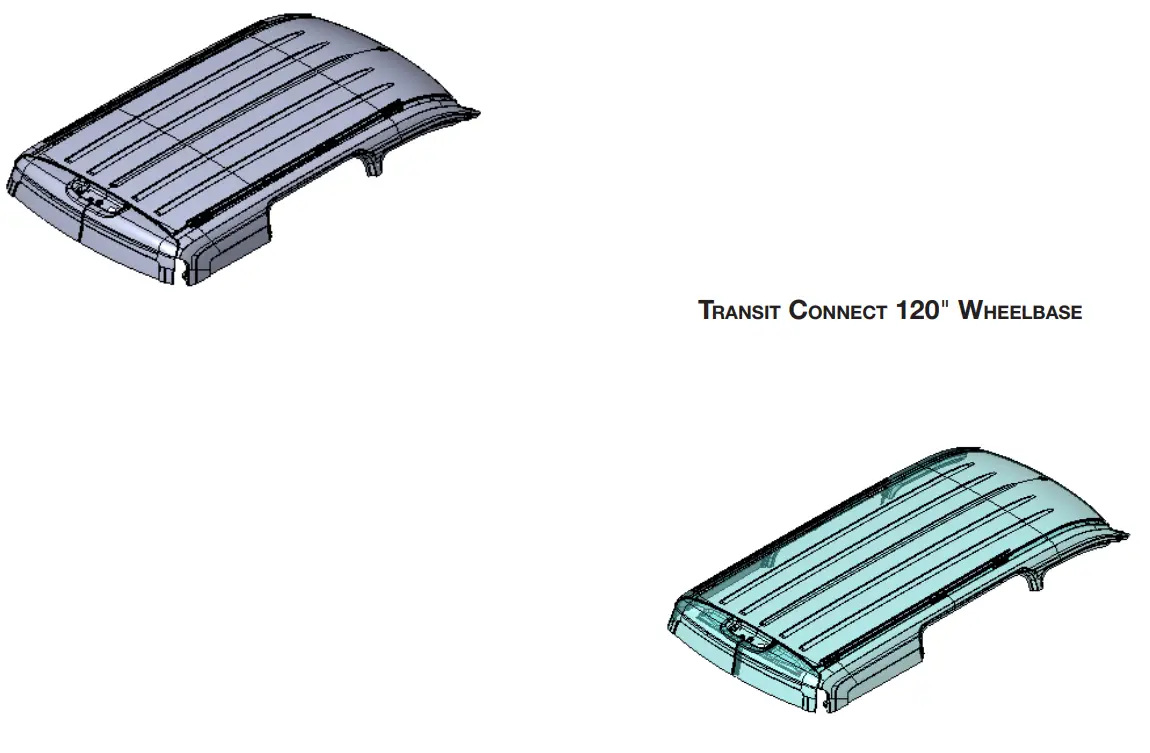

Transit Connect 120″ Wheelbase
NOTE:
- Slide stud plate on both ends of the mounting track before installing the mounting track.
- Slide 3 stud plates if you have 3 barracks.
TOOLS
- Cordless Impact
- 13mm Socket
NOTE: use The 1sT, 3rd, and 4Th hoLes of The roof from The rear.

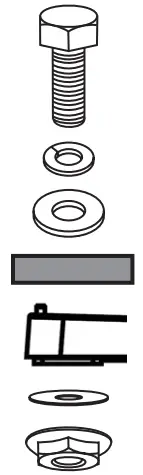

FASTENERS USED 6×
 | #90-004 Hex Bolt M6 × 50mm |
| #98-123 LoCk Washer | |
| #98-117 FLaT Washer | |
| MounTing TraCk | |
| Pad | |
| #10-764 Neoprene spaCer | |
| Roof | |
| #94-172 Hex serraTed nuT |
Transit connect 104″ Wheelbase
“Congratulations, you have successfully installed your
Mounting Track on your vehicle!
Thank you for doing business with us.”
For any feedback or suggestions, you might have, please contact: [email protected]

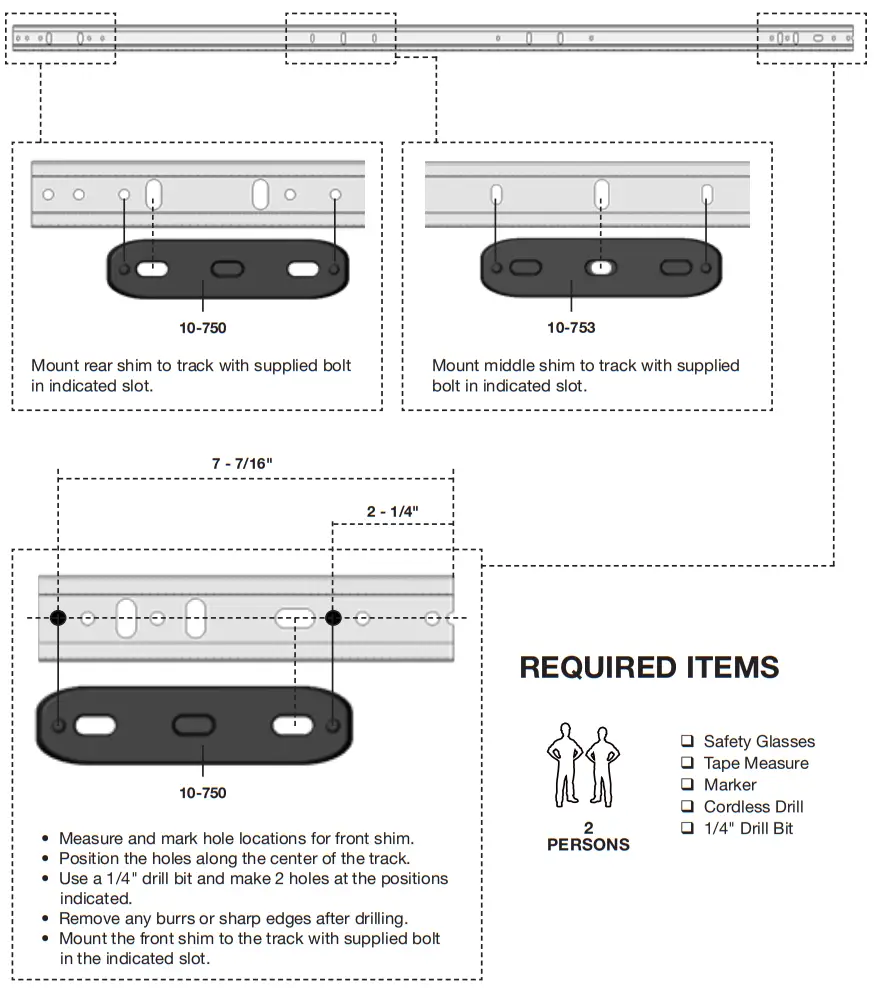

procedure to modify the 18-u0046 mounting kit for nissan nv200
For technical support, contact us at 1-800-565-5321
18-U0046_NV Installation Guide | REV. A1
