RANGER 6555-PM Install Track Kit
REQUIRED ITEMS
- Cordless Impact
- Cordless Drill
- 1/4″ Plusnut Gun or Plusnut Tools
- 3/8″ Drill Bit
- 7/16″ Socket
- 13mm Socket
- Tape Measure
- Marker
ASSEMBLY
SETUP
Unpack components; compare with the bill of materials.
Verify all parts are present.

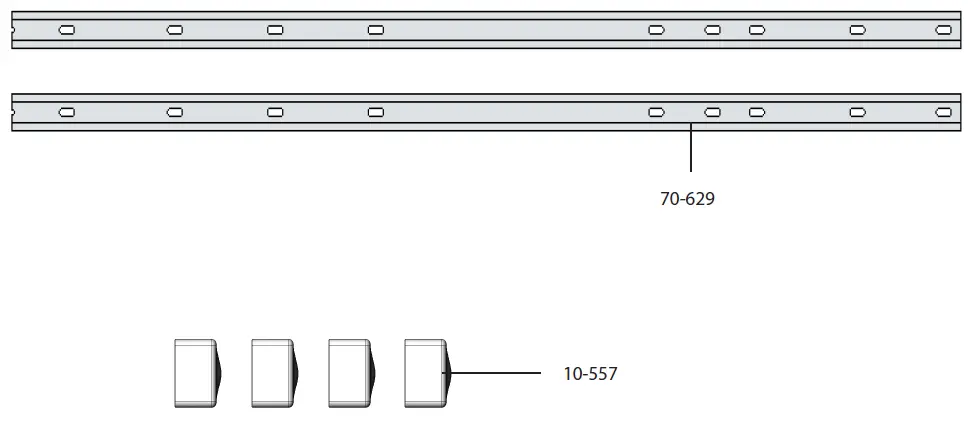

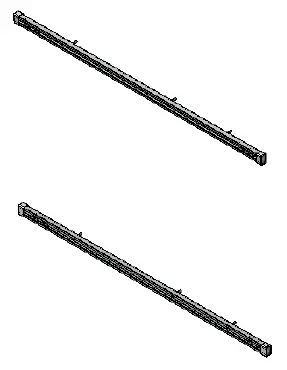

BILL OF MATERIALS
| Item No. | Description | Qty. |
| 70 – 629 | Mounting Track 52″ | 2 |
| 10 – 557 | End Cap | 4 |
| 96 – 6023 | Customer Fastener Kit | 1 |

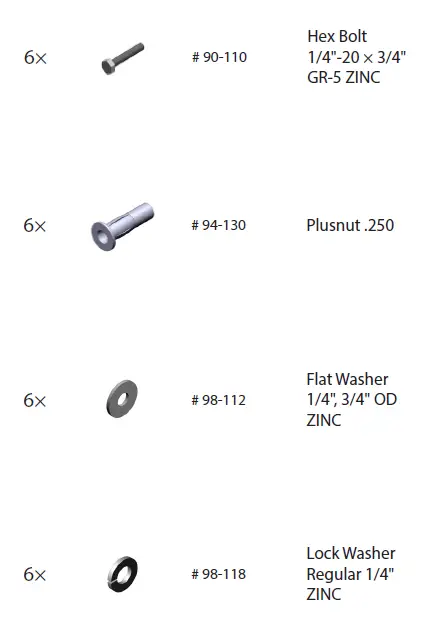

Fastener kits

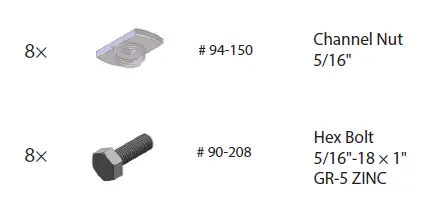

FOR SHELVING INSTALL
INSTALLATION

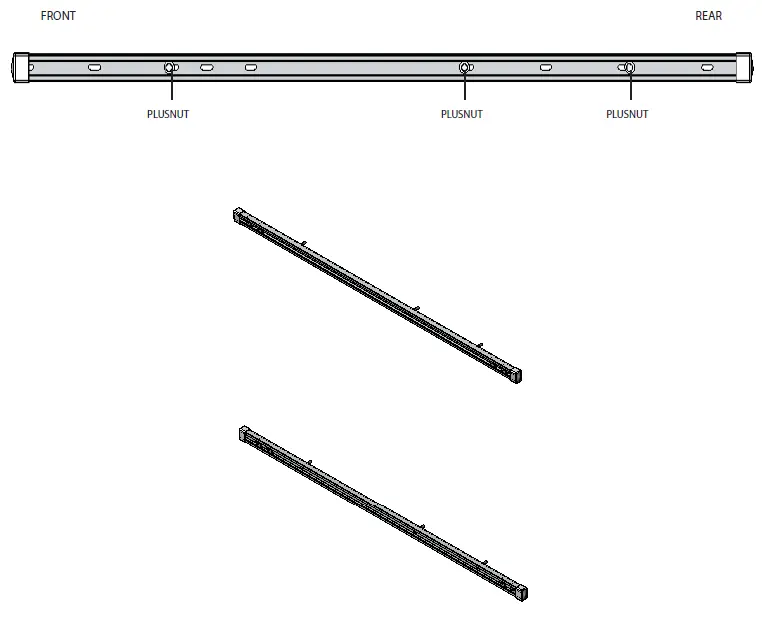

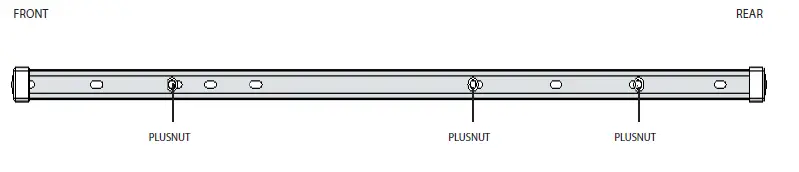

MOUNTING TARCK INSTALLATION
- Place the mounting tracks in the van, then mark the holes that need to the used to van.
- Drill the mark, then attach plusnut to the van.

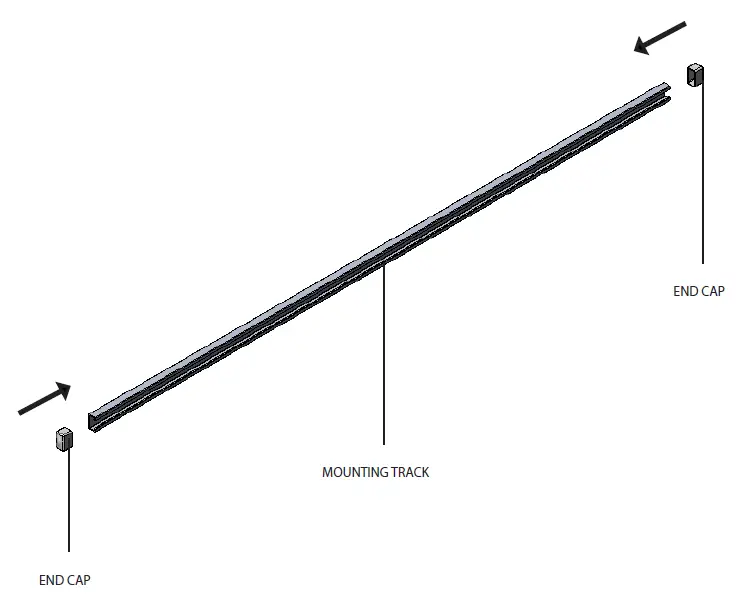

- Install the mounting track after attaching the plusnut
BOTTOM
INSTALLATION

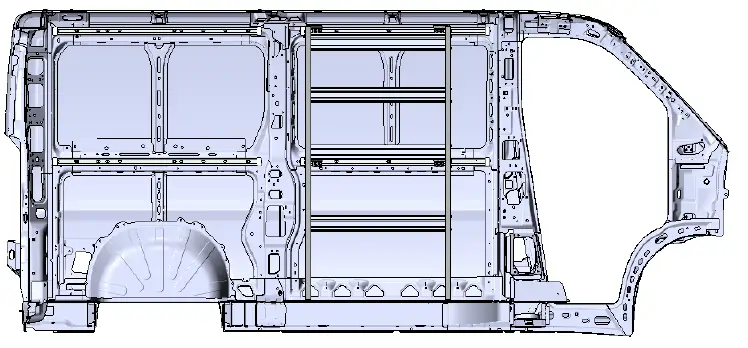

NEW SHELVING INSTALLATION W/ INSTALL TRACK KIT

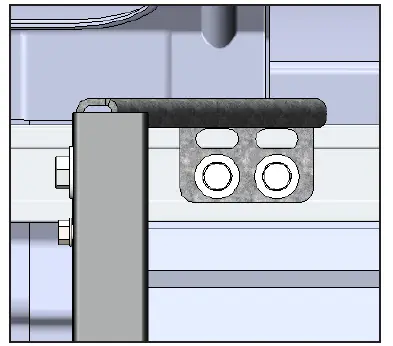

Aligned the wall brackets to the wall mounting track kits, then install the wall brackets to the wall mounting track kits using channel nuts.
NOTE: Tightened the bolts that used to attached the wall bracket to the wall or wall kits 1st before the bolts that used to attached the wall bracket to the end panel.
IMPORTANT: After installation is completed, ensure all bolts are tightened.
You have successfully installed your 6555-PM Thank you for doing business with us.” For any feedback or suggestions you may have, please contact: [email protected]
