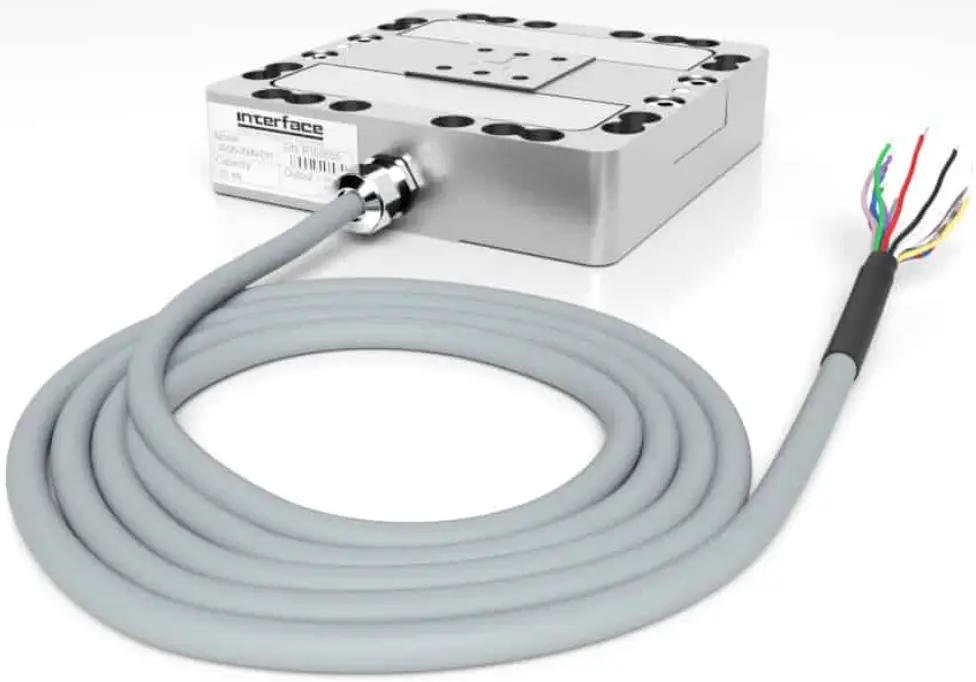

Interface 3a Series Multi Axis Load Cells Instruction Manual

Interface 3A Series Multi Axis Load Cells Instruction Manual

INSTALLATION INFORMATION

1. Interface model 3A Series multi-axis load cells must be mounted on a surface that is flat and rigid enough so as to not deform appreciably under load.
2. Fasteners should be Grade 8.8 for 3A60 thru 3A160 and Grade 10.9 for 3A300 and 3A400
3. Sensors should be mounted using the recommended screws and mounting torques in the table below.
4. Dowel pins should be used at all mounting surfaces.
5. For 3A300 and 3A400 at least two dowel pins should be used on the live end. Up to 5 can be used.
6. For sensors 500N and above, a thin coating of Loctite 638 or similar is recommended on the three mounting surfaces to prevent slippage.

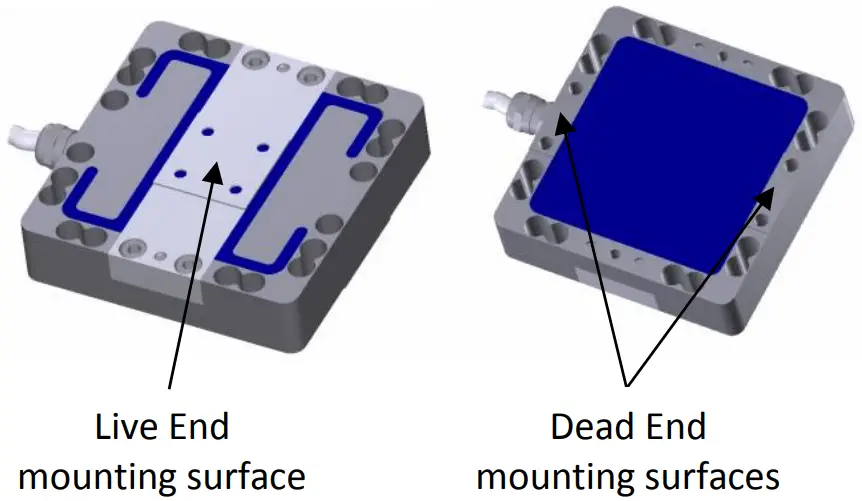

7. Mounting fixtures and plates may only contact the sensor at the indicated mounting surfaces.

MOUNTING DETAILS

	Model	Rated load/ Capacity	Dimensions	Material	Measuring platform / Live End			Stator / Dead End
					Thread	Tightening Torque (Nm)	Cylinder pin Hole (mm)	Thread / Cylindered Screw	Tightening Torque (Nm)	Cylinder pin Hole (mm)
	3A40	±2N ±10N ±20N ±50N	40 mm x 40 mm x 20 mm	aluminum alloy	internal thread 4x M3x0.5 depth 8 mm	1	no	internal thread 4x M3x0.5 depth 8 mm	1	no
	3A60A	±10N ±20N ±50N ±100N	60 mm x 60 mm x 25 mm	aluminum alloy	internal thread 4x M3x0.5 depth 12 mm	1	2 x Ø2 E7 depth 12 mm	2 x DIN EN ISO 4762 M4х0.7 6.8	2	2 x Ø3 E7 depth 5 mm
		±200N ±500N		stainless steel	internal thread 4x M3x0.5 depth 12 mm	1	2 x Ø2 E7 depth 12 mm	2 x DIN EN ISO 4762 M4х0.7 6.8	2	2 x Ø3 E7 depth 5 mm
	3A120	±50N ±100N ±200N ±500N ±1000N	120 mm x 120 mm x 30 mm	aluminum alloy	Internal thread 4x M6x1 Depth 12 mm	10	2 x Ø5 E7 Depth 12 mm	4 x DIN EN ISO 4762 M6х1 6.8	10	2 x Ø5 E7 depth 3 mm
		±1kN ±2kN ±5kN		stainless steel	internal thread 4x M6x1 Depth 12 mm	15	2 x Ø5 E7 Depth 12 mm	4 x DIN EN ISO 4762 M6х1 10.9	15	2 x Ø5 E7 depth 3 mm
	3A160	±2kN ±5kN	160 mm x 160 mm x 66 mm	tool steel	internal thread 4x M10x1.5 depth 15 mm	50	2 x Ø8 H7 depth 15 mm	4 x DIN EN ISO 4762 M12х1.75 10.9	80	2 x Ø8 H7 depth 5 mm
		±10kN ±20kN ±50kN		tool steel	internal thread 4x M10x1.5 depth 15 mm	60	2 x Ø8 H7 depth 15 mm	4 x DIN EN ISO 4762 M12х1.75 10.9	100	2 x Ø8 H7 depth 5 mm
	3A300	±50kN	300 mm x 300 mm x 100 mm	tool steel	internal thread 4x M24x3	500	5x Ø25 H7	4 x DIN EN ISO 4762 M24х3 10.9	500	2 x Ø25 H7 depth 40 mm
		±100kN ±200kN				800			800
	3A400	±500kN	400 mm x 400 mm x 100 mm	tool steel	internal thread 4x M30x3.5	1800	5x Ø30 E7	4 x DIN EN ISO 4762 M30х3.5 10.9	1800	2 x Ø30 E7 depth 40 mm
