4 120 92
4 120 93
The instructions for installation and use must be strictly observed in order to avoid the risk of electric shock or fire.

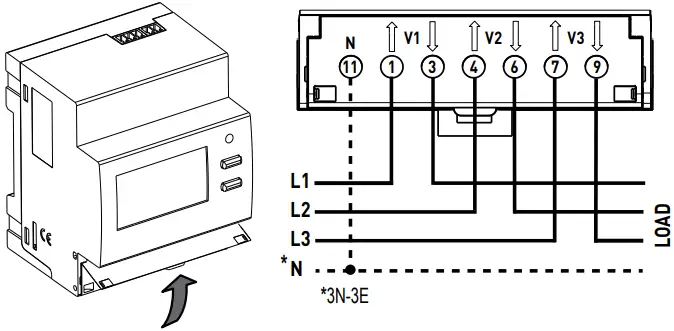

• Wiring diagrams

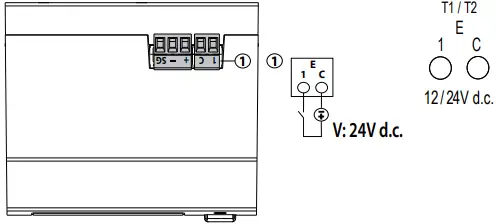

• Input/Output
| U | 3x230V / 3x400V ± 15% | CAT III | |||
| I | Imin= 0,25A Itr= 0,5A Iref= 5A Imax= 63A | ||||
| cl. | 4 120 92 4 120 93 | B (EN 50470-1,3) | |||
 LED | 1 Wh/imp. | ||||
| COM |  | RS485 Modbus | |||
 L1-L2-L3 | 11 mm MAX
| Recommended torque 1,6 to 2Nm COMBI PZ2
| |||
|
1 C
RS485 | 8 mm MAX
| Recommended torque 0,2Nm 0,5 x 2,5mm
| |||
 | -25°C ) – (70°C) | ||||
1 x 10 mm2
1 x 10 mm2
1 x 16 mm2

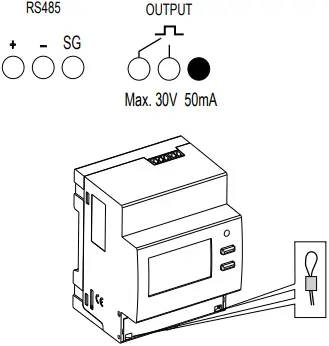

• Positions for lead plating

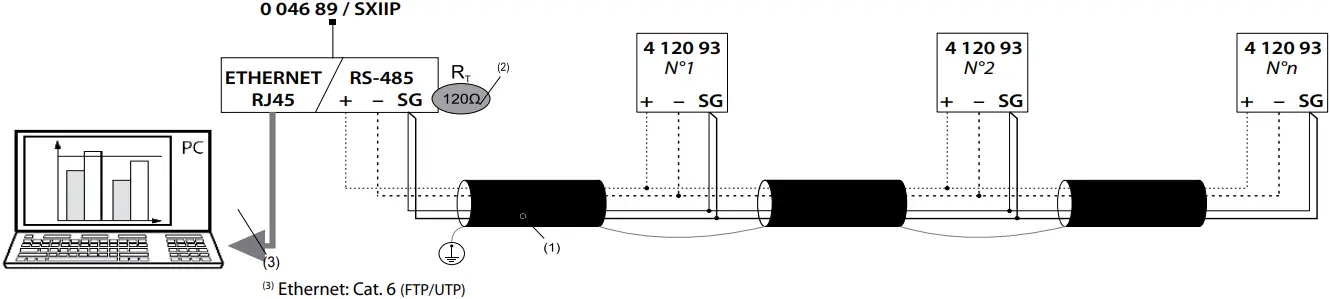

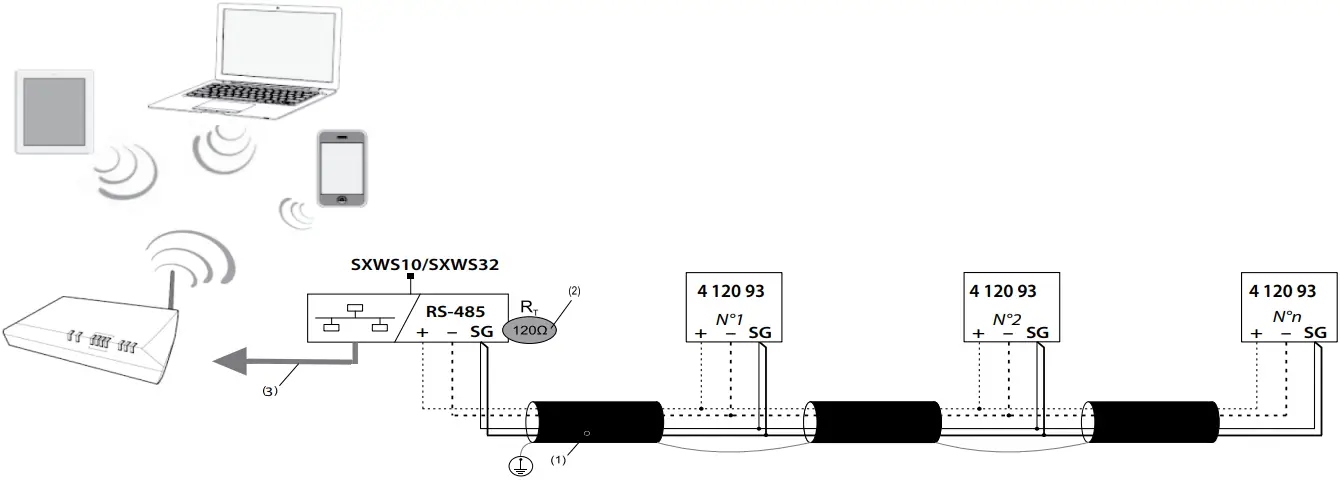

• RS485 wiring diagram
(1)RS485:
Prescribed use of Cable Belden 9842, Belden 3106A (or equivalent) for a maximum length of 1000 m or Category 6 cable (FTP or UTP) for a maximum length of 50 m;
*Resistance not furnished with the article 4 120 92 – 4 120 93

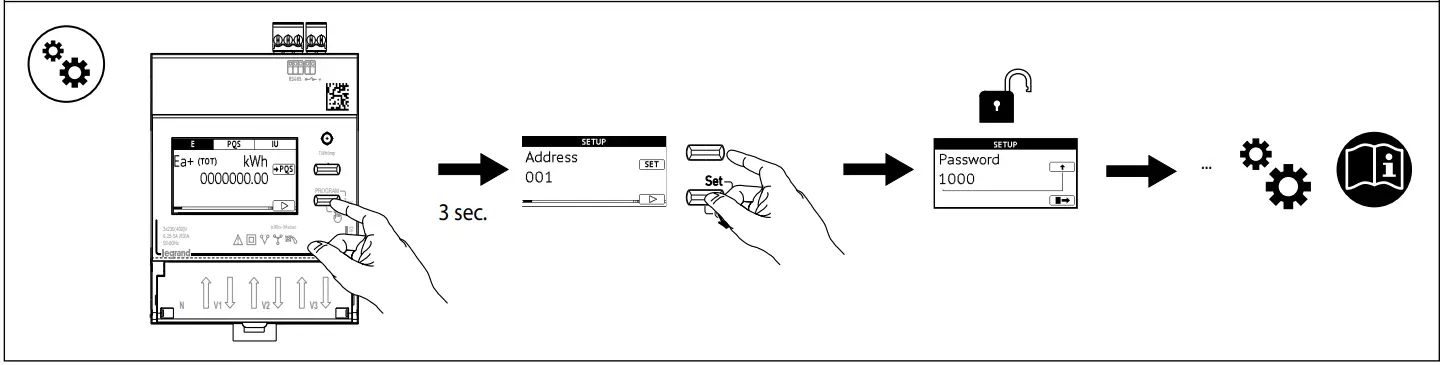

Modbus Address: 5
Baud Rate: 19,2 kbps
Parity
Complete documentation is available at www.e-catalogue.legrandgroup.com Type “4 120 92 – 4 120 93” in the search field.”
EU DECLARATION OF CONFORMITY
n° 10 0066 02
We
LEGRAND FRANCE
128, Avenue du Marechal de Lattre-de-Tassigny – 87045 LIMOGES CEDEX – FRANCE
declare under our sole responsability that the product:
trade mark :
LEGRAND
4 120 92 4 120 93
designation :
3-phase meter 4M 63A direct – MID
manufactured by :
LEGRAND
BP 30076
87002 LIMOGES CEDEX FRANCE
is in conformity with the relevant Union harmonisation legislation :
2014/35/EU of 26-02-2014 (Low Voltage)
and 2014/30/EU of 26/02/2014 (Electromagnetic Compatibility)
and 2014/32/UE du 26-02-2014 (Mesuring Instrument) and 2011/65/EU of 08/06/2011 modified by 2015/863 of 31/03/2015 (ROHS 2)
on condition that it is used in the manner intended and/or in accordance with the current installation standards and/or with the manufacturer’s recommendations.
These provisions are ensured by conformity to the following standards :
EN 50470-1:2006; EN 50470-3:2006;
The product match the product described in the EU type examination certificate N° 0120/SGSO447 issued by the Notified Body 0598
This declaration state that the fulfilment of the essential requirements set out in the annexe I and in the relevant instrument specific annexes has been demonstrated
Marcello RE
Phone :+ 33 (0)5 55 06 87 87 Fax :+ 33 (0)5 55 06 88 88
V7
