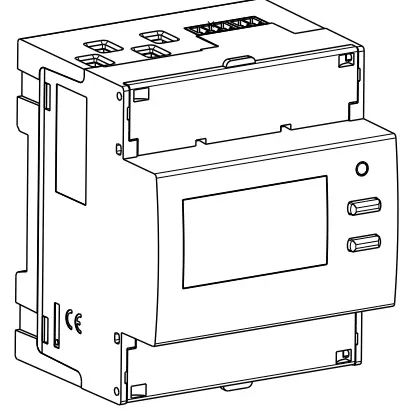

legrand LE11302BE Three-Phase Meter
The instructions for installation and use must be strictly observed in order to avoid the risk of electric shock or fire.

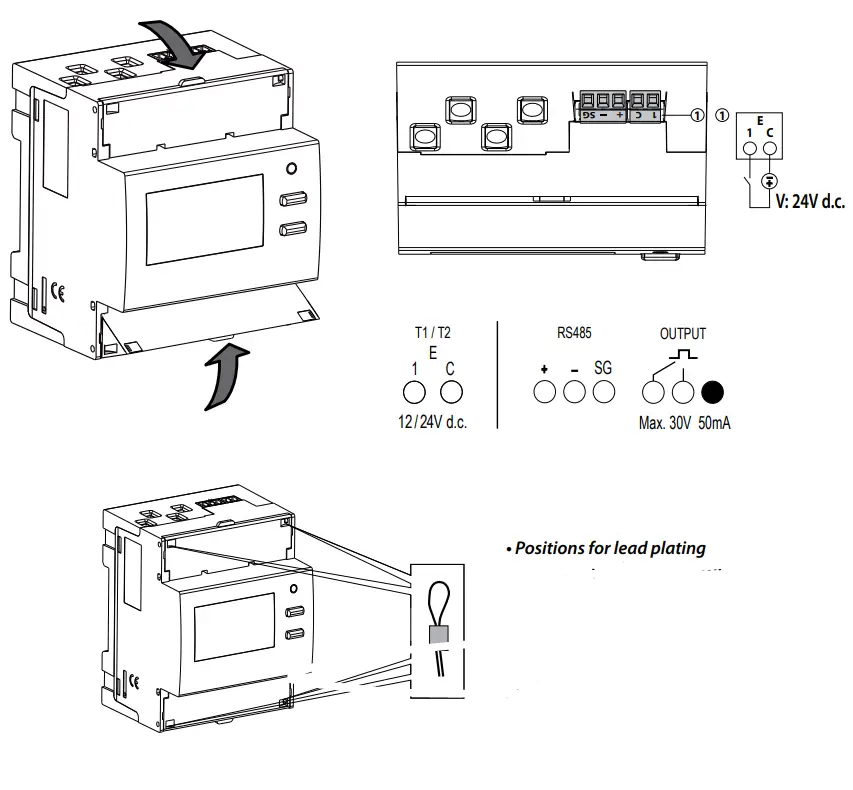

Input/Output
SPECIFICATION
Connection on VT

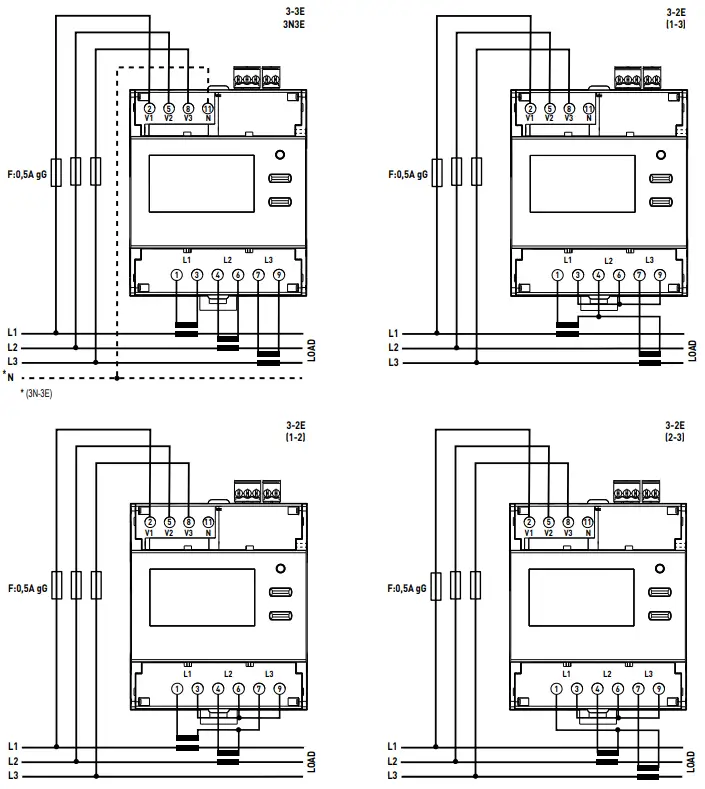

Wiring diagrams

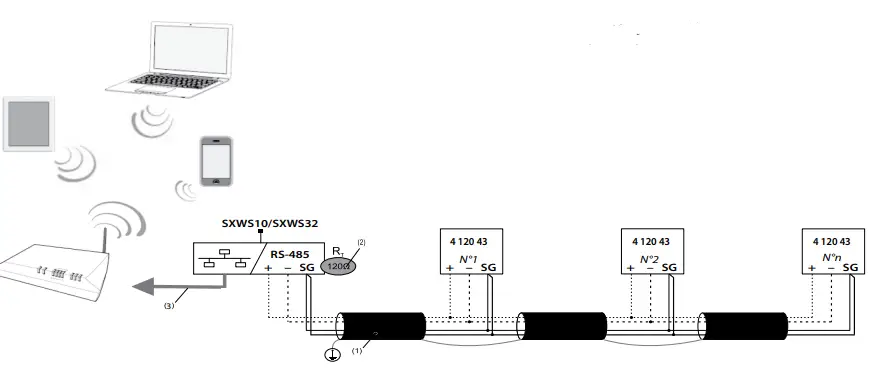

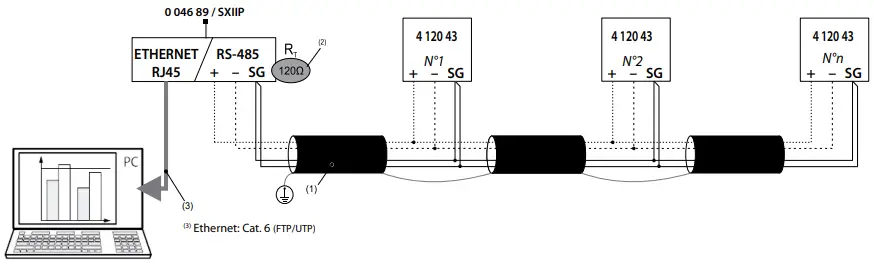

RS485 wiring diagram
RS485
Prescribed use of Cable Belden 9842, Belden 3106A (or equivalent) for a maximum length of 1000 m or Category 6 cable (FTP or UTP) for a maximum length of 50 m;
Resistance not furnished with the article 4 120 42 – 4 120 43

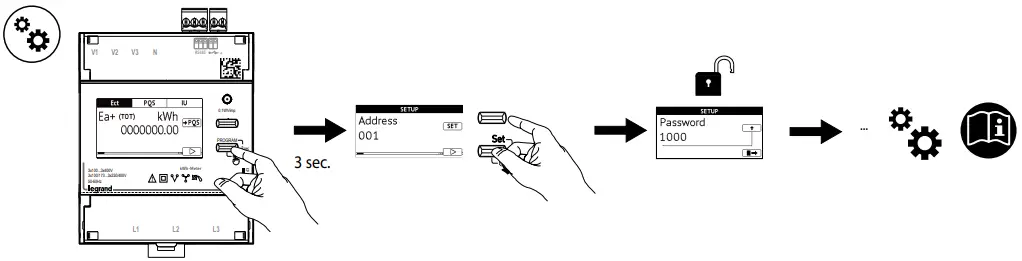

Modbus Address
Complete documentation is available at www.e-catalogue.legrandgroup.com Type “4 120 42 – 4 120 43″ in the search field.”

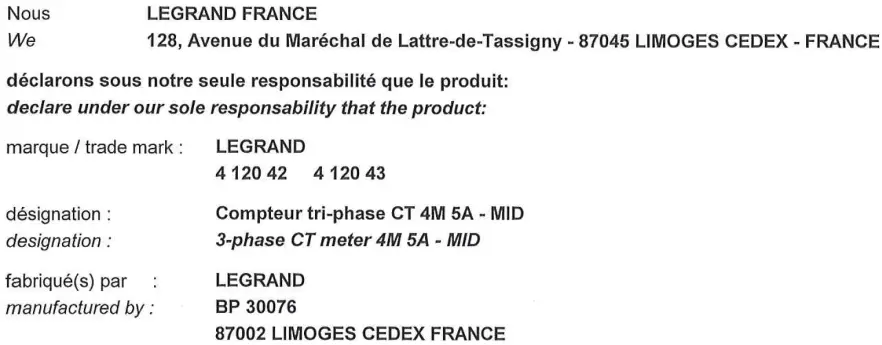

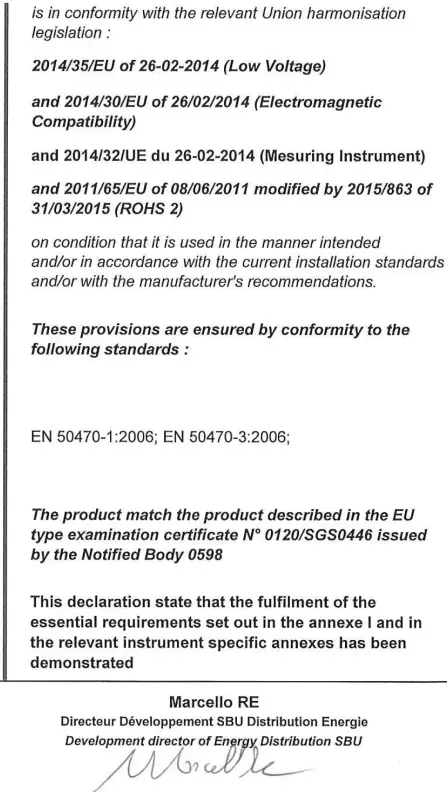

EU DECLARATION OF Conformity
EU DECLARATION OF Conformity
