Qubino 3 phases Smart Meter
SKU: GOAEZMNHXD1
Quickstart
This is a
secure
Smart Meter
for
Europe.
To run this device please connect it to your mains power supply.
To add this device to your network execute the following action:
Toggle the Service button S between 0.2 and 6 seconds
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law.
The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material.
Use this equipment only for its intended purpose. Follow the disposal instructions.
Do not dispose of electronic equipment or batteries in a fire or near open heat sources.
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This
device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way
communication) and every mains powered node can act as a repeater for other nodes
(meshed network) in case the receiver is not in direct wireless range of the
transmitter.
This device and every other certified Z-Wave device can be used together with any other
certified Z-Wave device regardless of brand and origin as long as both are suited for the
same frequency range.
If a device supports secure communication it will communicate with other devices
secure as long as this device provides the same or a higher level of security.
Otherwise it will automatically turn into a lower level of security to maintain
backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer
to www.z-wave.info.
Product Description
The Qubino Smart Meter is an extremely versatile and powerful Z-Wave module for measuring energy in a single-phase electrical power network of up to 65A. A built-in microprocessor calculates energy, power and power factor from the measured signals. It is designed to be mounted on a DIN rail.
The Qubino Smart Meter can be used in residential, industrial and utility applications. It measures energy directly in 2-wire networks by means of fast sampling of voltage and current signals. It calculates energy, power and power factor from the measured signals. You can control the module through the Z-Wave network. It also acts as a repeater in order to improve the range and stability of the Z-Wave network. The Smart Meter is designed to be mounted on a DIN rail.
”
Properties:
- Z-Wave Plus
- EU frequency: 868.42 MHz
- Package content: 1x Qubino Smart Meter
Main terminals (LI,NI,Lo,No)
- Contacts capacity: 1.5…16(25)mm2
- Connection screws: M5
- Max torque: 3.5 Nm
Optional terminals (1,2,4,5)
- Contact capacity: 0.05 … 1 (2.5) mm2
- Connection screws: M3
- Max torque: 0.6 Nm
Measuring input
- Type (connection): single phase (1b)
- Reference current (Iref): 5 A
- Maximum current (Imax): 65 A
- Minimum current (Imin): 0.25 A
- Starting current: 20 mA
- Voltage (Un): 230 V (“±20%)
- Power consumption at Un: < 2 W
- Nominal frequency (fn): 50 and 60 Hz
” Accessory
- IKA232-20/230 V ” (GOAEIKA23220)
- BICOM432-40-WM1 (GOAEBICOM432)”
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default
state. Please make sure to reset the device into factory default. You can do this by
performing an Exclusion operation as described below in the manual. Every Z-Wave
controller is able to perform this operation however it is recommended to use the primary
controller of the previous network to make sure the very device is excluded properly
from this network.
Reset to factory default
This device also allows to be reset without any involvement of a Z-Wave controller. This
procedure should only be used when the primary controller is inoperable.
Press and hold the S service button between 6 seconds and 20 seconds
Safety Warning for Mains Powered Devices
ATTENTION: only authorized technicians under consideration of the country-specific
installation guidelines/norms may do works with mains power. Prior to the assembly of
the product, the voltage network has to be switched off and ensured against re-switching.
Installation
– Take extra precautions to avoid accidentally turning the device on during installation.
Step 2 – Installing the device:

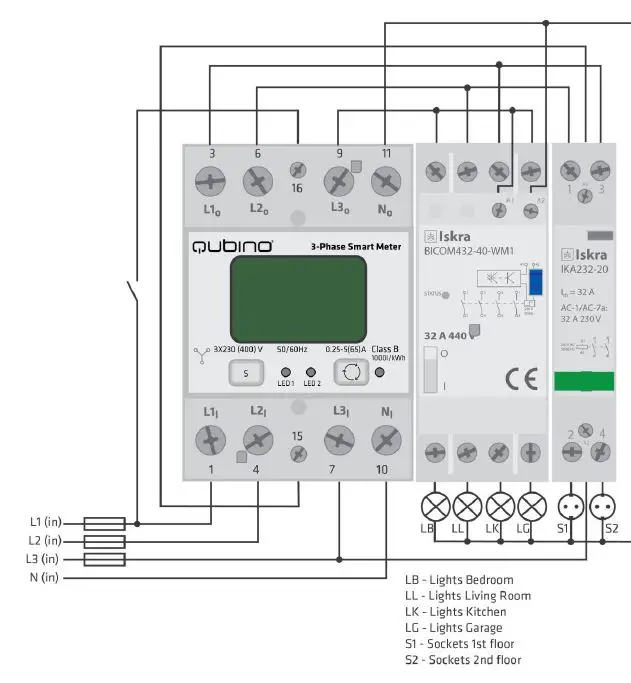

– Connect the device exactly according to the diagrams shown below
Step 3 – Turn ON the fuse:
Step 4 – Add the device to your Z-Wave network:
-For more details on how to include the device, please refer to the Z-Wave Inclusion chapter.
Step 5 – The Installation is now complete. It’s time to make your life more comfortable with the help of the Qubino 3-Phase Smart Meter
Inclusion/Exclusion
On factory default the device does not belong to any Z-Wave network. The device needs
to be added to an existing wireless network to communicate with the devices of this network.
This process is called Inclusion.
Devices can also be removed from a network. This process is called Exclusion.
Both processes are initiated by the primary controller of the Z-Wave network. This
controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is
then performed doing a special manual action right on the device.
Inclusion
Toggle the Service button S between 0.2 and 6 seconds
Exclusion
Toggle the Service button S between 0.2 and 6 seconds
Auto-Inclusion
Beside the standard inclusion this devices supports the so called auto inclusion.
Right after powering up the device remains in inclusion state and can be included by
(any) gateway without further actions on the device itself. The auto inclusion mode will
time out after some time.
Product Usage

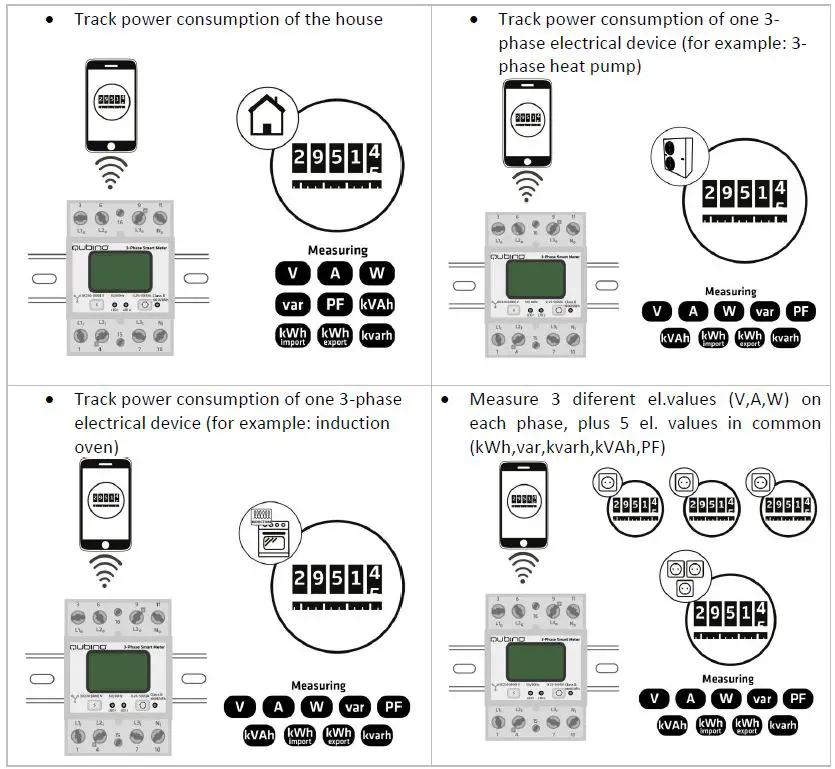

The 3-Phase Smart Meter can be used in many different scenes, which can help make your life more comfortable. We have prepared a few of them for you so you can get an idea for your next smart home project. Of course, there are countless of other options for how to use Qubino 3-Phase Smart Meter to remotely control devices via your smartphone.
– LED is 1s OFF, 1s ON = Power ON, module is excluded
Quick trouble shooting
Here are a few hints for network installation if things dont work as expected.
- Make sure a device is in factory reset state before including. In doubt exclude before include.
- If inclusion still fails, check if both devices use the same frequency.
- Remove all dead devices from associations. Otherwise you will see severe delays.
- Never use sleeping battery devices without a central controller.
- Dont poll FLIRS devices.
- Make sure to have enough mains powered device to benefit from the meshing
Association – one device controls an other device
Z-Wave devices control other Z-Wave devices. The relationship between one device
controlling another device is called association. In order to control a different
device, the controlling device needs to maintain a list of devices that will receive
controlling commands. These lists are called association groups and they are always
related to certain events (e.g. button pressed, sensor triggers, …). In case
the event happens all devices stored in the respective association group will
receive the same wireless command wireless command, typically a ‘Basic Set’ Command.
Association Groups:
Group NumberMaximum NodesDescription
| 1 | 1 | Lifeline |
Configuration Parameters
Z-Wave products are supposed to work out of the box after inclusion, however
certain configuration can adapt the function better to user needs or unlock further
enhanced features.
IMPORTANT: Controllers may only allow configuring
signed values. In order to set values in the range 128 … 255 the value sent in
the application shall be the desired value minus 256. For example: To set a
parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56.
In case of a two byte value the same logic applies: Values greater than 32768 may
needed to be given as negative values too.
Parameter 7: Input switch function selection
Available configuration parameters for input switch I1
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | disabled |
| 2 | IR external relay control – mono stable push button |
| 3 | IR external relay control – bi-stable switch |
| 4 | External relay control – mono stable push button |
| 5 | External relay control – bi-stable switch |
Parameter 40: Reporting on power change
This parameter is valid for Active Power Total, Active Power Phase1, Active Power Phase2 and Active Power Phase3.
NOTE: if power change is less than 5 W, the report is not send (pushed).NOTE: Device is measuring also some disturbances even if on the output is no load. To avoid disturbances:- If measured Active Power (W) is below e.g. 5W-> the reported value in this case is 0W
Size: 1 Byte, Default Value: 50
SettingDescription
| 0 | reporting disabled |
| 1 – 100 | 1% – 100% reporting enabled. Power report is send only when actual power in Watts (in real time changes for more than set percentage comparing to previous Active Power, step is 1%. |
Parameter 42: Reporting on time interval
This parameter is currently valid only for Active Energy Total Import/Export (kWh), Reactive Energy Total (kvarh), Total Energy (kVAh)
Note: Device is reporting only if there was a change of 0.1 in EnergyNote: In the future will be possible to measure and report also Active Energy on PH1, PH2 and PH3.
Size: 2 Byte, Default Value: 600
SettingDescription
| 0 | reporting disabled |
| 600 – 65536 | Reporting enabled. Report is send with the time interval set by entered value. Seconds |
Parameter 43: Other Values – Reporting on time interval
This parameter is valid only for Voltage (V of ph1, ph2, ph3), Current (A of ph1, ph2, ph3), Total Power Factor, Total Reactive Power (var)
Note: Device is reporting only if there was a change
Size: 2 Byte, Default Value: 600
SettingDescription
| 0 | reporting disabled |
| 600 – 65536 | Reporting enabled. Report is send with the time interval set by entered value. Seconds |
Parameter 100: Enable / Disable External IR relay (BICOM)
NOTE1: After parameter change, first exclude module (without setting parameters to default value) and then re include the module.NOTE 2: If you don‘t have IR BICOM relay module mounted and you enable IR communication (parameter 100 is 1 or 2) there will be no valid IR relay state reported. It will be reported IR COMMUNICATION ERROR and LED2 will BLINK.
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | External IR relay disabled |
| 1 | External IR relay enabled and connected to all 3 Phases |
| 2 | External IR relay enabled and connected to a Phase 1 |
Parameter 101: Enable / Disable External relay (IKA)
After parameter change, first exclude module (without setting parameters to default value) and then re include the module.
Size: 1 Byte, Default Value: 0
SettingDescription
| 0 | External relay disabled |
| 1 | External relay enabled and connected to Phase 2 |
Parameter 106: External IR relay (BICOM) power threshold settings – maximum power of all phases together
This parameter defines a threshold when External IR relay is being turned off. (If Parameter no. 100 is set to the value 1 or 2)
NOTE: Meter is capable of measuring max 3x65A!
Size: 2 Byte, Default Value: 0
SettingDescription
| 0 | no function |
| 10 – 60000 | Watt |
Parameter 107: External relay (IKA) power threshold settings – maximum power on phase L2
This parameter defines a threshold when External relay is being turned off (if the parameter no. 100 is set to the value 1 or 2).
NOTE: Meter is capable of measuring max 65A
Size: 2 Byte, Default Value: 0
SettingDescription
| 0 | no function |
| 10 – 20000 | Watt |
Parameter 112: Power threshold – Delay before power on
External IR relay/ External relay is turned off due to detected overload (as set by parameter 106&107) and remains off for a time, defined in this parameter. After that time, the output turns on to check, if the overload is still present.
NOTE: the delay time may be prolonged for more then 10s of the time set by the parameter.
Size: 2 Byte, Default Value: 0
SettingDescription
| 0 | External IR relay/ External relay will not turn back on |
| 30 – 32535 | Seconds |
Technical Data
| Dimensions | 53,6 x 84 x 65 mm |
| Weight | 221 gr |
| Hardware Platform | ZM5101 |
| EAN | 3830062070683 |
| IP Class | IP 20 |
| Voltage | 3x 230 V/400V |
| Load | 65 A |
| Device Type | Smart Meter |
| Firmware Version | 01.00 |
| Z-Wave Version | 04.3d |
| Certification ID | ZC10-19066549 |
| Z-Wave Product Id | 0x0159.0x0007.0x0054 |
| Frequency | Europe – 868,4 Mhz |
| Maximum transmission power | 5 mW |
Supported Command Classes
- Basic
- Switch Binary
- Meter
- Crc 16 Encap
- Association Grp Info
- Device Reset Locally
- Zwaveplus Info
- Multi Channel
- Supervision
- Configuration
- Manufacturer Specific
- Powerlevel
- Firmware Update Md
- Association
- Version
- Multi Channel Association
- Security
- Transport Service
- Security 2
Controlled Command Classes
- Transport Service
- Security 2
Explanation of Z-Wave specific terms
- Controller — is a Z-Wave device with capabilities to manage the network.
Controllers are typically Gateways,Remote Controls or battery operated wall controllers. - Slave — is a Z-Wave device without capabilities to manage the network.
Slaves can be sensors, actuators and even remote controls. - Primary Controller — is the central organizer of the network. It must be
a controller. There can be only one primary controller in a Z-Wave network. - Inclusion — is the process of adding new Z-Wave devices into a network.
- Exclusion — is the process of removing Z-Wave devices from the network.
- Association — is a control relationship between a controlling device and
a controlled device. - Wakeup Notification — is a special wireless message issued by a Z-Wave
device to announces that is able to communicate. - Node Information Frame — is a special wireless message issued by a
Z-Wave device to announce its capabilities and functions.
