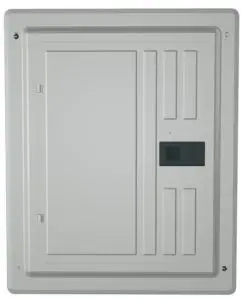

SIEMENS SN1224L1125 Indoor Load Center
RATINGS
125A MAXIMUM
BACK-FED MAIN BREAKER REQUIRES HOLD-DOWN MEANS AND LINE TERMINAL BARRIER. SEE ACCESSORY CHART FOR REQUIRED KIT(S).
120/240V∼, 60 HZ, 10 3W
208Y/120V∼, 60 HZ, 10 3W
FOR INSTALLATION BY A QUALIFIED PERSON IN ACCORDANCE WITH ALL LOCAL ELECTRICAL CODES AND/OR THE NATIONAL ELECTRICAL CODE ®
SUITABLE FOR USE AS SERVICE EQUIPMENT WHEN MAIN BREAKER IS INSTALLED. WHEN USED AS SERVICE EQUIPMENT, APPLY “SERVICE DISCONNECT” LABEL(S) TO FRONT NEXT TO APPROPRIATE BREAKER HANDLE.
WHEN USED AS SERVICE EQUIPMENT, UNUSED NEUTRAL BAR TERMINALS MAY BE USED TO TERMINATE EQUIPMENT GROUNDING WIRES IN THE COMBINATIONS INDICATED FOR EQUIPMENT GROUND BAR TERMINALS.
SUM OF QT BREAKER RATING IS NOT TO EXCEED 110 AMPS PER BRANCH CIRCUIT BUS STAB.
TO RESET BREAKERS WITH TRIPPED HANDLE POSITION BETWEEN “ON” AND “OFF”, MOVE HANDLE TO “OFF” THEN TO “ON”.
REMOVE TWISTOUTS FROM TRIM ONLY WHERE BREAKERS WILL BE INSTALLED. ALL OPENINGS MUST BE FILLED WITH BREAKERS OR FILLER PLATES.
THIS LOAD CENTER IS INVERTIBLE FOR BOTTOM FEED APPLICATIONS.
Siemens Industry, Inc. Norcross, Georgia U.S.A 40901334 0101 Rev.01
IMPORTANT: DO NOT ALLOW PETROLEUM BASED (HYDROCARBON) SPRAYS, CHEMICALS, SOLVENTS OR ANY PAINT TO CONTACT INTERIOR COMPONENTS. PETROLEUM BASED CHEMICALS CAN CAUSE DEGRADATION OF ELECTRICAL INSULATING MATERIALS.
 |  |
| Hazardous Voltage. Will cause death, serious injury or substantial property damage. Turn off power supplying this equipment before working inside. |
SHORT CIRCUIT CURRENT RATING
THIS PANELBOARD HAS A MAXIMUM SHORT CIRCUIT CURRENT RATING OF 100,000 AMPS RMS SYMMETRICAL, 120/240V~. THE ACTUAL RATING IS DEPENDENT ON THE BRANCH BREAKERS INSTALLED IN THIS PANELBOARD AND THE MAIN/FEEDER BREAKER, IF ANY, INSTALLED AHEAD OF THIS PANELBOARD. THE CORRECT MAIN BREAKER/FEEDER/MAIN BREAKER/BRANCH BREAKER SERIES COMBINATIONS TO BE USED ARE LISTED IN THE TABULATION BELOW. ANY CIRCUIT BREAKER INSTALLED, REPLACED, OR ADDED IN THIS PANELBOARD MUST BE MANUFACTURED BY SIEMENS AND MUST BE OF THE CORRECT TYPE AS INDICATED IN THE TABULATION BELOW. USE OF OTHER CIRCUIT BREAKERS IN THIS EQUIPMENT MAY VOID THE WARRANTY.
➊ NEUTRAL BUS FOR PLUG-ON NEUTRAL CIRCUIT BREAKERS
➋ BOND WHEN REQ’D
➌ BACK-FED BRKR WHEN USED
| MAIN BREAKER (SIEMENS TYPE) | MAIN/FEEDER BREAKER | PANELBOARD MAIN | BRANCH BREAKER | RATING AMPS |
| NONE USED | NONE USED | NONE USED or QP | OP, QG, QT, OTA, QTAN, OAF, QAFN, QAF2, QAF2N, QFGA2, QFGA2N, QPF, QPF2, QPF2N, QE, QE2 QPH*, QAFH, QAFH2, QFGAH2, QPHF. QPHF2 QEH QEH2 | 10,000
22,000 |
| NONE USED | NONE USED | |||
| NONE USED | EQ9677, QPH* NONE USED or QP, QPH* | QP, QT, OTA, QTAN, QAF, QAFN, QAF2, QAF2N, QFGA2, QFGA2N, QPF, QPF2, QPF2N, QE, QE2 | ||
| QPH, BLH, QSH | ||||
| QSHH | NONE USED or QP, QPH* | QP, QPH*, QT, OTA, QTAN, OAF, QAFN, QAF2, QAF2N, QAFH, QAFH2, QFGA2, QFGA2N, QFGAH2, QPF, QPF2, QPF2N, QPHF. QPHF2 OE, QE2 QEH, QEH2 HQP*, HQAF2, HQFGA2, HQPF2 | 42,000
65,000 | |
| NONE USED | NONE USED | |||
| HQP* | QP, QPH*, QT, OTA, QTAN, OAF, QAFN, QAF2, QAF2N, QAFH, QAFH2, QFGA2, QFGA2N, QFGAH2, QPF, QPF2, QPF2N, QPHF, QPHF2, QE, QE2, QEH, QEH2 | |||
| ED4 ED6 HOP. HBL HOS | NONE USED or QP, QPH*, HOP* | |||
| NDGA, NFGA | QPH, BLH | |||
| JXD2(-A), JD6(-A), JXD6(-A), LD6(-A), LXD6(-A), MD6, MXD6, ND6, SND6-B, NXD6, NJJA, NJGA, NLGB, NMG, NNG, NPG, PD6, SPD6-B, PXD6, RD6, RXD6 | QPH, BLH, as | |||
| FD6, FXD6 | NONE USED or QP, BL, QS | |||
| ND6, SND6-B, NXD6, Class J, T, R, or L Fuses | QPH, BLH | |||
| JXD2(-A), JDS(-A), JXDS(-A), LDS(-A), LXDS(-A), MDS, MXDS, NDS, SNDS-B, NXDS, PDS, SPDS-B, PXDS, RDS, RXDS, NDGA, NFGA, NJJA, NJGA, NLGB, NMG, NNG, NPG | NONE USED | QPH*, HOP* | ||
| NONE USED | HQSH, HQPH, HED4, HEDS, NGB | NONE USED or QP, QPH*, HOP* | QP, QPH*, HQP*, QT, QTA, QTAN, QAF, QAFN, QAF2, QAF2N, QAFH, QAFH2, HQAF2, QFGA2, QFGA2N, QFGAH2, HQFGA2, QPF, QPF2, QPF2N, QPHF, QPHF2, HQPF2, QE, QE2, QEH2 | 100,000 |
| HFD6, HFXD6, HFGA, HJD6( A), HJXD6~A), HJGA, HLD6(-A), HLXD6(-A), HLGB, HMD6, HM D6, HMG, HND6, SHND6-B, HNXD6, HNG, HPD6, SHPD6-B, HPXD6, HPG, HRD6, HRXD6, or Class J, T, R, or L Fuses | ED4, EDS, as | |||
| H FD6, H FXD6, or 300V Class T Fuses – 200A Max | NONE USED or QP, BL | |||
| HOGA, HFGA,or 300V Class T Fuses – 600A Max | NONE USED orQPH, BLH | NONE USED or QPH*, HOP* | QPH*, HQP* |
*Type QPH and HQP breakers installed in this panel are limited to 100 amps max. when installed on a circuit capable of delivering fault current greater than 10,000 amps.
| TERNINAALS | WIRE | TORQUE |
| A, B, G, N1 | 2/0-4AWG | 110 LB-INS |
| NEUTRALJGROUND BARS (USE TYPE EC1GB or EC2GB GND BAR KIT ACCESSOR | 10-14 CU/10-12 AL BAWG 6-4AWG | 20 LB-INS 25 LB-INS 35 LB-INS |
| GROUND CONDUCTORS ONLY | (2)or(3) 14 AWG 2 12-10AWG | 20 LB-INS 20 LB-INS |
| N2 ECLK2N NEUTRAL LUG | 2/0-4AWG | 110 LB-INS |
| ECLK1-2 NEUTRAL WG KIT ECLK2 NEUTRAL WG KIT | 2/0-4AWG 2/0-4AWG | 45 LB-INS 135 LB-INS |
| MAN WG TO BUS CONNECTION (1/4-20 NUT) | 45 LB-INS | |
| BONDING SCREW | 45 LB-INS | |
USE COPPER OR AWMINUM 60°/75°C WIRE
SEE BREAKER MARKINGS FOR WIRE SIZE AND TORQUE REQUIREMENTS
ACCESSORIES | |
| DESCRIPTION | CAT. NO. |
| DOOR LOCK | ECQFL2 |
| FILLER PLATE, 1″ | QF3 |
| BREAKER HOLD-DOWN/BARRIER | ECMBR2 |
| SUBFEED WG KIT | ECLK2125 |
| 100-125 AMP MAIN LUG KIT | ECMLK125 |
| STANDBY PWR INTERLOCK KIT | ECSBPK01 ECSBPK02 |
Assembled in Mexico
© 2020 Copyright Siemens lndus1ry, Inc.
® The National Electrical Code is a registered trademark of the National Fire Protection Association.
