Wi-Fi 5 2×2 Outdoor Access Point
User Guide
ion4 2 Wi-Fi 5 2×2 Outdoor Access Point
ANYWHERE EVERYWHERE
Introduction
Thank you for purchasing our ion4_2 Access Point. ion4_2 is a cloud-managed 2×2:2 MU-MIMO Wi-Fi 5 certified Access Point that raises the bar for wireless performance and efficiency.
Packaging Content
ion4_2 Specifications
| Peak Throughput(aggregate) | Upto 1.27 Gbps (867 Mbps for 5 GHz and 400 Mbps for 2.4 GHz) |
| Wi-Fi Standard Support | 802.11a/b/g/n/ac/ac Wave 2 |
| Interface | 1×10/100/1000 BASE-T Ethernet |
| Radio Mode | 2×2 MU-MIMO with 2 spatial streams |
| Mesh Support | Self-creating, Self-healing Mesh |
| Maximum number of SSID (per radio) | 16 |
| Maximum User Support | 128 on 5 GHz and 64 on 2.4 GHz |
| Power Supply | IEEE 802.3af PoE |
| Power Consumption (Max) | 12 W (approx.) |
| Max Transmit Power | 23 dBm for 2.4 GHz, 27 dBm for 5 GHz (will depend on country-specific guidelines) |
| Antenna Type | Integrated directional antennas with 60°H and 15°V beamwidth |
| Antenna Galn | 14 dBI for both 2.4 GHz and 5 GHz |
| Management | Standalone (via GUI) or through on-premise based solution or cloud-based |
| Enclosure Dimensions | 374 x 217 x 76 mm (14.7 x 8.5 x 3 in) |
| Weight | 1.64 kg |
| Operating Temperature | -15t to 60’C |
| Certifications | IP67, FCC Class A, CE, Passpoint 2.0, RoHS 3.0 |

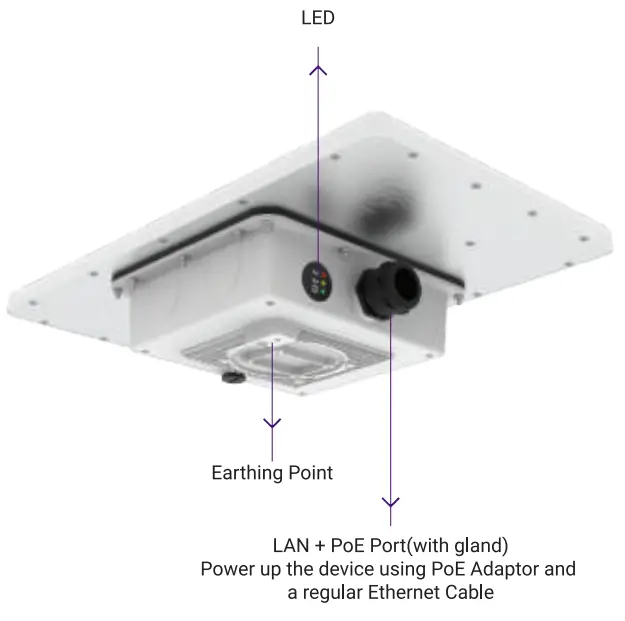

Product Overview
Mounting of ion4_2 Access Point
The ion4_2 can be mounted on a pole or to a wall. Perform the following steps for appropriate installation.
- Align L Plate with the holes at the back of Access Point
- Use the provided screws to fix the plate onto the Access Point. The mounting bracket is fixed onto the mounting holes on the Access Point.
Pole Mount

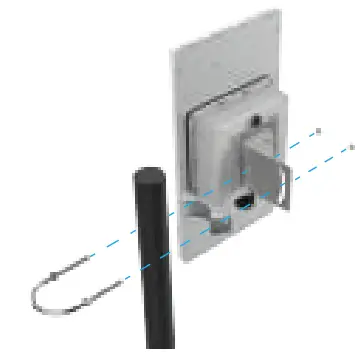

- Align the L Plate mounted Access Point with pole clamp & U-Bolt
- Pass the U-Bolt through the cuts of pole clamp & L Plate. Secure it in place with Hex Nuts.

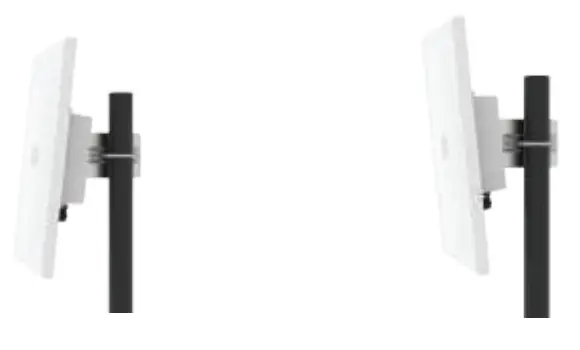

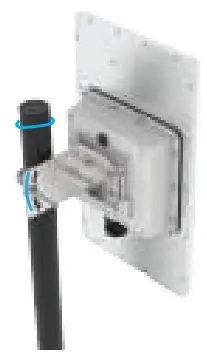

Access Point has the freedom of movement along with the vertical & horizontal axis.
The final alignment of Access Point on a pole mounting Se “ eh as shown below
Access Point has the freedom of movement along with the vertical & horizontal axis.
The final alignment of Access Point on a pole mounting Se “ eh as shown below
Note: The pole mounting is designed for poles of diameter 40 mm to 60 mm. For mountings on larger size poles upto 140 mm, contact at [email protected]

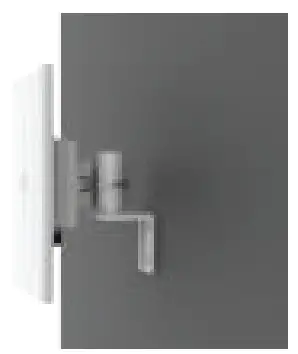

Wall Mount
To mount the ion4 2 on a wall, use the wall mounting bracket drywall screws, and screw anchors (* The entire wall mounting assembly is sold seperately).

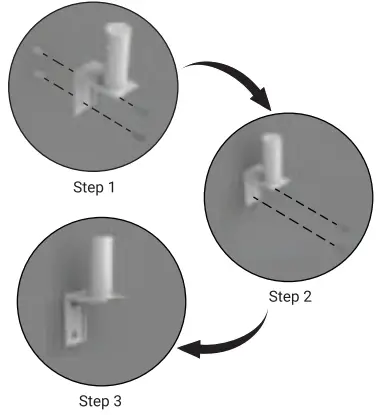

- Take the reference from the wall mounting bracket and mark the position of the holes on the wall.
- Use the drill machine to drill 2 holes on respective marked positions.
- Push the screw anchors into the holes with a hammer.
- Align the drilled holes with the holes of wall mounting bracket.
- Insert the drywall screws through the holes of mounting bracket into the wall.
- Wall mounting bracket is fixed to the wall.
- Mount the device on to the wall mounting bracket as discussed in pole mounting process
WARNING: HFCL is not held liable for any damages incurred during the process.
Getting the ion4_2 Online
Step 1: Power up

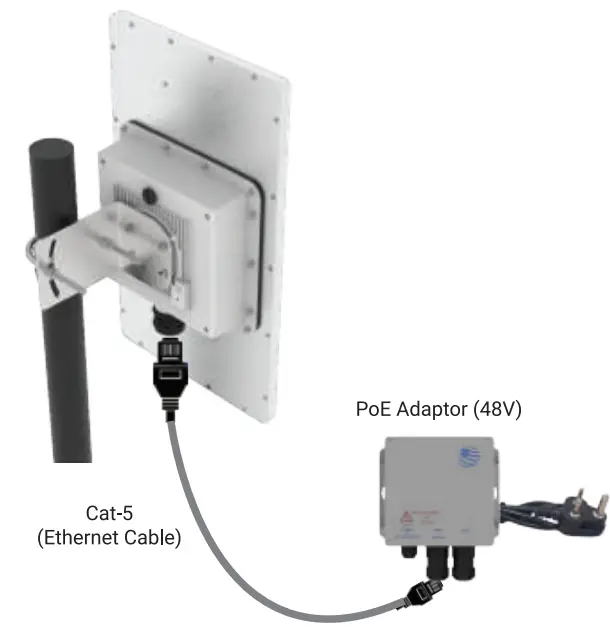

The Access Point can be powered up using PoE adaptor (48V) as shown below:
Note: Plug and Adaptor will vary by country/region
Power PoE Adaptor
Step 2: Connect to the network
Section 1: Standalone AP

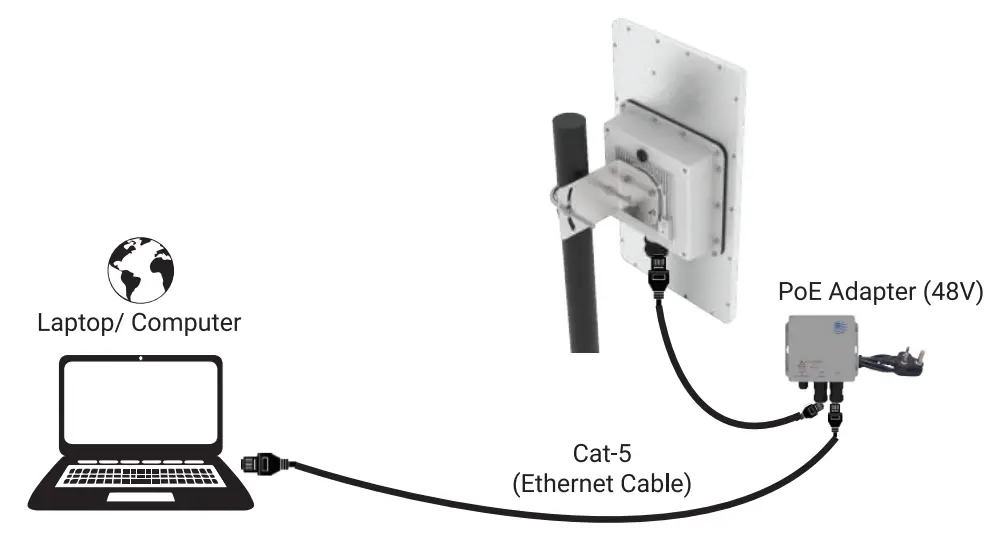

Follow the steps mentioned below and connect the Access Point to a network :
- Connect an ethernet cable to the computer.
- Connect the other end of ethernet cable to the data port on PoE adapter
- Connect ion4_2 PoE supported ethernet port to PoE adapter power port. Device will be powered on
- Configure the computer with a same domain static IP 192.168.1.X and a subnet mask of 255.255.255.0 (X is from 2 to 255)
- Open the web browser and enter the Access Point static IP address in the address bar 192.168.1.1

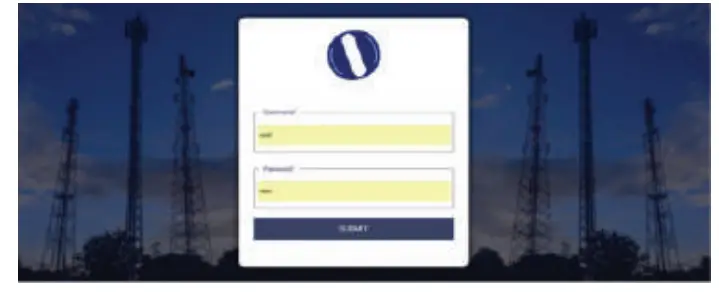

- A login screen will appear.
- Enter the default login credential details: User- root Password-hfcll@ion
Section 2: Controller Managed AP
Follow the steps mentioned to connect Access Point to a network :
- Connect an Ethernet cable to the computer.
- Power-up the AP through PoE adaptor
- Connect the AP to DHCP network and Internet
- Login to HFCL 10 cloud controller (cNMS) iocloud.hfcl.com with credentials provided.
4a. To get cNMS login credential, please send request email to [email protected] with below detailsCustomer Name Customer email address Customer address Customer contact nirnber Distributor/ Retailer Name No.of AP Purchased Country I . - Add AP group under configuration
- Add APs in the AP group
- Create SSID in the AP group up using
- Refer our website io.hfcl.com for detailed information to configuie AP through cNMS

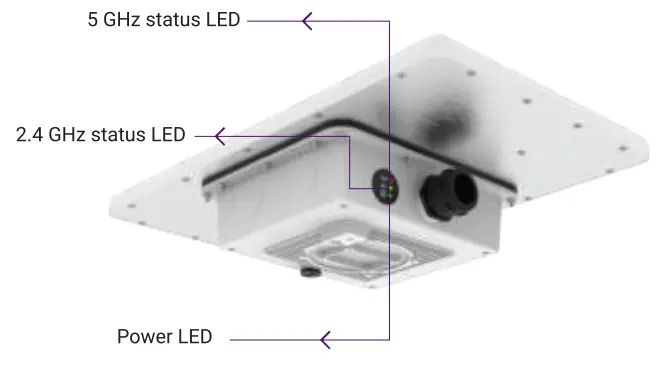

Step 3: Check the LED status
| LED Color | Status |
| Power LED Green | Green color notifies the user that the device is powered ON |
| 2.4 GHz Status LED | Solid yellow color notifies the user that the 2.4 GHz radio is active and blinks while data is being transmitted on 2.4 GHz radio |
| 5 GHz Status LED | Solid red color notifies the user that the 5 GHz radio is active and blinks while data is being transmitted on 5 GHz radio |
Safety Precautions
Observe the following safety precautions to avoid damage to the ion4_2 Access Point:
Do not power the device during installation Keep away from high voltage cables Do not power off the unit in the middle of an upgrade process The gland should be ground facing all the time Do not open the enclosure Fasten the device tightly Make sure the earthing wire is connected properly to the earthing points
Part Number: QSG-01-0008
Revision: AContact Us:
Email: [email protected]
Website: www.hfcl.com
www.io.hfcl.com
8, Commercial Complex, Masjid Moth,
Greater Kailash-II, New Delhi- 110048
HFCL Limited All Rights Reserved. 10 Networks and the 10 logo are registered trademarks of HFCL Limited.
Specifications are subject to change without notice.
