Quick Start Guide
ad infinitum
Sleek Smart Secure
ion4xi

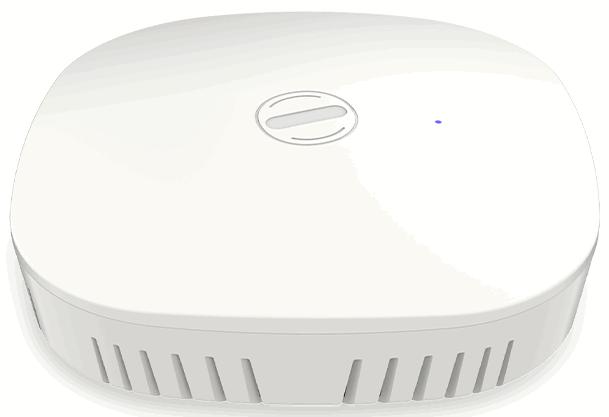

ion4xi Wi-Fi 6 2×2 Indoor Access Point
ANYWHERE EVERYWHERE
Introduction
Thank you for choosing ion4xi Wireless Access Point with 2×2.2 Multi-User MIMO and 802.11ax compliance.

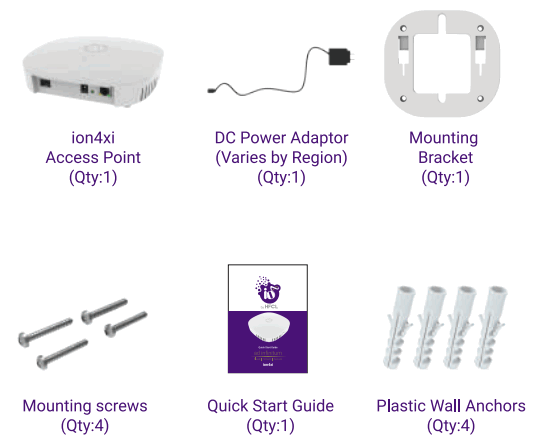

Packaging Content
ion4xi Specifications
| Peak Throughput(aggregate) | Up to 1.78 Gbps |
| Wi-Fi Standard Support | 802.11 a/b/g/n/ac/ac Wave 2/ax |
| Ethernet support/ Ports/Interface | 1 X 10/100/1000 BASE-T Ethernet 1 X 2500 Base X Optical Ethernet SFP DC Power jack |
| MU-MIMO | 202:2 |
| Mesh Support | Self-creating, Self-healing EasyMesh |
| Maximum number of SSID (per radio) | 16 |
| Maximum User Support | 1024 |
| Power Supply | IEEE 802.3at PoE/PoE+ or + 12V DC Power Adaptor |
| Power Consumption (Max) | 20 W (approx.) |
| Max Transmit Power | 2.4 GHz— up to 30 dBm & 5 GHz— up to 30 dBm (will depend on country specific guidelines) |
| Antenna Type | Integrated antennas |
| Antenna Gain | 4 dBi for both 2.4 GHz and 5 GHz |
| Management | Standalone (via GUI) or through on-premise based solution or cloud-based |
| Enclosure Dimensions | 180 x 180 x 50 mm (7.09 x 7.09 x 1.97 inch) |
| Weight | 0.60 kg |
| Operating Temperature | 0°C to 50°C |
| Certifications | FCC Class B, CE, Passpoint 2.0, EasyMesh, WPA3, RoHS 3.0 |

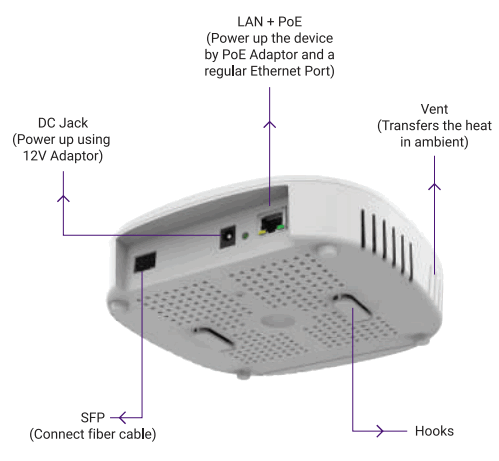

Product Overview

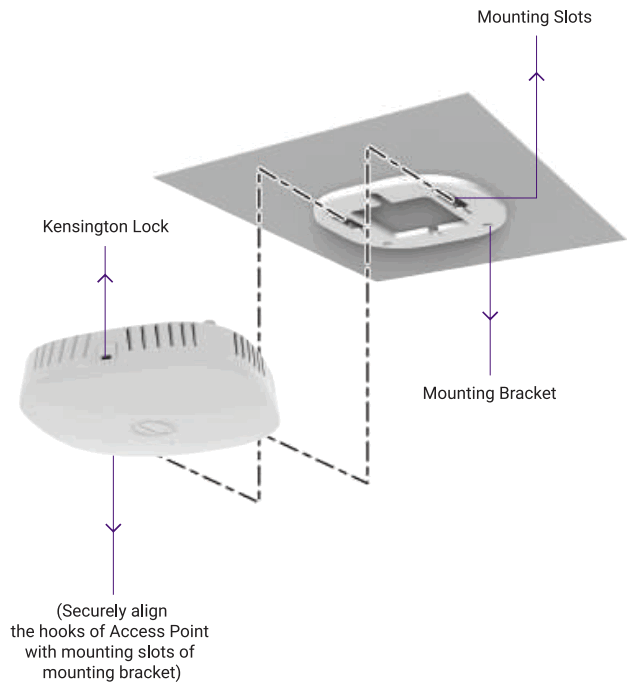

Mounting of ion4xi Access Point

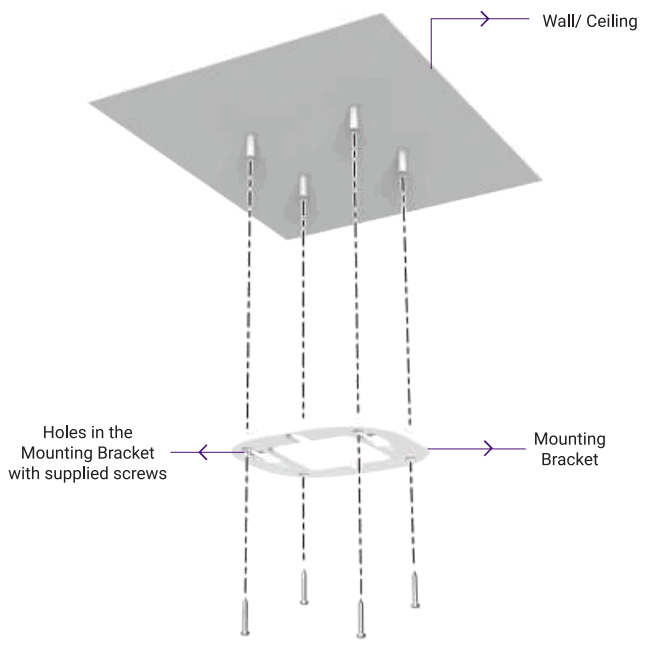

- Place the mounting bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert the plastic wall anchors.
- Use supplied screws and attach mounting bracket on the wall.
Note. Make sure that mounting bracket is tightly installed before mounting the Access Point on the wall or ceiling.
- Align the mounting slots of Access Point with the hooks of the mounting bracket, ensure that it is properly hinged.

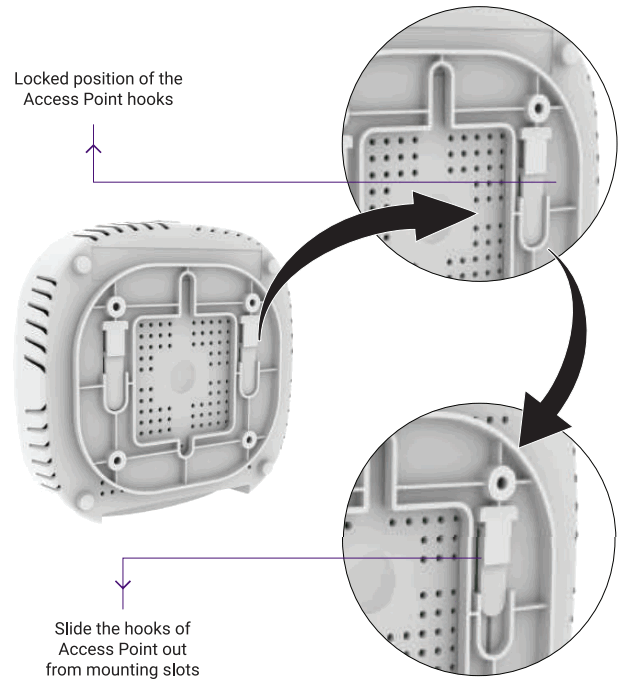

Unmounting of ion4xi Access Point
- Slide the hooks of Access Point out from the mounting slots of mounting bracket.
WARNING: HFCL is not held liable for any damages incurred during the process.
WARNING: HFCL is not held liable for any damages incurred during the process.Getting the ion4xi Online
Step 1: Power up
The Access Point can be powered up using PoE adaptor (48V) or DC adaptor (12V) as shown below.

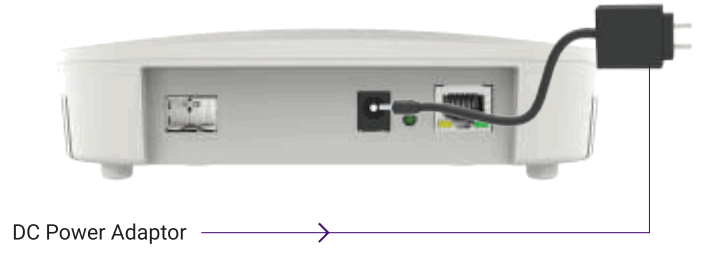

Power up using DC Power Adaptor
Note: Plug and Adaptor will vary by country/ region

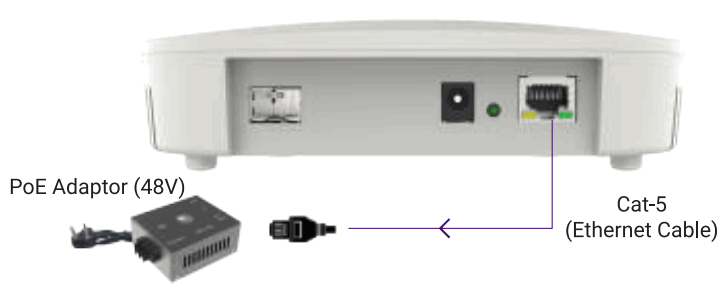

Power up using PoE Adaptor
Step 2: Connect to the network
Section 1: Standalone AP
Follow the steps mentioned below and connect the Access Point to a network
- Connect an ethernet cable to the computer.
- Connect the other end of the ethernet cable to the LAN port on the ion4xi Access Point or use a PoE adaptor to do so.
- Open the web browser and enter the Access Point static IP address in the address bar 192.168.1 1

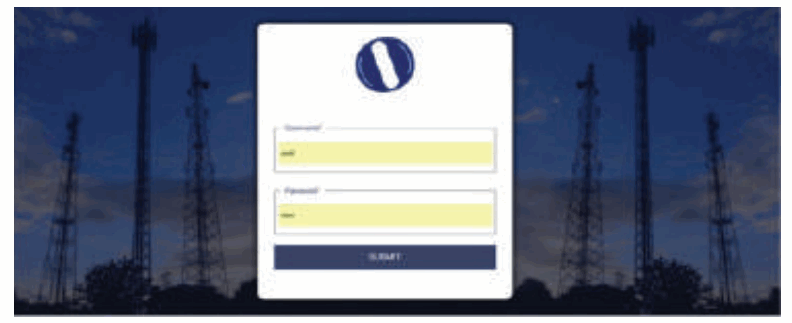

- A login screen will appear.
- Enter the default login credential details·
User- root, Password- hfcl!@ion

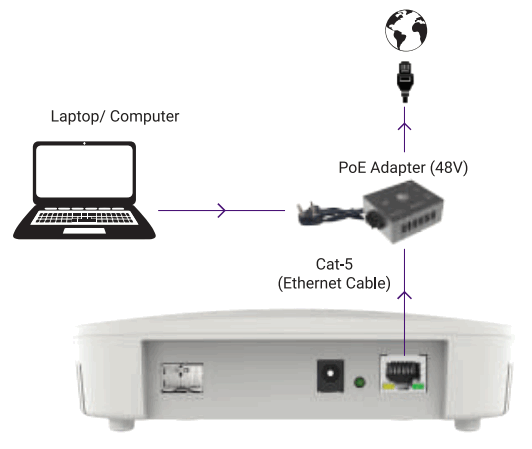

Section 2: Controller Managed AP
Follow the steps mentioned to connect Access Point to a network
- Connect an Ethernet cable to the computer.
- Power-up the AP through PoE adapter or PoE switch
- Connect the AP to DHCP network and Internet
- Login to HFCL 10 cloud controller (cNMS) iocloud.hfcl.com with credentials provided.
4a. To get cNMS login credential, please send request email to [email protected] with below detailsCustomer Name Customer email address Customer address Customer contact number Distributor/ Retailer Name No.of A Purchased Country - Add AP group under configuration
- Add APs in the AP group
- Create SSID in the AP group
- Refer our website io.hfcl.com for detailed information to configure AP through cNMS

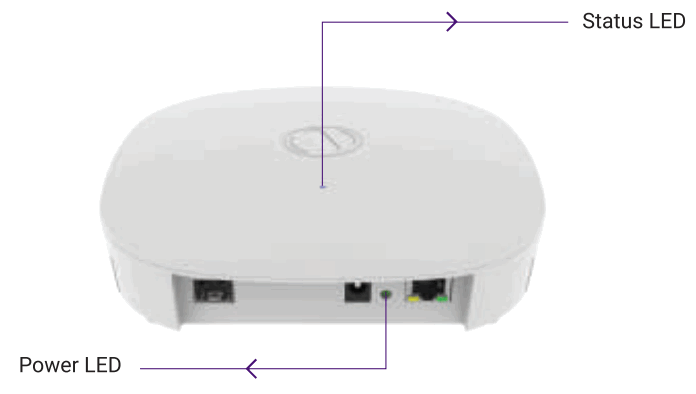

Step 3: Check the LED status
| LED Color | Status |
| Power LED Green | Green color notifies the user that the device is powered ON |
| Status LED Green | Green color notifies the user that the 2.4 GHz radio is active and blinks while data is being transmitted on 2.4 GHz radio |
| Status LED Blue | Blue color notifies the user that the 5 GHz radio is active and blinks while data is being transmitted on 5 GHz radio |
| Status LED Cyan | Cyan color notifies the user that both 2.4 GHz & 5 GHz radio are active and blinks while data is being transmitted on both radios |
Safety Precautions
Observe the following safety precautions to avoid damage to the ion4xi Access Point:
Do not subject the device to high temperatures Keep away from high voltage cables Disconnect the device before cleaning it Do not wipe the device with a damp cloth Do not open the enclosure of the Access Point Fasten the device tightly with the mount
Part Number QSG-01-0014
Revision: A
Contact Us:
Email: [email protected]
Website: www.hfcl.com
wwwio.hfcl.com
8, Commercial Complex, Masjid Moth,
Greater Kailash-II, New Delhi- 110048
HFCL Limited All Rights Reserved. 10 Networks and the 10 logo are registered trademarks of HFCL Limited.
Specifications are subject to change without notice.
