Quick Start Guide
ion4
Access Point
ANYWHERE EVERYWHERE
Introduction
Thank you for purchasing our ion4 Access Point. ion4 is a cloud-managed 2×2.2 MU-MIMO Wi-Fi 5 certified Access Point that raises the bar for wireless performance and efficiency.

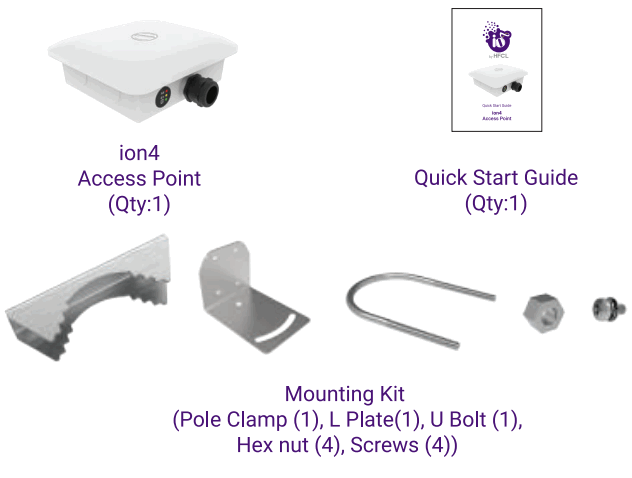

Packaging Content
ion4 Specifications
| Peak Throughput(aggregate) | Up to 1.27 Gbps (867 Mbps for 5 GHz and 400 Mbps for 2.4 GHz) |
| Wi-Fi Standard Support | 802.11 a/b/g/n/ac/ac Wave 2 |
| Interface | 1 X 10/100/1000 BASE-T Ethernet |
| Radio Mode | 2×2 MU-MIMO with 2 spatial streams |
| Mesh Support | Self-creating, Self-healing Mesh |
| Maximum number of SSID (per radio) | 16 |
| Maximum User Support | 128 clients on 5 GHz & 64 on 2.4 GHz |
| Power Supply | IEEE 802.3af PoE |
| Power Consumption (Max) | 12 W (approx.) |
| Max Transmit Power | 23 dBm for 2.4 GHz , 27 dBm for 5 GHz (will depend on country-specific guidelines) |
| Antenna Type | Integrated directional antennas with 90° beamwidth |
| Antenna Gain | 8 dBi for 5 GHz, 8 dBi for 2.4 GHz |
| Management | Standalone (via GUI) or through on-premise based solution or cloud-based |
| Enclosure Dimensions | 185 x 170 x 71 mm or 7.28 x 6.69 x 2.79 inches |
| Weight | 0.75 kg |
| Operating Temperature | -15°C to 60°C |
| Certifications | FCC Class A, CE, Passpoint 2.0, IP67, RoHS 3.0 |

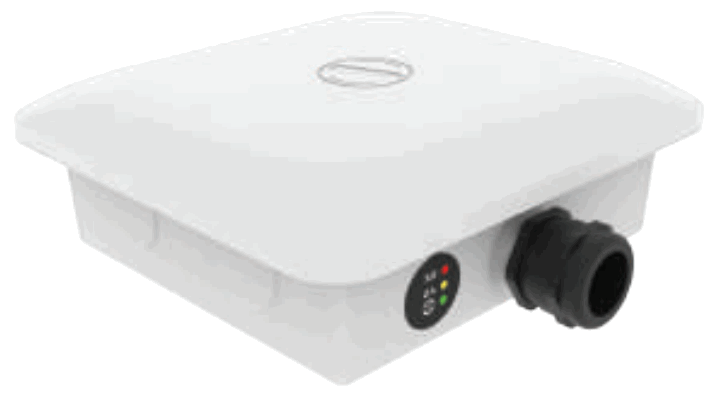

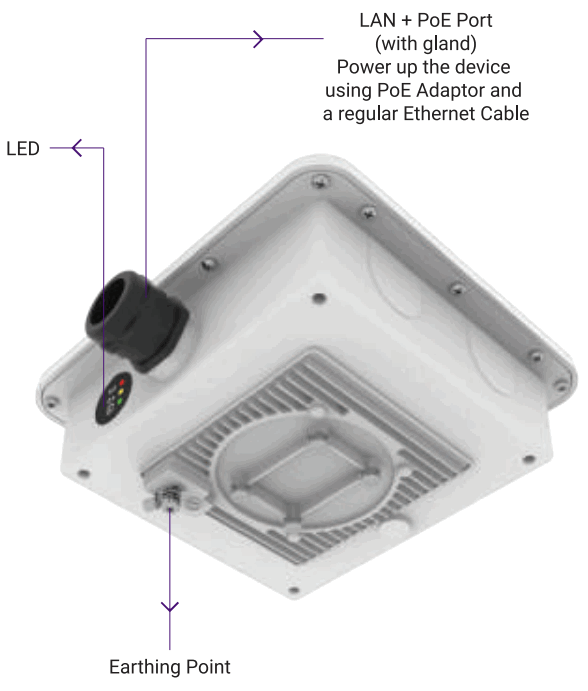

Product Overview
Mounting of ion4 Access Point
The ion4 can be mounted on a pole or to a wall. Perform the following steps for appropriate installation

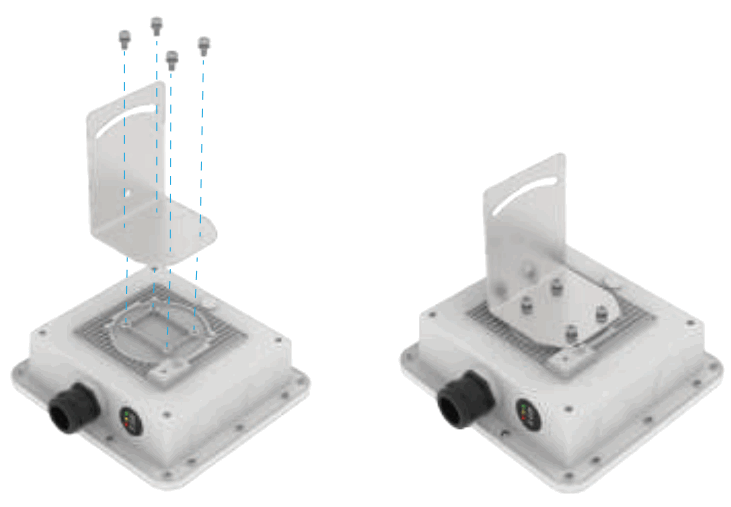

- Align L Plate with the holes at the back of Access Point
- Use the provided screws to fix the plate onto the Access Point.
The mounting bracket is fixed onto the mounting holes on the Access Point
Pole Mount

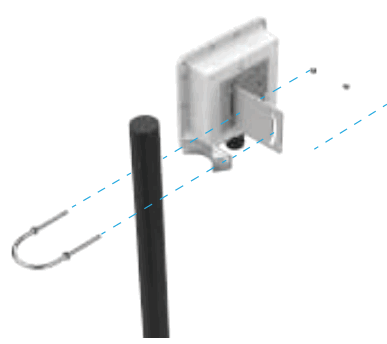

- Align the bracket mounted Access Point with pole holder & U-Bolt
- Pass the U-Bolt through the cuts of pole holder & mounting bracket.
Secure it in place with the screws.
- Access Point has the freedom of movement along with the vertical & horizontal axis

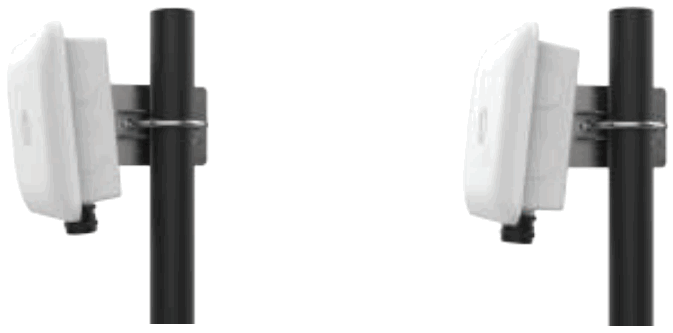

- The final alignment of Access Point on a pole mounting as shown below
Note: The pole mounting is designed for poles of diameter 40 mm to 60 mm. For mountings on larger size poles upto 140 mm, contact at [email protected]

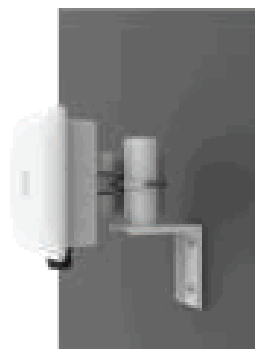

Wall Mount
To mount the ion4 on a wall, use the wall mounting bracket, drywall screws, and screw anchors ( The entire wall mounting assembly is sold seperately)

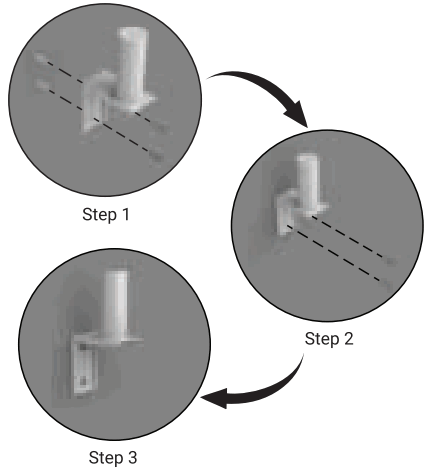

- Take the reference from the wall mounting bracket and mark the position of the holes on the wall.
- Use the drill machine to drill 2 holes on respective marked positions.
- Push the screw anchors into the holes with a hammer.
- Align the drilled holes with the holes of wall mounting bracket.
- Insert the drywall screws through the holes of mounting bracket into the wall.
- Wall mounting bracket is fixed to the wall.
- Mount the device on to the wall mounting bracket as discussed in pole mounting process.
WARNING: HFCL is not held liable for any damages incurred during the process.
Getting the ion4 Online
Step 1: Power up

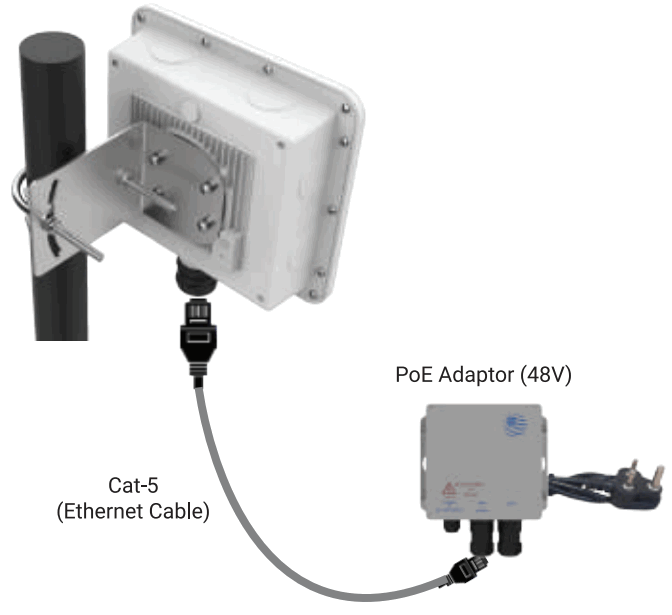

he Access Point can be powered up using PoE adaptor (48V) s shown below:
Note: Plug and Adaptor will vary by country/ region

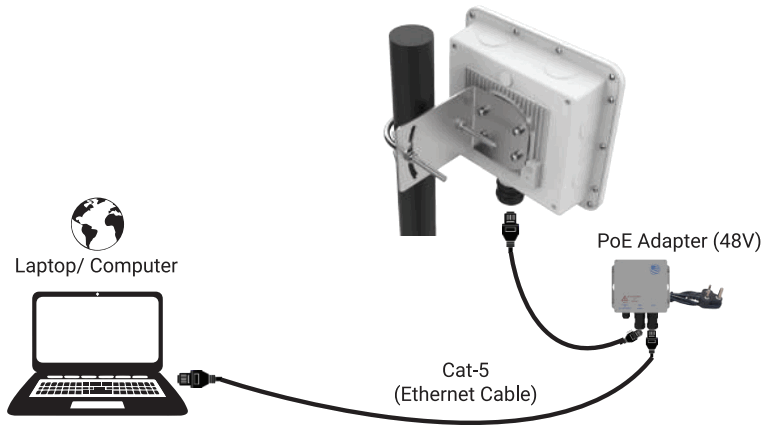

— Power up using PoE Adaptor —
Step 2: Connect to the network
Section 1: Standalone AP
Follow the steps mentioned below and connect the Access Point to a network
- Connect an ethernet cable to the computer.
- Connect the other end of ethernet cable to the data port on PoE adapter
- Connect Ion4 PoE supported ethernet port to PoE adapter power port. Device will be powered on
- Configure the computer with a same domain static IP 192.168.1.X and a subnet mask of 255.255.255.0 (X is from 2 to 255)
- Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1

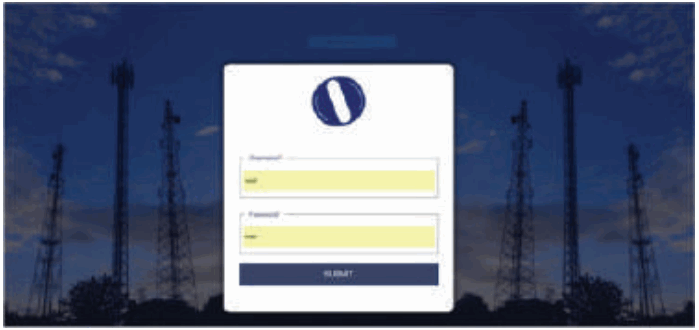

- A login screen will appear.
- Enter the default login credential details:
User- root, Password- hfcl!@ion
Section 2: Controller Managed AP
Follow the steps mentioned below and connect the Access Point to a network
- Power-up the AP through PoE adapter or PoE switch
- Connect the AP to DHCP network and Internet
- Login to HFCL IO cloud controller (cNMS) cnms.ionetworks.in with credentials provided
- Refer our website io.hfcl.com for detailed information to configure AP through cNMS

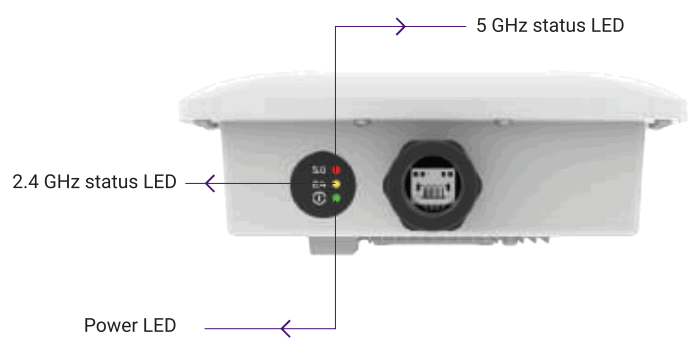

Step 3: Check the LED status
| LED Color | Status |
| Power LED Green | Green color notifies the user that the device is powered ON |
| 2 4 GHz Status LED | Solid yellow color notifies the user that the 2.4 GHz radio is active and blinks while data is being transmitted on 2.4 GHz radio |
| 5 GHz Status LED | Solid red color notifies the user that the 5 GHz radio is active and blinks while data is being transmitted on 5 GHz radio |
Safety Precautions
Observe the following safety precautions to avoid damage to the ion4 Access Point:
Do not power the device during installation Keep away from high voltage cables Do not power off the unit in the middle of an upgrade process The gland should be ground facing all the time Do not open the enclosure Fasten the device tightly Make sure the earthing wire is connected properly to the earthing points
Part Number: QSG-07-007 7
Revision. A Contact Us:
