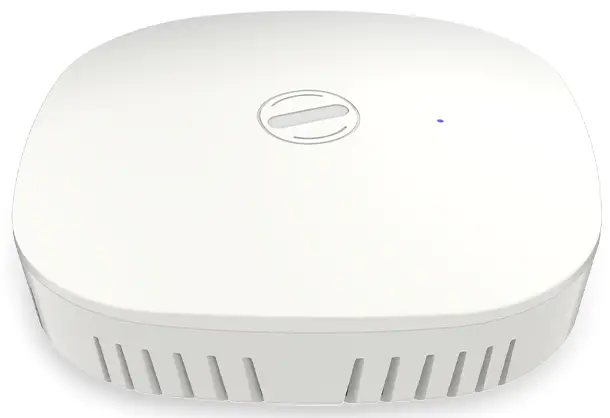

ion4i Wi-Fi 6 2×2 Indoor Access Point User Guide

Contents hide

Thank you for choosing ion4i_w Wireless Access Point with 2×2:2 Multi-User MIMO and 802.11ac Wave 2 compliance.

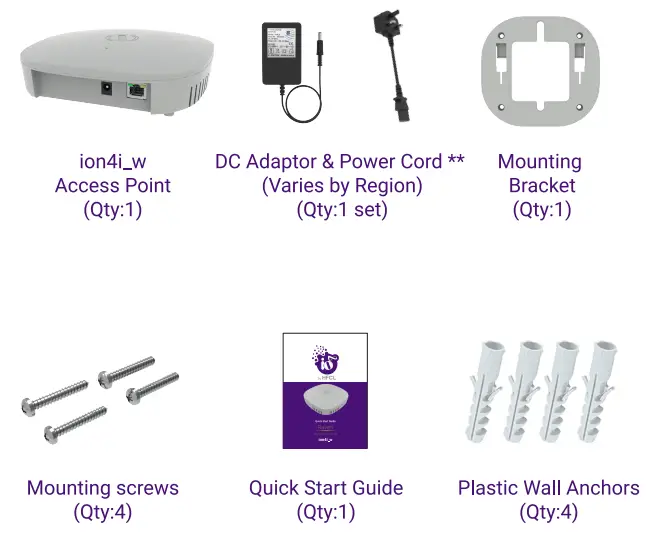

** Power cord is placed under the tray inside the packaging.

Peak Throughput(aggregate)	Up to 1.27 Gbps
Wi-Fi Standard Support	802.11 a/b/g/n/ac/ac Wave 2/ac
Ethernet support/ Ports/Interface	1 X 10/100/1000 BASE-T Ethernet
MU-MIMO	2×2:2
Mesh Support	Self-creating, Self-healing Mesh
Maximum number of SSID (per radio)	4
Maximum User Support	128 on 5 GHz & 64 on 2.4 GHz
Power Supply	+ 12V DC Power Adaptor (varies by region)
Power Consumption (Max)	11.5 W approx
Max Transmit Power	2.4 GHz— up to 25 dBm & 5 GHz— up to 25 dBm (will depend on country specific guidelines)
Antenna Type	Integrated antennas
Antenna Gain	6 dBi for both 2.4 GHz and 5 GHz
Management	Standalone (via GUI) or through on-premise based solution or cloud-based
Enclosure Dimensions	180 x 180 x 50 mm (7.09 x 7.09 x 1.97 inch)
Weight	0.37 kg
Operating Temperature	0°C to 50°C
Certifications	FCC Class B, CE, Passpoint 3.0, WPA3, RoHS 3.0

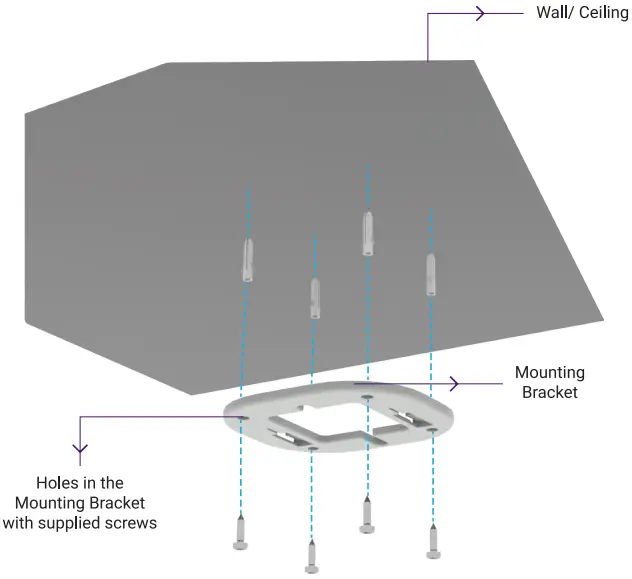

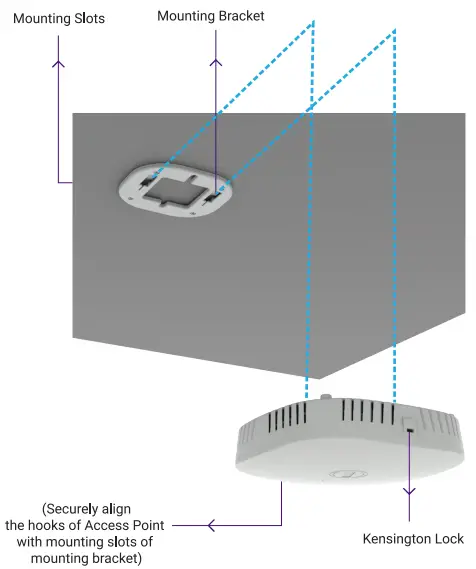

Place the mounting bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert the plastic wall anchors.
Use supplied screws and attach mounting brackets on the
Note: Make sure that mounting bracket is tightly installed before mounting the Access Point on the wall or ceiling.
Align the mounting slots of Access Point with the hooks of the mounting bracket, ensure that it is properly hinged.

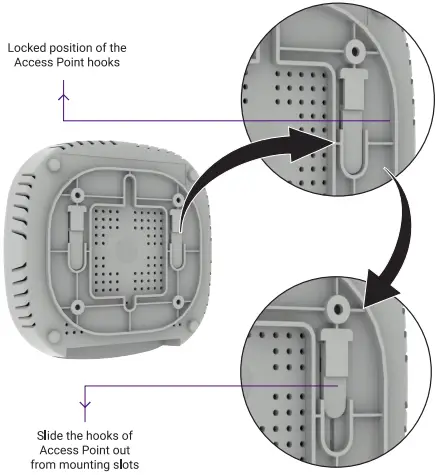

Slide the hooks of Access Point out from the mounting slots of mounting bracket.

WARNING: HFCL is not held liable for any damages incurred during the process.

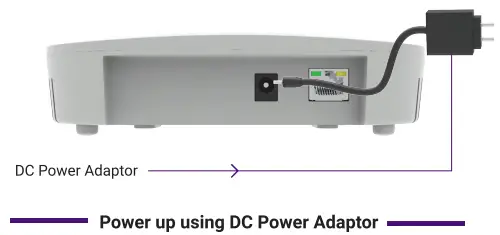

Step 1: Power up

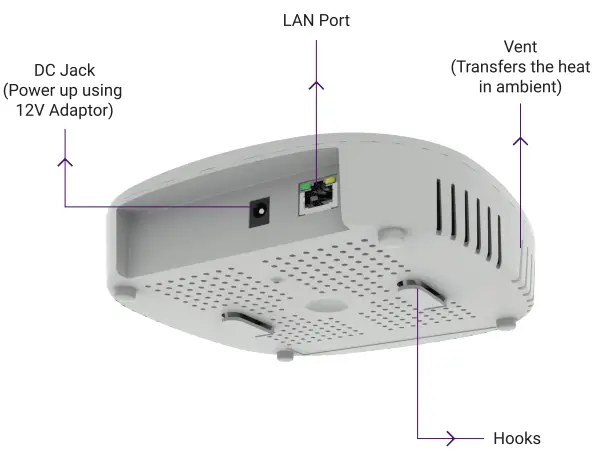

The Access Point can be powered up using 12V DC adaptor as shown below:

Note: Plug and Adaptor will vary by country/ region

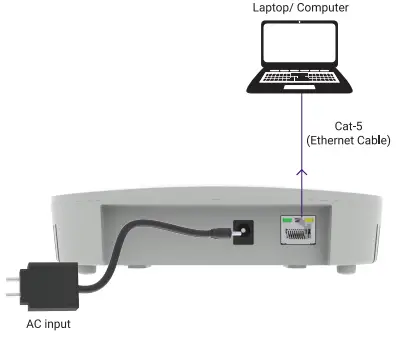

Step 2: Connect to the network

Section 1: Standalone AP

Follow the steps mentioned below and connect the Access Point to a network.

Connect an ethernet cable to the computer.
Connect the other end of the ethernet cable to the LAN port on n4i_w Access Point.
Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1

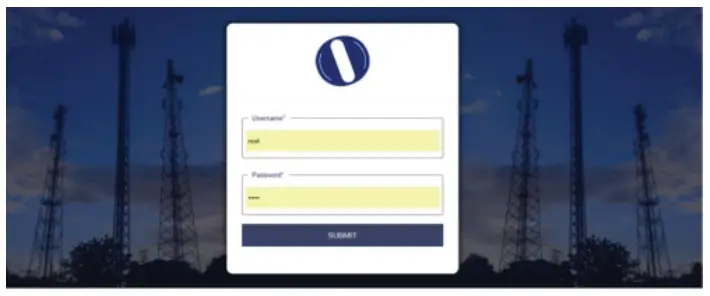

A login screen will appear.
Enter the default login credential details: User- root, Password- hfcI!@ion

Section 2: Controller Managed AP

Follow the steps mentioned to connect Access Point to a network:

Connect an Ethernet cable to the computer.
Power-up the AP through J 2V DC adaptor
Connect the AP to DHCP network and Internet
Login to HFCL IO cloud controller (cNMS) iocloud.hfcI.com with credentials provided
4a. To get cNMS login credential, please send request email to [email protected] with below details
Customer Name Customer email address Customer address Customer contact number Distributor/
Retailer Name
No.of AP
Purchased
Country
Add AP group under configuration
Add APs in the AP group
Create SSID in the AP group
Refer our website hfcI.com for detailed information to configure AP through cNMS

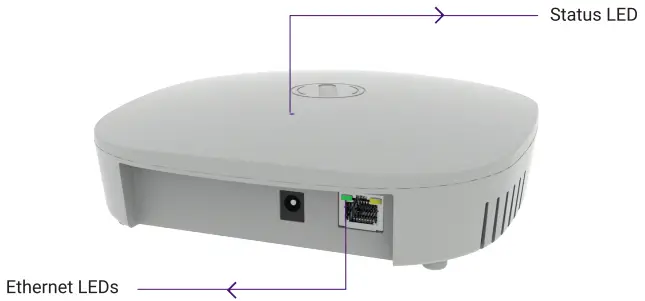

Step 3: Check the LED Status

LED Color	Status
Ethernet LEDs	Green acid yellow ethernet LEDs indicates ethernet
status rED elue (solid)	Solid blue color notifies the either 2.0 GHZ radio, 5 GHZ radio or both radios
Status LED Blue (Blinking)	a stmitt din either 2.4 GHz radio, 5 GHz radio””

Do not subject the device to high temperatures

Keep away from high voltage cables

Disconnem the device before cleaning it

Do not wipe the device with a damp cloth

Do not open the enclosure of the Access Point

Fasten the device tightly with the mount

Pan Number: QSG-01-0004 Revision: A
