LUMEL Series
LED | Emergency
Light

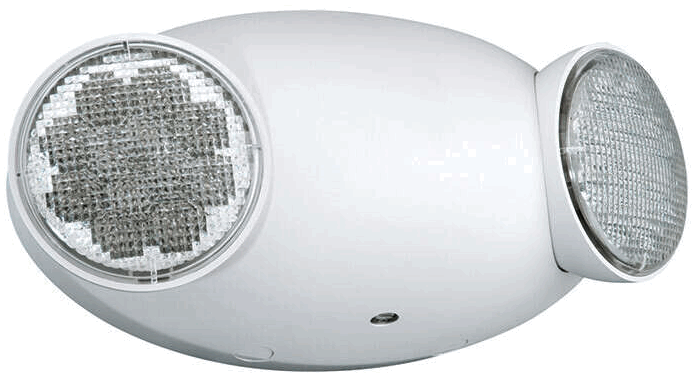

LUMEL Series LED Emergency Light
CUSTOMER NAME________________
Project Name_______________________
Date______________________________
Type______________________________
Catalog Number_____________________
- LED life-cycle of more than 10 years
- Quick installation
- Dual-voltage 120 or 277V AC input
- Remote capacity or extended runtime option
- Damp Location Listed 20°C to 30°C (68°F to 86°F)
- Round or Square, Fully adjustable lamp-heads
- Provided with test switch and AC-On indicator
- Wall or Ceiling mount
SPECIFICATIONS
APPLICATION
- The LUMEL series can be applied in stairwells, hallways, offices and commercial applications
CONSTRUCTION
- The white or black housing and lamp-heads are made of high impact UL flame rated thermoplastic
INSTALLATION
- Snap together design for quick and easy installation with option of Wall or Ceiling mount
ELECTRICAL
- Remote capacity unit will run a double-head remote or 2 single-head remotes of either the Lumination LUR Indoor or Outdoor Remotes
- Includes long-life Nickel Cadmium(NiCad) or Nickel Metal Hydride(NiMh) battery for UL recognized 90 minute emergency lighting
- Remote Capacity(RC) models have a minimum runtime of 120 minutes when no remotes are installed
CERTIFICATIONS
- UL924 Listed for Damp Location
- NFPA 101 and NFPA 70
- OSHA
- CEC T20 Compliant
WARRANTY
- 2 year full unit warranty
- See Lumination Standard Warranty for additional information
ORDERING GUIDE
| Catalog Number | Description |
| LUMEL | White Finish, Round Head LED Emergency Light , 120/277 Input, NiCad Battery, 3 VDC, 1 Watt, CEC T20 Compliant |
| LUMELB | Black Finish, Round Head LED Emergency Light, 120/277 Input, NiCad Battery, 3 VDC, 1 Watt, CEC T20 Compliant |
| LUMELRC | White Finish, Round Head LED Emergency Light, 120/277 Input, NiMh Battery, Remote Capacity, 3VDC, 1Watt |
| LUMELRCB | Black Finish, Round Head LED Emergency Light, 120/277 Input, NiMh Battery, Remote Capacity, 3VDC, 1Watt |
| LUMELSQ | White Finish, Square Head Emergency Light, 120/277VAC Input, NiCad Battery, 3.6VDC Output |
| LUMELRCSQ | White Finish, Square Head Emergency Light, 120/277VAC Input, NiMh Battery, Remote Capacity, 3.6VDC Output |

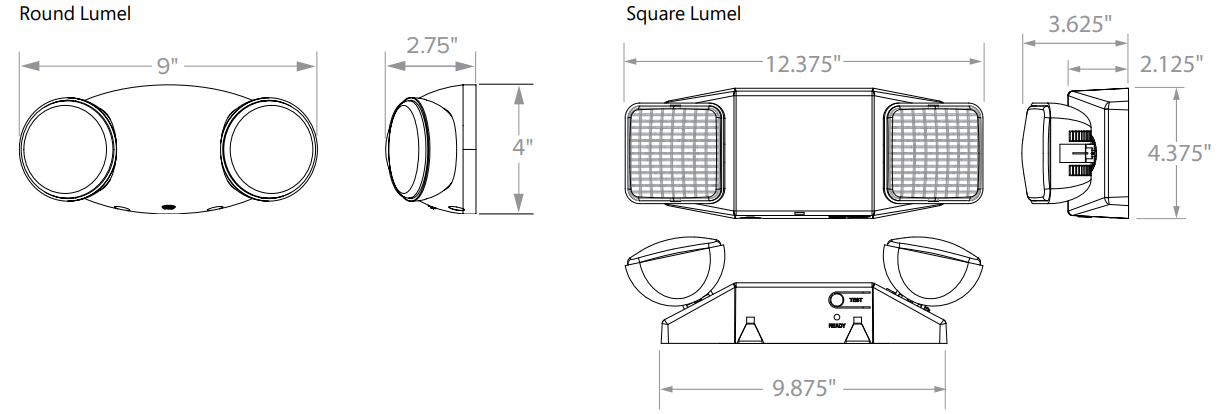

DIMENSIONS
| Single Carton Weight | 1.00 lbs. |
| Master Carton Quantity | 12 each |
ENERGY CONSUMPTION
| 120VAC | 277VAC | |
| LUMEL | .56W | .54W |
| LUMELRC | .92W | 1.62W |
| LUMELSQ | 1.8W | 1.8W |
| LUMELRCSQ | 2.5W | 2.5W |

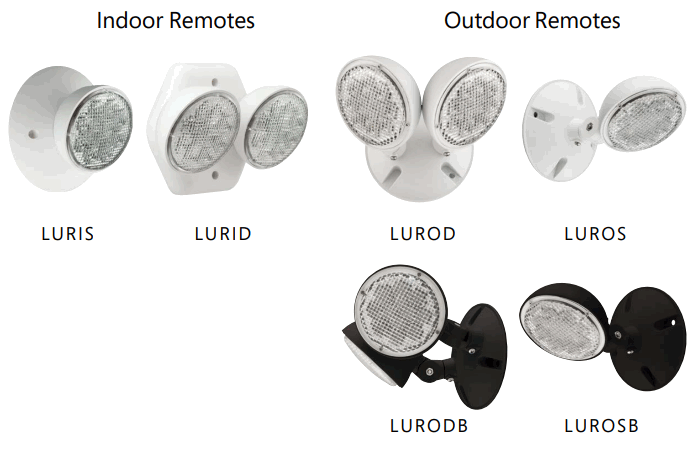

ACCESSORIES (ORDER SEPARATELY)
| Catalog Number LURIS | Description |
| LURIS | Indoor Remote, Single Round Head, White |
| LURID | Indoor Remote, Double Round Head, White |
| LUROS | Outdoor Wet Location Remote, Single Head, White |
| LUROD | Outdoor Wet Location Remote, Double Head, White |
| LUROSB | Outdoor Wet Location Remote, Single Head, Black |
| LURODB | Outdoor Wet Location Remote Double Head, Black |
*Powered by LUMEL Emergency Light with Remote Capacity

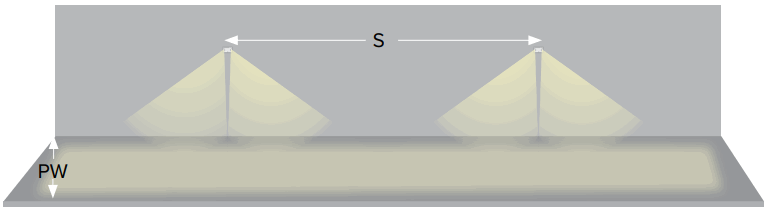

APPLICATION INFORMATION
1 fc Average
| Path Width (PW) | Spacing (S) |
| 6′ | 16′ |
Note: Meets Life Safety Code minimum illuminance of 0.1 fc and average illuminance of 1.0 fc. Assumes open space with no obstructions, ceiling height of 9′ and reflectances of 80/50/20.
Photometry files available on the Lumination website
currentlighting.com/lumination
© 2022 HLI Solutions, Inc. All rights reserved. Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.
Rev 08/26/22
LUM_LUMEL_SPEC_R01
