Lumak Pro 10471863 Damp Proof Led Luminaire Instruction Manual

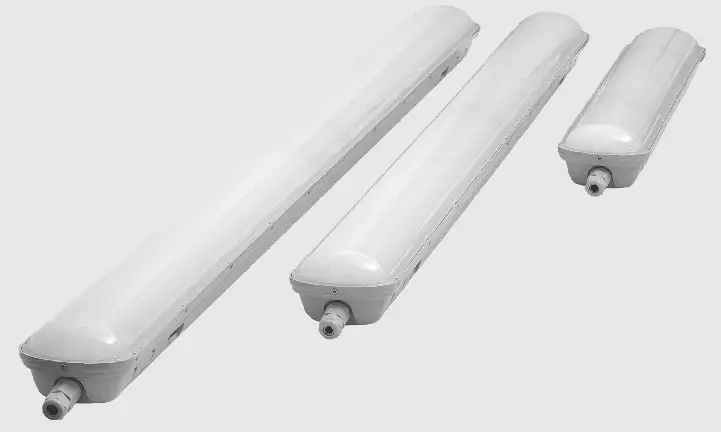

10471863 Damp Proof LED Luminaire
Instruction Manual
10471863
10471864
10471865

Assembly instructions

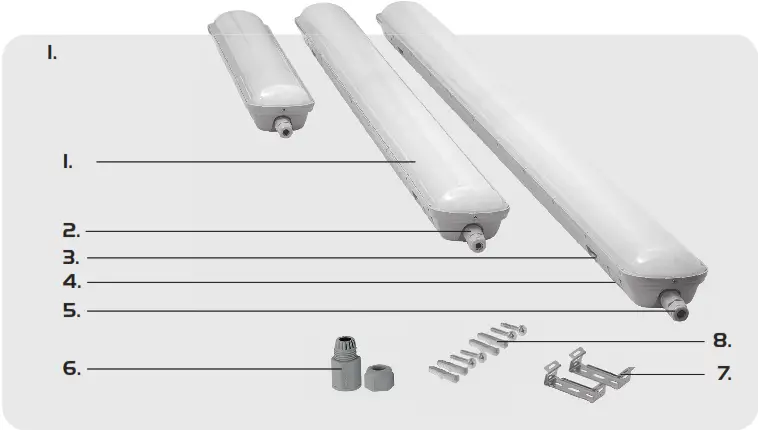

Description

1. Luminaires
2. Cable inlet
3. Fixing slots
4. Switch box
5. Cable fixing screw
6. Extra cable fixing
7. Ceiling mount clamps
8. 4 x Screws / plugs

Operation

Caution: First disconnect the power supply for this connection.

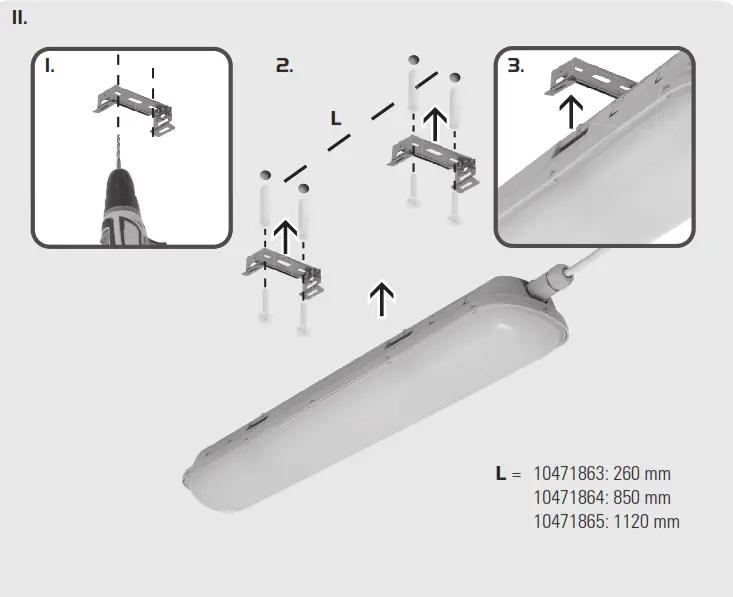

1. Select an installation location without pipes or cables behind it. Mark the fastening holes, and drill the holes for the clamps. Ensure that these are positioned according to the fixing slots in the luminaire.
2. Insert the plugs, and fix the ceiling mount clips in place with the screws.
   Caution: Make sure the fasteners are suitable for the ceiling material.
   Choose settings (see section III) and connect the luminaire to the power supply (see section IV).
3. Attach the luminaire to the ceiling mount clips by pressing firmly.

Settings

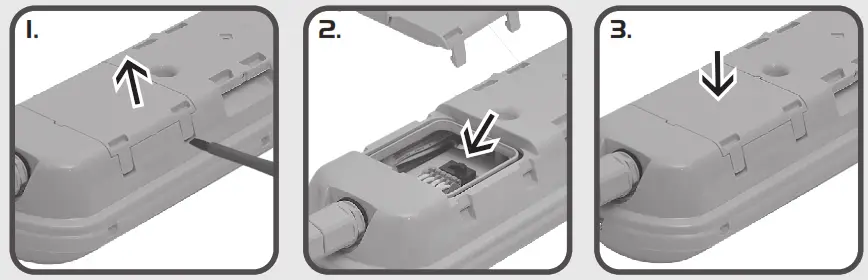

1. Open the cover of the switch box with a screwdriver.
2. Choose the setting between 4000 K and 6500 K.
3. Close the cover again. Press firmly.

Connection

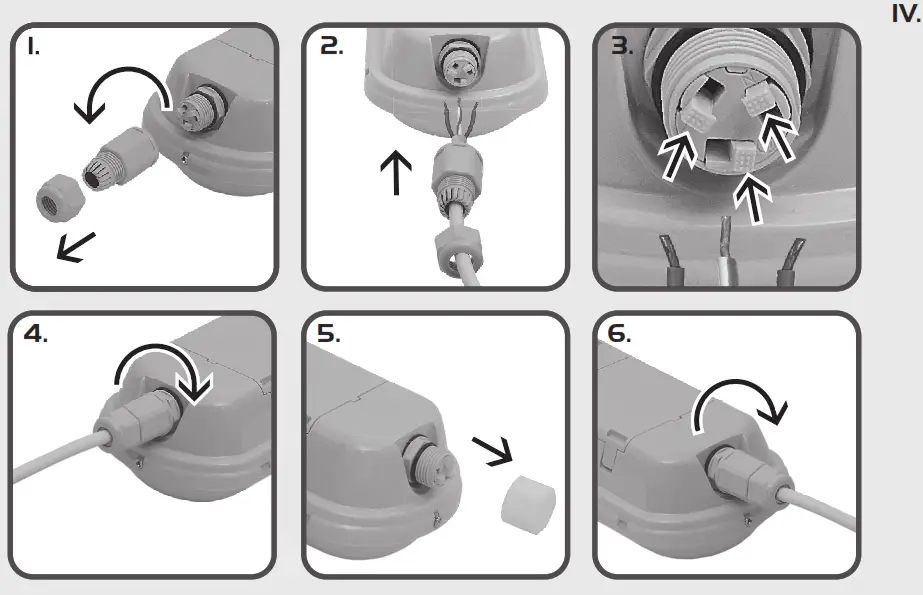

1. Loosen the cable fixing screw.
2. Insert the power cord through the cable inlet.
3. Connect the luminaire to the power supply (see figure). Make sure that the connections are tight. The product needs to be earthed.
   L: Brown
   : Yellow/Green
   N: Blue
4. Tighten the cable fixing screw.
5. +6. Repeat on the other side when connecting in series.
   Connect the power supply.

Maintenance and care

1. Cleaning
   Wipe the luminaire with a soft, dry cloth only. Never use scouring powders or chemical cleaning agents.

Please read these instructions carefully and keep them safe for later use!

Safety information

• Electrical work and repairs must be performed by a qualified electrician.
• The luminaire must not be modified in any way. Risk of electric shock and accident.
• During installation, always observe the national installation regulations.
• The light source and the control gear of this luminaire are only replaceable by a qualified electrician.

Technical data

Nominal voltage: 220-240 V~ 50 Hz

Rated power:

Luminous flux:

Max. linkable quantity:

Dimensions (L x W x H):

Weight:

Used symbols
Caution: Risk to health and the product.
Protection class I
Caution: Risk of electric shock!
Light source replaceable by a qualified electrician.
Control gear is replaceable by a qualified electrician.
D This product contains a light source of energy efficiency class D.

Waste disposal

The pictogram with the crossed-out dustbin points to the requirement for separate disposal of electrical and electronic appliances (WEEE). Electrical and electronic appliances can contain hazardous and environmentally hazardous materials. Do not dispose of this appliance as domestic waste. Hand it in at a collection point for electrical and electronic waste. By doing so, you will help to conserve resources and protect the environment. For further details, please consult your local authorities. Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

www.hornbach.com/productcompliance

Manufactured for
HORNBACH Baumarkt AG
Hornbachstraße 11
76879 Bornheim / Germany
www.hornbach.com

10471863/ 10471864/ 10471865_V1.2_2021/10
