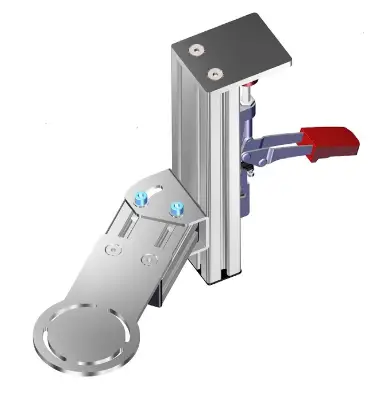

MONSTER Angle Mounting Bracket 0-45° Instruction
GENERAL ASSEMBLY INFO AND HOW TO

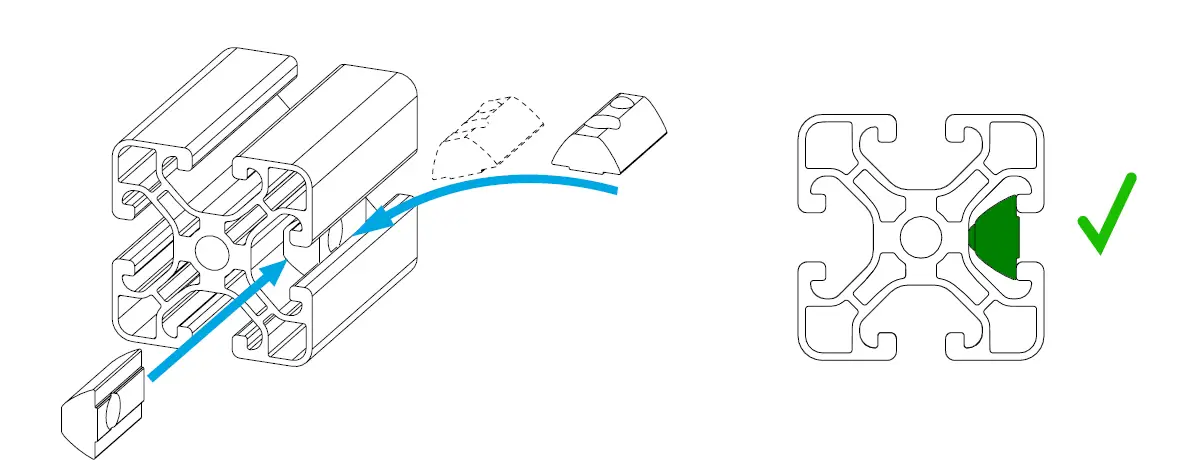

PROFILE NUT

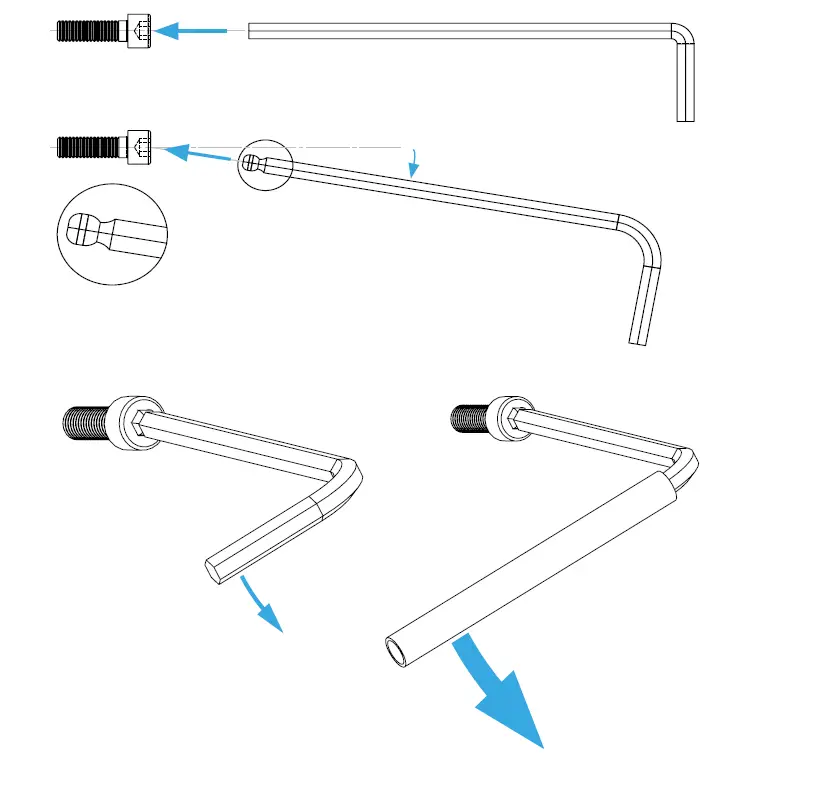

HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED

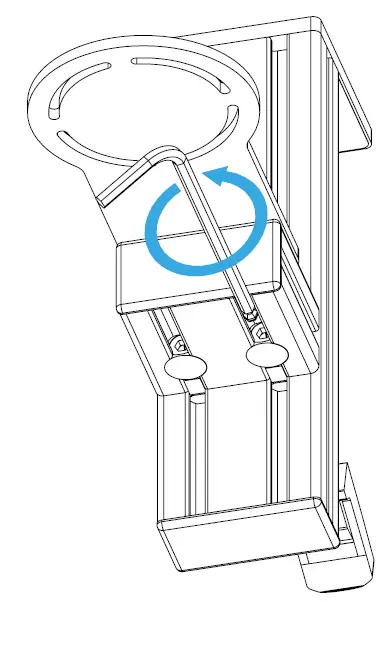

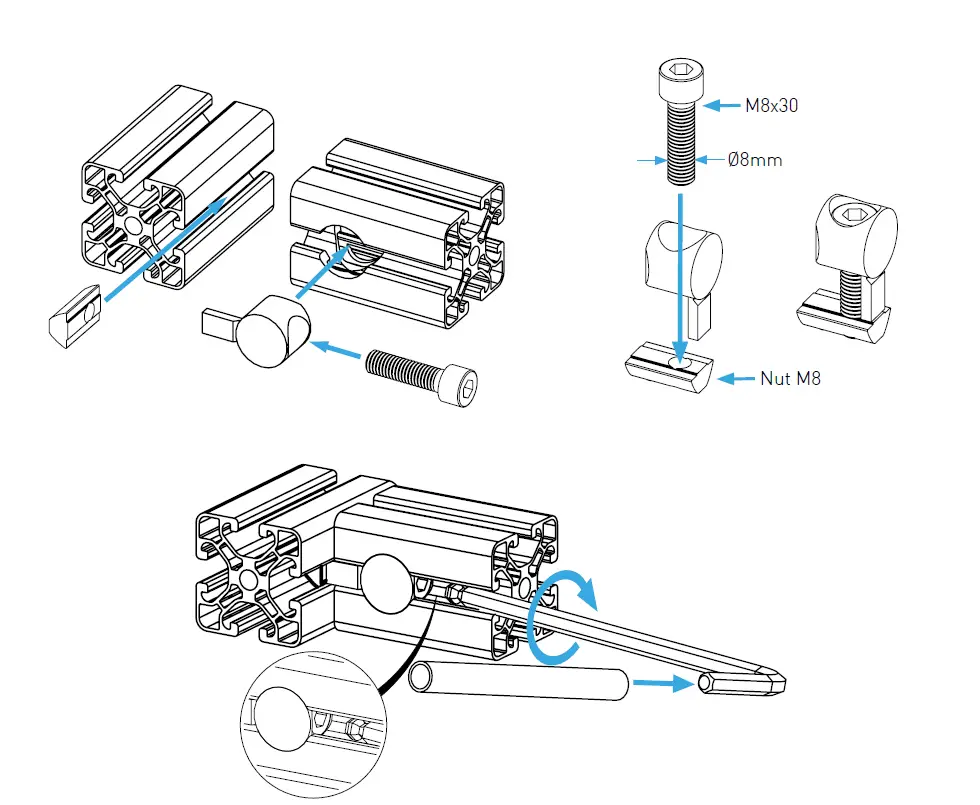

UNIVERSAL CONNECTOR

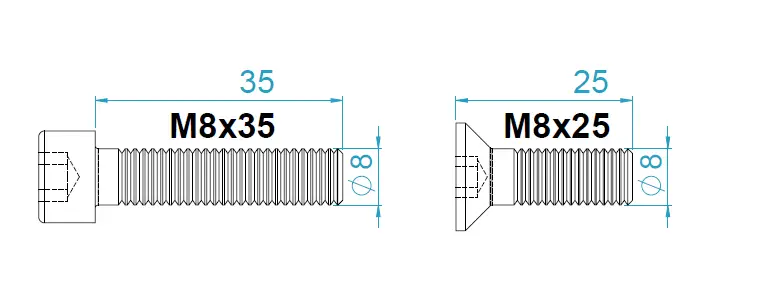

BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm]

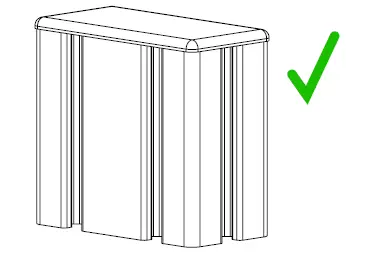

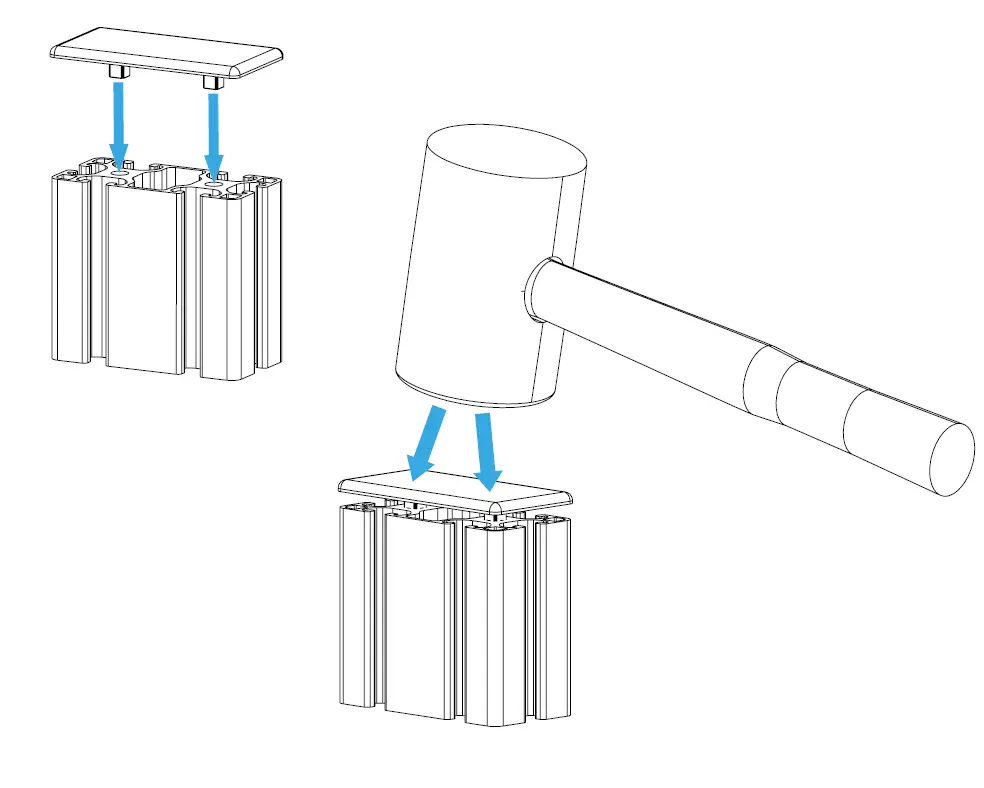

PROFILE CAP ASSEMBLY

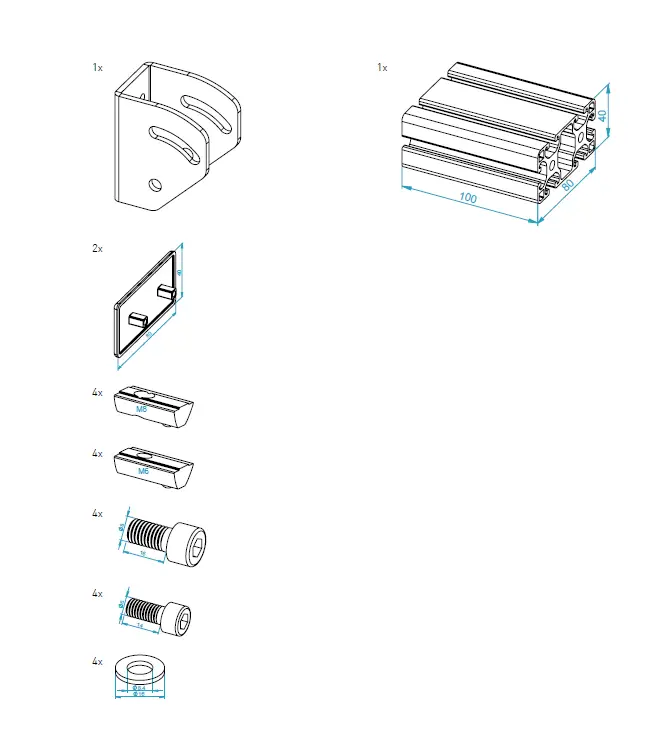

PARTS

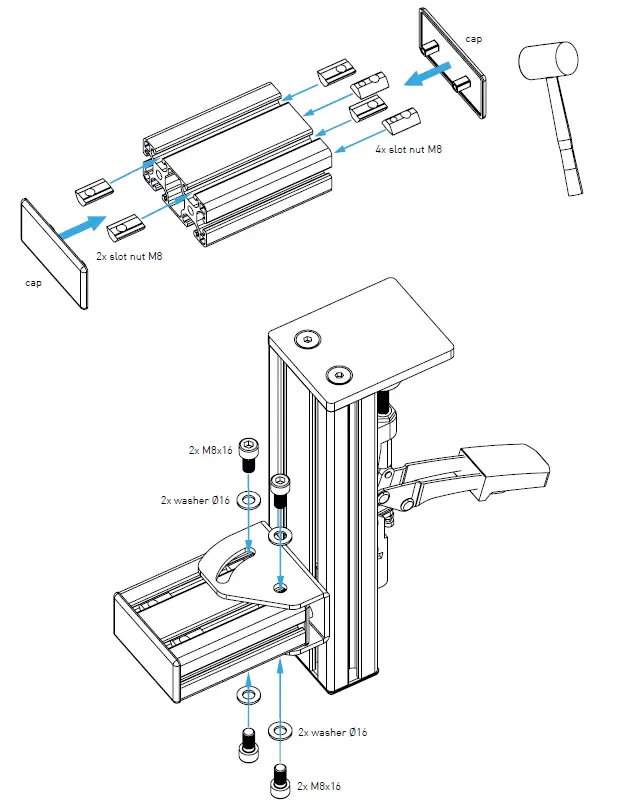

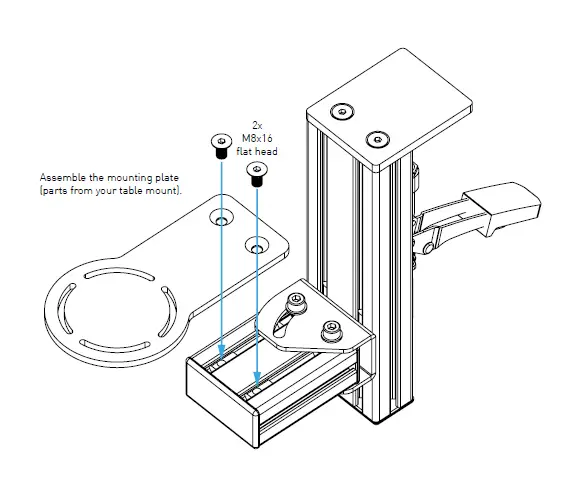

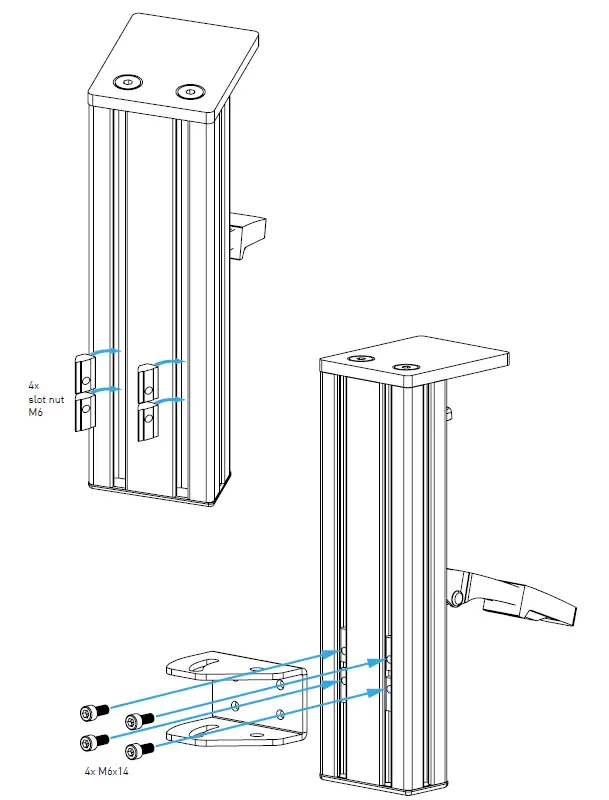

ASSEMBLY

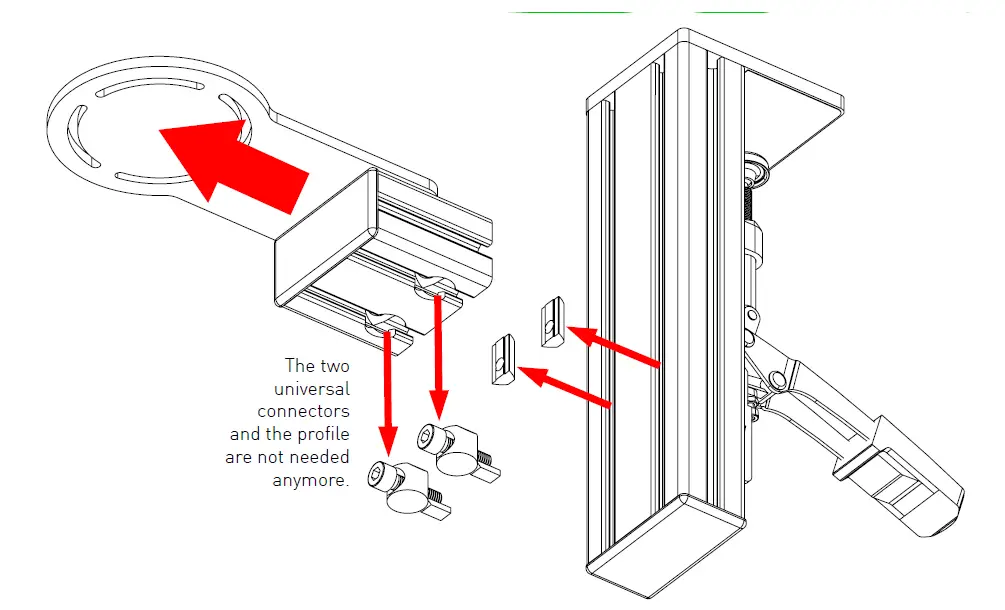

If you have a table mount already and want to mount the optional angle bracket then you have to unscrew the two universal connectors and remove the profile with the mounting plate.

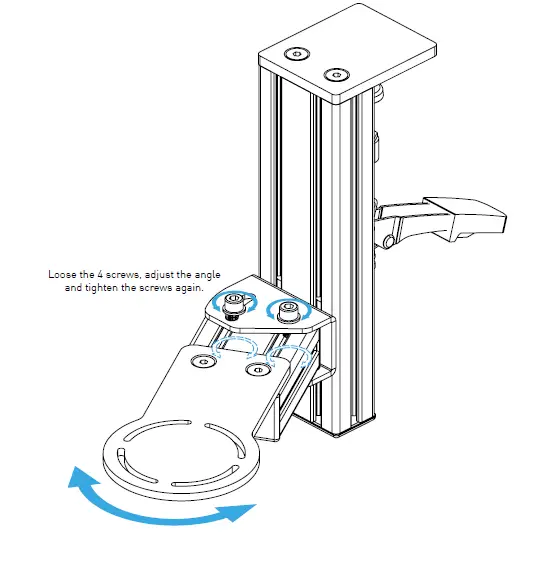

OPERATION
WARNING NOTICES
- CAUTION! Do not clamp your fingers while attaching the table mount.
- CAUTION! Check before usage if all screws are tightened.
- CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments.
- DANGER: Contains small parts not suitable for children under 3 years.
Only suitable for children over 12 years and adults.
All MTSIM products are hand assembled and quality checked.
The mount is designed for usage only with a computer controller (e.g. joystick or throttle).
We exclude liability if the product is used for purposes other than intended.
MTSIM shall be liable for damage arising from causes other than the detriment to life, body and health only to the extent that such damage arises from wilful misconduct, gross negligence or the culpable violation of a fundamental contractual obligation on the part of MTSIM or a vicarious agent (e.g. the delivery service) of MTSIM. Any further liability for damages shall be excluded.
If you have safety concerns or questions regarding assembly, contact us under [email protected] or visit www.mtsim.com/en/
