Praxis M24 Bb86 Bottom Bracket Instruction Manual

M24 BB86 ROAD BB90 MTN PRESS-FIT BB92 MTN
For Praxis M24 Road or MTN
Cranks and SRAM GXPTM Cranks

SAFETY INFORMATION – READ BEFORE RIDE

Since specific tools and experience are necessary for proper installation, it is recommended that the product be installed by a qualified bicycle technician.
Read the service instructions of your crank carefully prior to installing the parts. Loose, worn or damaged parts may cause riding problems and serious injury may occur as a result. If installation and adjustments are not carried out correctly, the chain may come off and this may cause you to fall off the bicycle which could result in serious injury. Read these instructions carefully, and keep them for later use.

• Ensure that your PF frame shell is clean and free of debris.
• Before riding the bicycle, check that there is no play or looseness in the bottom bracket connection. Also, be sure to retighten the crankarms and pedals at periodic intervals.
• If you feel any looseness or `play’ in the bearings, the bottom bracket should be inspected/replaced.
• Be sure to read the instructions for your front chainrings/crank in conjunction with these service instructions.
• Do not wash the bottom bracket with high-pressure jets of water.
• For maximum performance it is required to remove and periodically inspect/clean your Praxis Works bottom bracket.
• Parts are not guaranteed against natural wear or deterioration resulting from normal use.
• For any questions regarding methods of installation, adjustment, maintenance or operation, please contact a professional bicycle dealer or call Praxis Works.
• Praxis Works assumes no responsibility for damages or injury related to improperly installed components.
  READ THE STEP BY STEP INSTRUCTIONS PROVIDED ON THE OTHER SIDE.

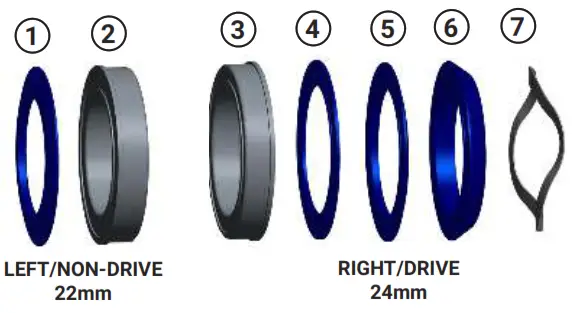

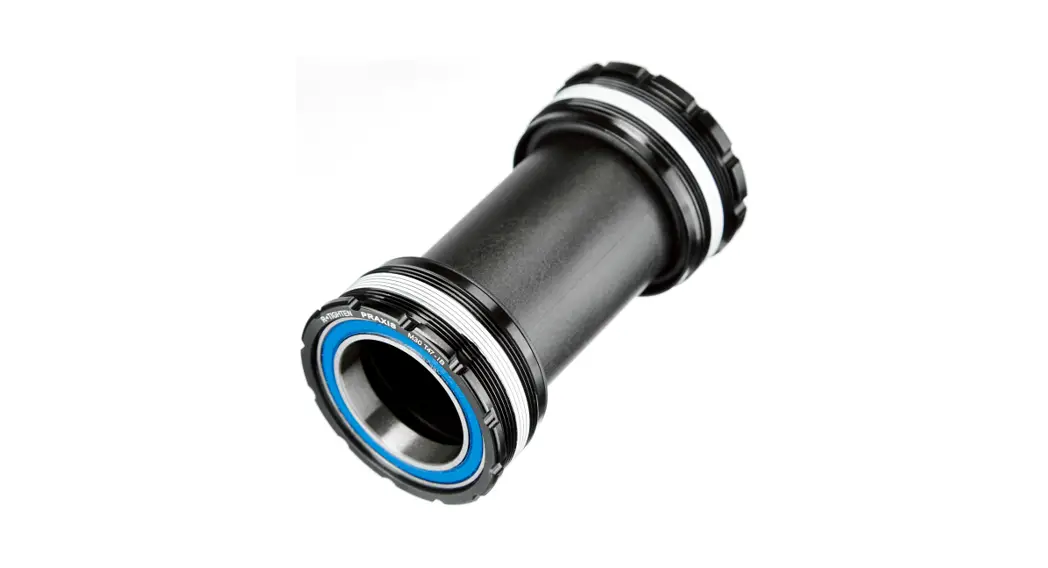

M24 BB86 Bottom Bracket

WARRANTY

• Praxis Works Bottom Bracket products are warrantied to be free from defects in materials or workmanship for two years after original purchase. The warranty is non-transferable and valid to the original purchaser of the product only.
• Any attempt to modify the product in any way such as drilling, grinding or painting will void the warranty.
• This warranty is not valid for “abused” or neglected products, or products that are damaged by improper installation.
• If a defect is found, our entire liability and your sole remedy shall be, at our option, free repair or replacement of the Praxis product.
• Except as expressly required by law, Praxis Works shall not be held liable for any indirect, special, or consequential damages.

THIS WRITTEN EXPRESS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, IMPLIED OR EXPRESSED. This warranty gives you specific legal rights, and you may also have other rights which vary state to state. For more information on warranty policy and instructions for completing a warranty claim, check out the Full Warranty Policy found at our website. www.praxis-works.com

Note: specifications are subject to change without notice. © AUG 2022 by Praxis Works, LLC Rev F

REQUIRED TOOLS

• Bearing Press Tool
• Loctite 609 (Metal BB shell)
• Hammer
• Loctite Superflex Clear RTV (Carbon BB Shell)

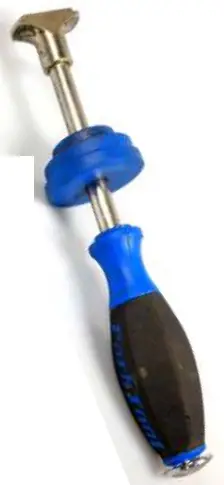

• Park Tool BBT-30.4 Bearing Remover

Praxis Works, LLC 207 MCPHERSON ST. SUITE E. SANTA CRUZ, CA 95060 www.praxis-works.com

FRAME & BEARING PREPARATION

METAL BB SHELL

1. Clean the metal BB shell with solvent to remove any grease
2. Use Loctite 609, 603, or 638 retaining compound

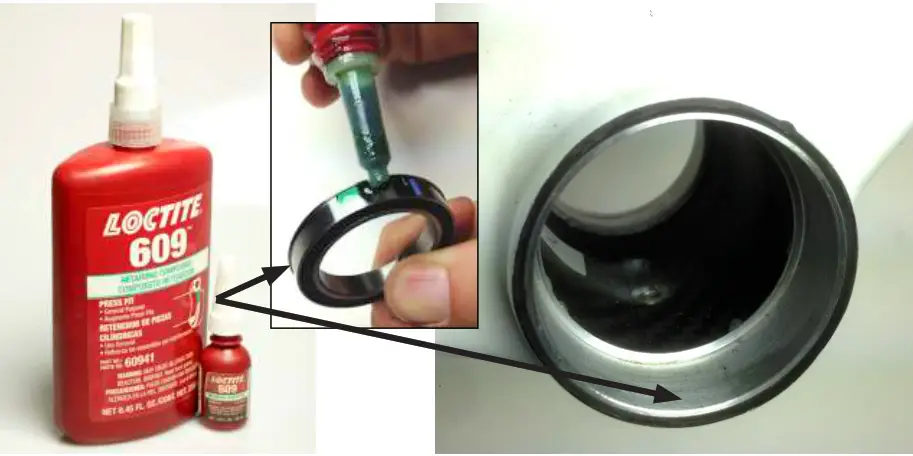

3. Spread a thin coat of retaining compound around the metal BB shell and on the outer bearing race

CARBON BB SHELL BB

1. Clean the carbon BB shell with solvent to remove any grease
2. Use Loctite Superflex RTV Silicone Adhesive (Room Temp Vulcanizing)
3. Spread a thin coat of the RTV Silicone around the carbon BB shell and on the outer bearing race
4. Once pressed, it must cure for 24hrs before riding

Next page INSTALLATION…..

BOTTOM BRACKET INSTALLATION

1. Press the 22mm ID bearing into the Left/Non-Drive side of the frame
2. Then press the 24mm ID bearing into the Right/Drive side of the frame
3. Wait 24hrs for silicone to cure if pressed into carbon BB shell

BB REMOVAL
Use Park BBT-30.4 Removal Tool or similar

1. Using bearing removal tool, hammer out the Non-Drive Side Bearing from the inside out
2. Using bearing removal tool, hammer out the Drive-Side Bearing from the inside out

Installation Notes

• Press all bearings using a professional press tool
• Press all bearings flush against the bottom bracket shell
• Press one Bearing/Side at a time!

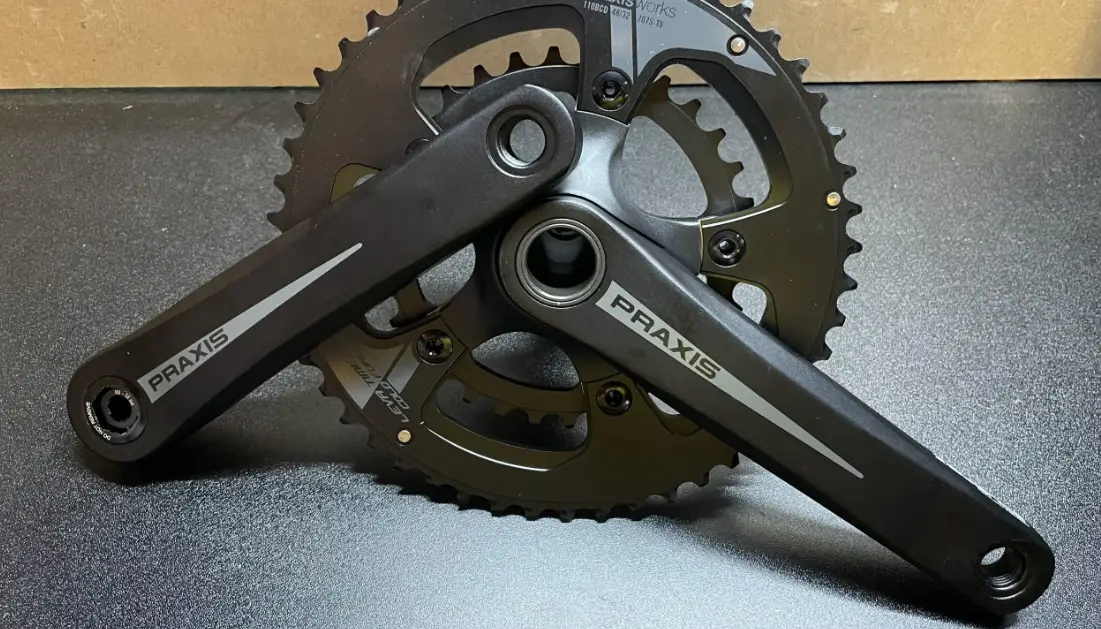

* CRANK INSTALLATION *
Please see CRANK instructions at www.praxiscycles.com/manuals

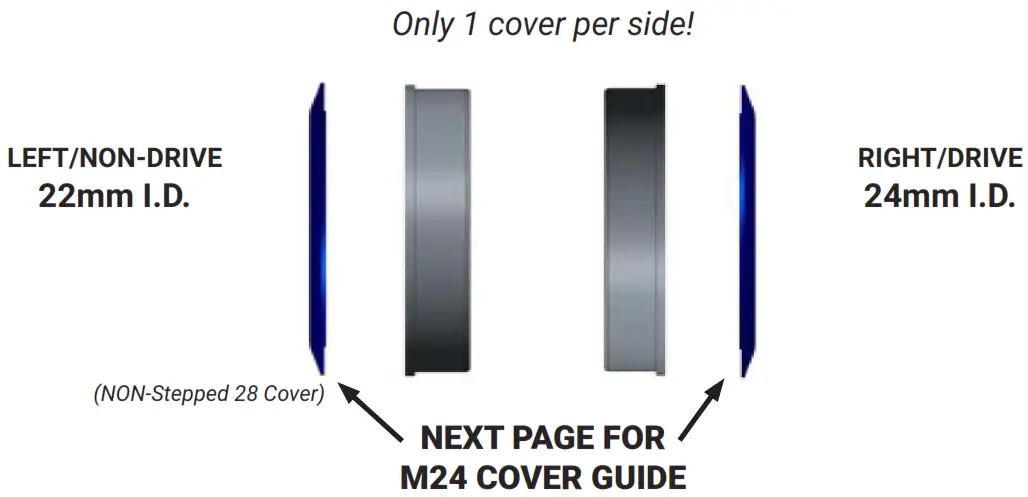

BB DUST COVER SETUP

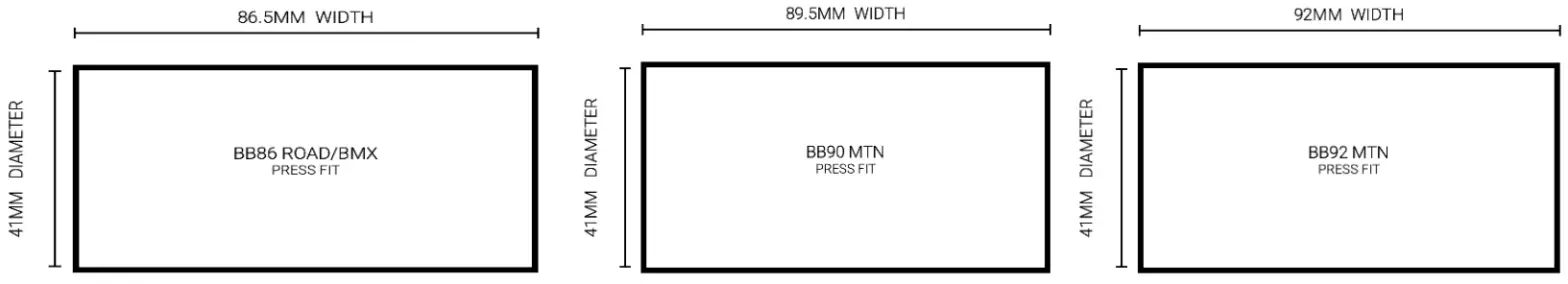

REFERENCE – FRAME BB SPECS

BB DUST COVER GUIDE

“DM” = DIRECT MOUNT SPIDER (Removable Spider)
“NON-DM = NOT DIRECT MOUNT SPIDER (Pressed-On Spider)

WWW.PRAXISCYCLES.COM/MANUALS
