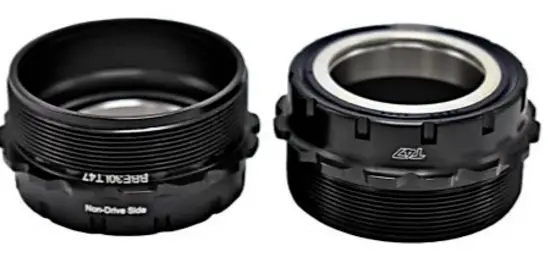

INGRID BSA Bottom Bracket
IMPORTANT NOTICE
This manual is intended primarily for use by professional bicycle mechanics. Users who are not professionally trained for bicycle assembly should not attempt to install the components
If any part of the information on the manual is unclear to you, do not proceed with the installation. Instead, contact your dealer or a local bicycle shop for their assistance.
Make sure to read all instruction manuals included with the product.
You can find al the manuals and specs on our website http://ingrid.bike.
MAINTENANCE
This product is not guaranteed against natural wear and deterioration from normal use and aging.
PERIODICALLY CHECK THE TIGHTENING. INCORRECT TIGHTENING CAN CAUSE MALFUNCTIONS OR BREAKAGE
BOTTOM BRACKET WIDTH
INGRID BSA and T47 BB cups comply with the required asymmetry of +2.5mm on the DRIVE SIDE and the required dimensions for INGRID spindles and cranksets. For more information see the spindles and cranksets manuals.

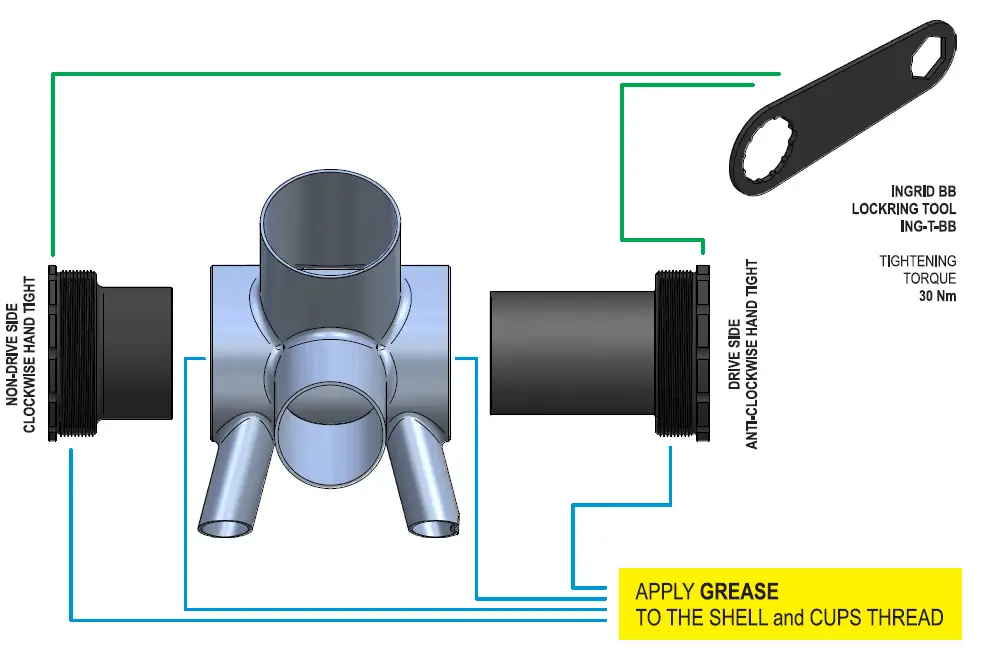

INSTALLATION

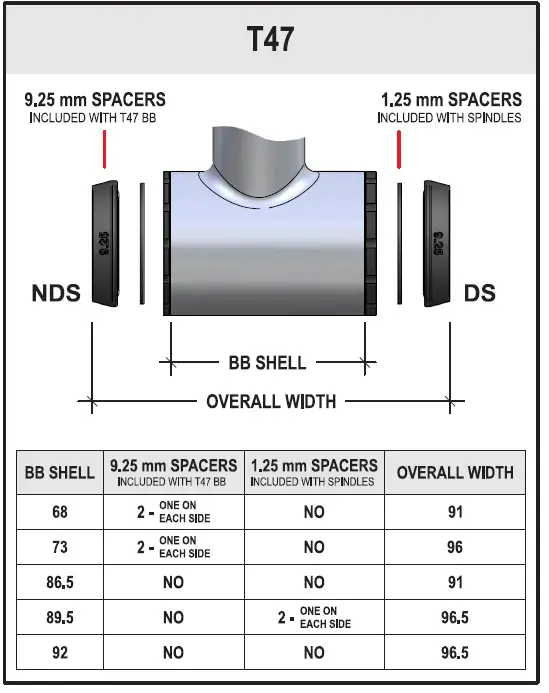

68/ 73 / 86.5/89.5/92 mm T47 Bottom Bracket

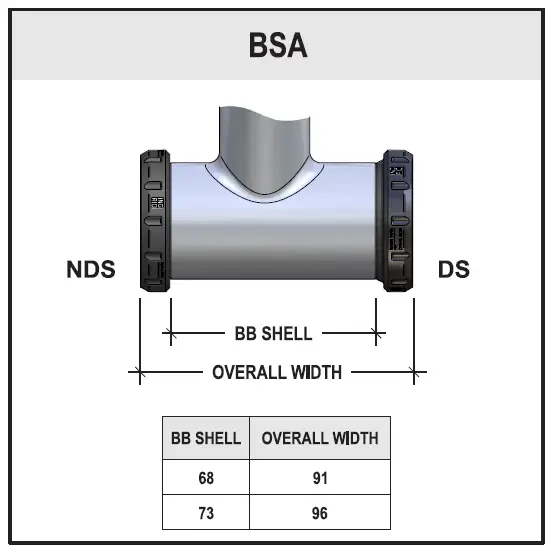

68/ 73 mm English Threaded Bottom Bracket (BSA)
