Quick release bracket configuration | ||
Model | 59906 | 59927 |
| Suitable for motor | 50700/50736 | 50718D/50737/50738 |
Yatai Electric Appliances Co., Ltd.
Add:No.4 Xinlong st. Nanlong, Sanxiang,
zhongshan, guangdong Provlnce, China.
Postcode: 528463
Tel: +86 760 86692666
Fax: +86 760 86692996
WWW.HASWING.COM
Version: V02
Printed in China
INSTRUCTION MANUAL
To The Owner
Thank you for selecting a Haswing electric outboard motor. lt’s designed for the purpose of superior performance, portability and environmental contribution. Enjoy using the Haswing Cayman B/with GPS!
This Owner’s Manual contains important information pertaining to installation,correct operation and maintenance. Please read the manual before using this motor. lf you have any questions contact your local Haswing distributor in the country of porchase.
We welcome comments regarding product improvement.
To avoid hazards and to obtain maximum performance and usage,special symbols are noted in this manual.
Failure to follow the instructions could cause severe injury.
Special precautions must be taken to avoid damage to the motor.
Information that makes the procedures easier and faster.
Before operating the motor

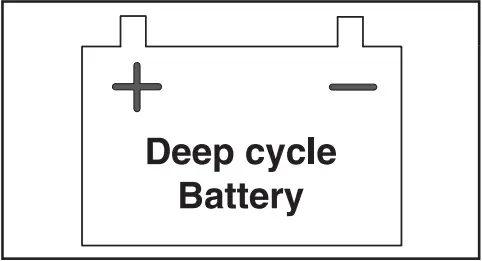

Only use deep cycle battery or batteries to power the motor. Incorrect or improper use, or connection of the battery could cause damage to the motor. Disconnect the battery when stowing the boat or not using for an extended period.

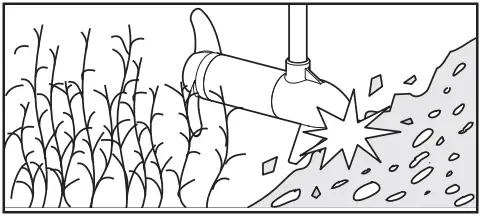

Be aware of underwater obstacles
When motoring with the electric trolling motor in shallow water or around obstacles, reduce speed. Raise or retract the motor when in shallow water. Be aware of swimmers in close proximity to your vessel.
IP68 waterproof level for the motor
IP63 waterproof level for all but the motor
Be mindful of weather conditions
Always wear an approved life vest or PFD (personal flotation device) and comply with local boating regulations.

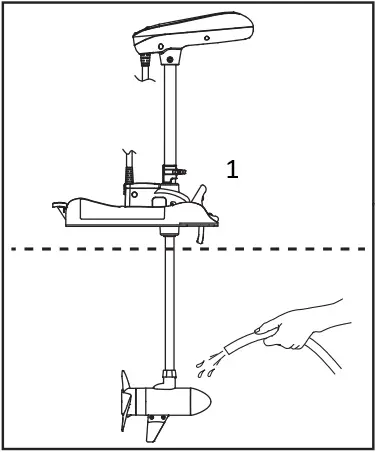

Wash motor after use
- Wash down motor with fresh water after using in saltwater
Remove any debris from around the propeller or propeller drive shaft. Wash with freshwater after using in saltwater.
1 Propeller installation

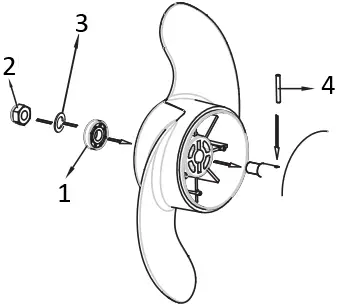

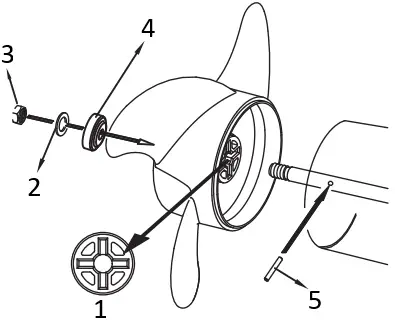

1.Install the drive pin (drive pin and cross-shaped slot in the propeller must align in order to correctly fit the propeller to the motor), anode, washer and self-locking nut onto the drive shaft. (Fig. 1)
The cross-shaped slot (2 slots) allow the user to re-assemble the propeller if one slot is worn.
55lbs thrust motor (50736)
- Cross-shaped slot
- Stainless steel washer
- Self-locking nut
- Sacrificial anode
- Drive pin
80-101lbs thrust motors (50737,50738)
- Sacrificial anode
- Self-locking nut
- Stainless steel washer
- Drive pin
Fig.1
Cayman B / with GPS
