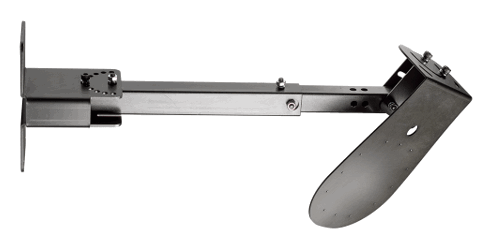

IS40 Universal Mounting Bracket
Instruction Manual
IS40 Universal Mounting Bracket
Compatible with: LZR-WIDESCAN FALCON IS40 / IS40P
Visit the website for available languages of this document.

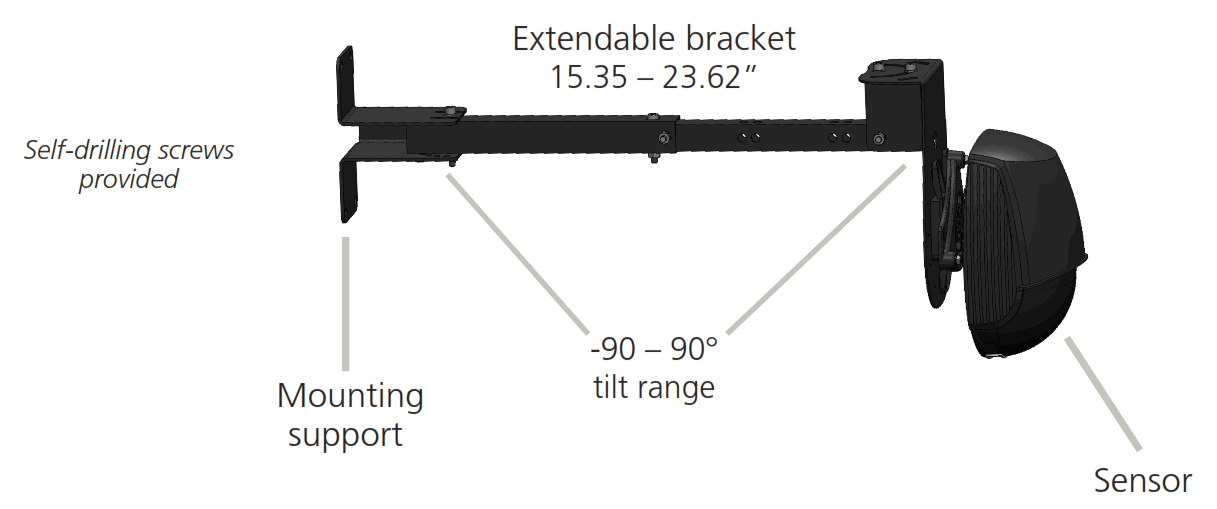

DESCRIPTION
SCENARIO 1: OBSTRUCTION
©BEA, Original Instructions
75.0044.01 UNIVERSAL MOUNTING BRACKET 20210113
SCENARIO 2: CEILING-MOUNTED

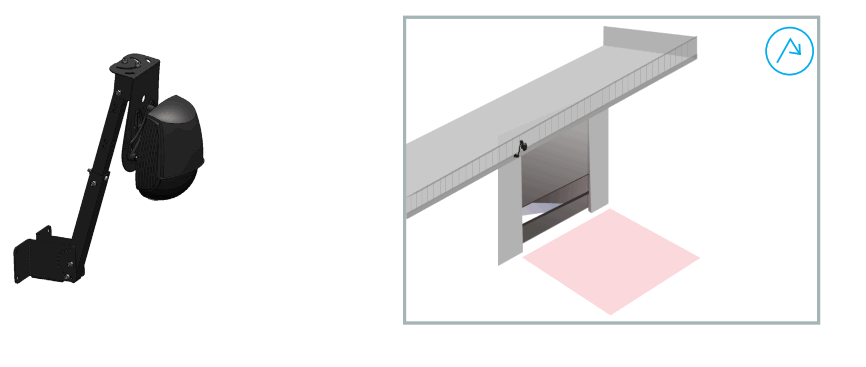

SCENARIO 3: DOORS UNDER THE BALCONY
BEA, INC. INSTALLATION/SERVICE COMPLIANCE EXPECTATIONS
BEA, Inc., the sensor manufacturer, cannot be held responsible for incorrect installations or incorrect adjustments of the sensor/device; therefore, BEA,Inc. does not guarantee any use of the sensor/device outside of its intended purpose.
BEA, Inc. strongly recommends that installation and service technicians be AAADM-certifi ed for pedestrian doors, IDA-certifi ed for doors/gates, and factory-trained for the type of door/gate system.
Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring that the sensor/device system installation is compliant with local, national, and international regulations, codes, and standards.
Once installation or service work is complete, a safety inspection of the door/gate shall be performed per the door/gate manufacturer’s recommendations and/or per AADM/ANSI/DASMA guidelines (where applicable) for best industry practices. Safety inspections must be performed during each service call – examples of these safety inspections can be found on an AAADM safety information label (e.g. ANSI/DASMA 102, ANSI/DASMA 107). Verify that all appropriate industry signage and warning labels are in place.
Tech Support & Customer Service: 1-800-523-2462
General Tech
Questions: [email protected]
Tech Docs: www.BEAsensors.com
