HV3634T-BLK Platz Black Up & Down Tri Colour LED Wall Light
Instruction Manual
Product Specifications
| Model No. | HV3634T-BLK | HV3634T-WHT | HV3635T-BLK | HV3635T-WHT |
| Name | Platz | Savannah | ||
| Material | Aluminum | Aluminum | ||
| Colour | Black | White | Black | White |
| IP Rating | IP54 | IP54 | ||
| Protection Class | 1 (240v Requires Earth)  | 1 (240v Requires Earth) | ||
| Input Voltage | 240v AC | 240v AC | ||
| Lamp Base | Built-in LED | Built-in LED | ||
| Lamp Wattage | 2x 3w | 2x 4.5w | ||
| Colour Temp | TRI Colour – 3000k, 4000k, 5500k | TRI Colour – 3000k, 4000k, 5500k | ||
| Lumens | 2x 220lm, 2x 230lm, 2x 240lm | 2x 225lm, 2x 230lm, 2x 235lm | ||
| CRI | > 80 | > 80 | ||
| Wiring | Parallel | Parallel | ||
| Dimmable | No | No | ||
| Warranty | 3 Years Replacement* | 3 Years Replacement* | ||
 |  |
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS
- Ensure all electrical mains are disconnected before any
- Modification of this product will void any
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the
- Aluminum and 304SS fittings must not be installed within 5km of any saltwater
- All o-rings and seals must be in place correctly to maintain a warranty
- This form may be updated at any time due to product improvements, please check the online installation form for the most current version.
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Loosen Allen screws on side of the fitting
- Remove base plate from

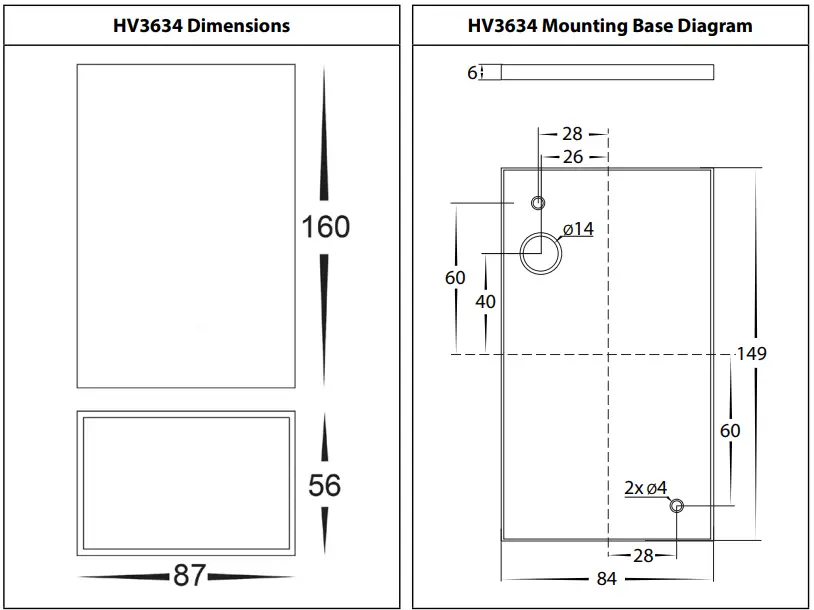

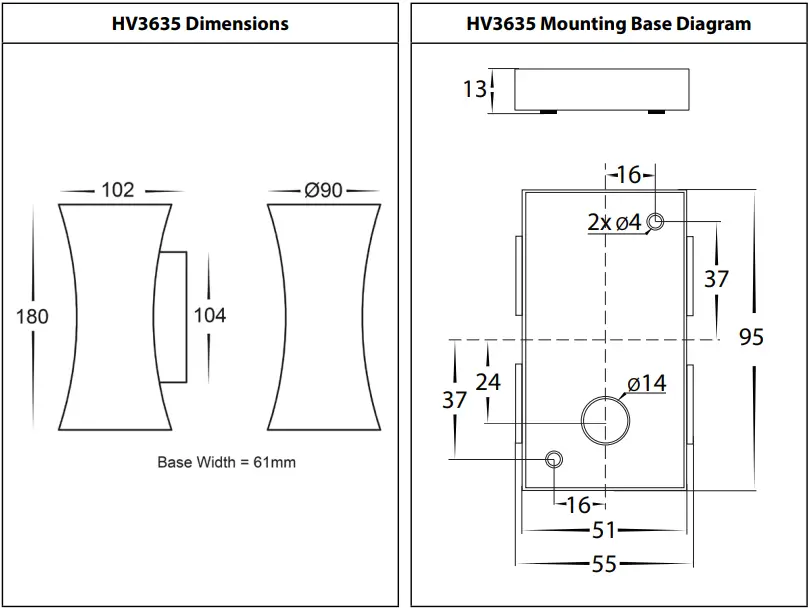

- Install the base plate to the wall in the desired location using appropriate screws for
- Seal all holes including cable entry and around screws
- Connect the cable – use wire with earth; connect the earth first, then live and neutral
- Fitting is preset to 3000k, to change the slide switch located inside the base of fitting to the desired color
- Reattach fitting to base plate making sure screws are tight to avoid any water
- Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
