HAVIT Lighting HV3633 Veldi Wall Light Instruction Manual
Important Safety Issues
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- All 316 & 304 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on fitting. (Warranty does not cover Tea Staining)
- All o-rings and seals must be in place correctly to maintain warranty
- This form may be updated at any time due to product improvements, please check online installation form for most current version.
Product Specifications
ccc | HV3633T-BLK | HV3633T-WHT | HV3633T-SS316 |
Name | Veldi | ||
| Material | 316 Stainless Steel | ||
Colour | Black | White | Stainless Steel |
| IP Rating | IP54 | ||
Protection Class | 1 (240v Requires Earth)  | ||
| Input Voltage | 240v AC | ||
Lamp Base | GU10 | ||
| Lamp Wattage | 2x 5w | ||
Colour Temp | TRI Colour – 3000k, 4000k, 5500k | ||
| Lumens | 2x 250lm, 2x 275lm, 2x 300lm | ||
CRI | > 80 | ||
| Wiring | Parallel | ||
Dimmable | No | ||
| Warranty | 3 Years Replacement* | ||

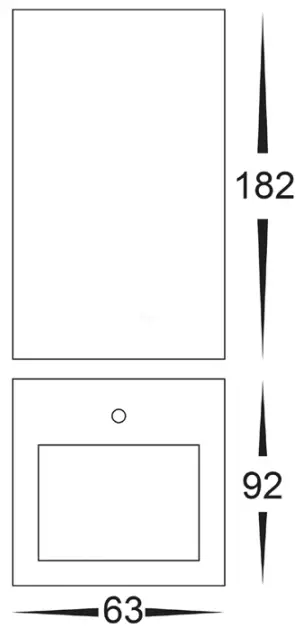

Dimensions

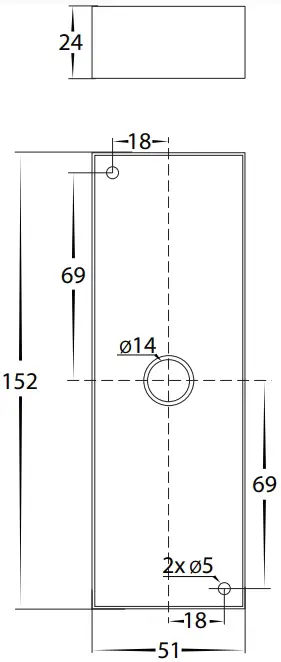

Mounting Base Diagram
Steps for Installation
- Make sure that the electrical circuit is free of voltage (master switch off )
- Remove screws from top and bottom of fitting and set aside.
- Remove base plate from fitting.
- Install base plate to wall in desired location using appropriate screws for application.
- Seal all holes including cable entry and around screws
- Connect the cable – use wire with earth; connect the earth first, then live and neutral wire.
- Fitting is preset to 3000k, to change remove globes and slide switched on side to desired colour temperature
- Reattach fitting to baseplate making sure screws are tight to avoid water penetration.
- Apply silicon around edge of fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Steps for Changing Globe
- Remove cover from fitting by removing screws from top and bottom of fitting.
- Remove globe by twisting anti clockwise
- Insert new globe by twisting clock wise making sure to check correct globe is used – Refer product label for correct wattage
- Reattach fitting to base plate making sure screws are tight to avoid water penetration.
Must be installed by a licensed electrician
