Instruction Manual
Barline Wall Light Installation Instruction
Product Specifications
| Model No. | HV3581T-BLK | FiV3581T-WHT | HV3582T-BLK | HV3582T-WHT | HV3584T-BLK | HV3584T-WHT | HV3586T-BLK | FiV3586T- VHT |
| Name | Barline | |||||||
| Material | Aluminum + Perspex | |||||||
| Colour | Black | White | Black | White | Black | White | Black | White |
| IP Rating | IP65 | |||||||
| Protection Class | 1 (240v Requires Earth)  | |||||||
| Input Voltage | 240v AC | |||||||
| Lamp Base | Built-in LED | |||||||
| Lamp Wattage | 4-9w | 9-18w | 15-30w | 22-45w | ||||
| Colour Temp | TRI Colour – 3000k, 4000k, 5500k | |||||||
| Lumens | 2701m, 5401m, 2901m | 5401m, 10801m, 560Im | 9001m,18001m, 9751m | 13801m, 27001m, 14951m | ||||
| CRI | > 80 | |||||||
| Wiring | Parallel | |||||||
| Dimmable | No | |||||||
| Warranty | 3 Years Replacement’ | |||||||

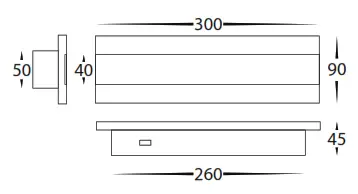

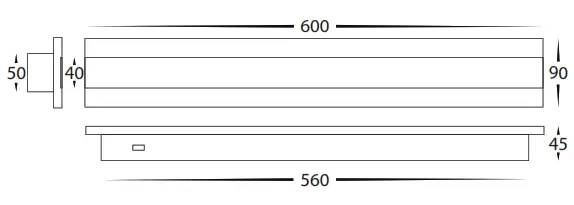

| HV3681 Dimensions | HV3684 Dimensions |
 |  |
| HV3682 Dimensions | HV3686 Dimensions |
 |  |
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- Aluminum and 304SS fittings must not be installed within 5km of any saltwater environments.
- All o-rings and seals must be in place correctly to maintain a warranty
- This form may be updated at any time due to product improvements, please check the online installation form for the most current version.
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Remove screws from the side of the fitting and set them aside.
- Install mounting bracket to wall in the desired location using appropriate screws for application.
- Connect the cable.
- Strip back the cable and connect the earth cables together first then the positive cables together. Then connect neutral cables together.
- Cover connections using an adhesive-lined heat shrink or gel cap to make the connection watertight. Failure to do this will void the warranty.
- Heat the heat shrink or crimp the gel cap making sure all connections are covered.
- Fitting is preset to 3000k, to change the slide switch located on side of the fitting to desired color temperature.
- Reattach fitting to mounting bracket making sure screws are tight to avoid any water penetration.
- Apply silicone around the edge of the fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
