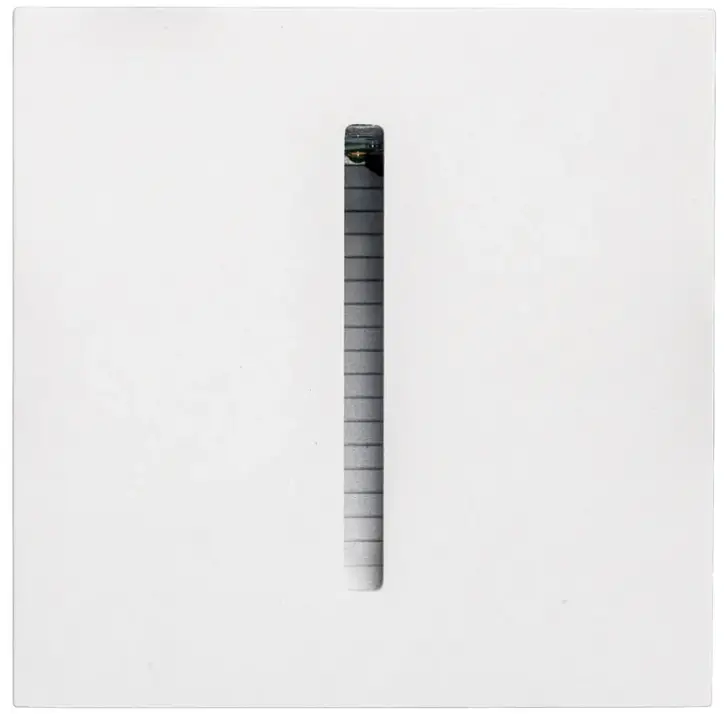

HAVIT HV3102W Slot Recessed Wall Light Instruction Manual
Product Specifications
| Model No. | HV3102W | HV3102C | HV3103W | HV3103C |
| Name | Slot | |||
| Material | Aluminium | |||
| Colour | White | |||
| IP Rating | IP20 | |||
| Input Voltage | 240v AC | |||
| Protection Class |  (Double Insulated) | |||
| Lamp Base | Built in LED | |||
| Lamp Wattage | 1x 2.5w | |||
| Colour Temp | 3000k | 5500k | 3000k | 5500k |
| Lumens | 180lm | 190lm | 180lm | 190lm |
| CRI | > 80 | |||
| Wiring | Parallel | |||
| Dimmable | No | |||
| Warranty | 3 Years Replacement* | |||

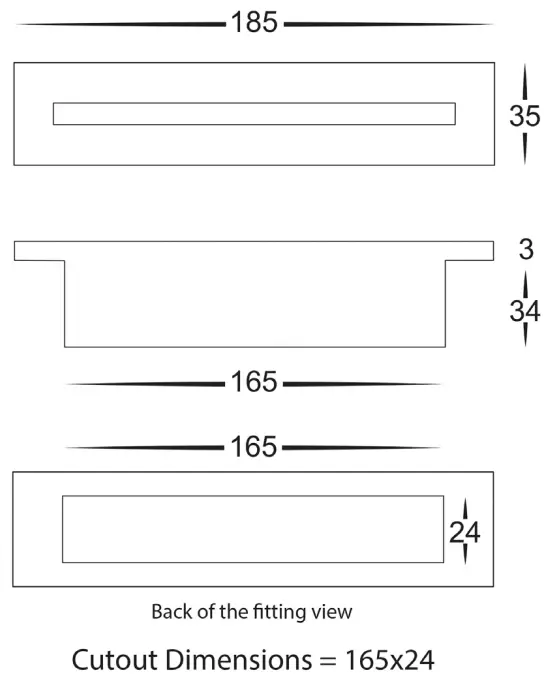

Dimensions
HV3102 Dimensions
HV3103 Dimensions
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- Aluminium and 304SS fittings must not be installed within 5km of any salt water environments.
- All o-rings and seals must be in place correctly to maintain warranty.
- These instructions may be updated at any time due to product improvements, Please visit website for most current installation instructions.
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off )
- Make a hole where fitting is to be placed using dimensions provided on line drawings
- Connect the cable – If more than one fitting installed, wiring must be done in parallel.
- Strip back the cable on both fitting and cable run and twist positive cables together. Then connect neutral cables together.
- Squeeze clips and insert fitting into hole
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
Contact Details:
143 Beauchamp Road
Matraville NSW 2036
Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au
