Lighting HV5530T-SS316 Ora Recessed LED Downlight
Instruction Manual
Product Specification
| Model No. | HV5530T-SS316 |
| Name | Ora |
| Material | 316 Stainless Steel face + Aluminium Body |
| Colour | Stainless Steel |
| Cut Out | 90mm |
| IC Rating | IC-4 |
| IP Rating | IP54 – Front of fitting only |
| Input Voltage | 240v AC |
| Protection Class | 2 (No Earth Required) |
| Lamp Base | Built-in LED |
| Lamp Wattage | lx 12w |
| Colour Temp | TRI Colour – 3000k, 4000k, 5500k |
| Lumens | 9801m, 9901m, 1000Im |
| CRI | > 80 |
| Dimmable | Yes – Triac Dimmable |
| Warranty | 3 Years Replacement* |

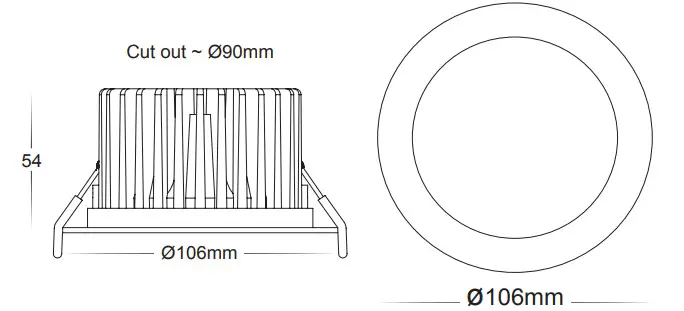

Dimension

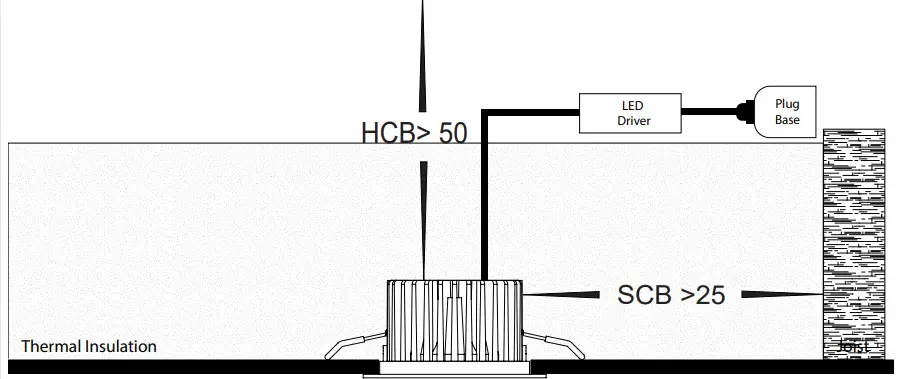

Installation Diagram
Important Safety Issues:
- A qualified electrician must install this product according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- All 316 stainless steel fittings must have regular cleaning maintenance to prevent any tea staining on the fitting. (Warranty does not cover Tea Staining) Only LED
- The fitting can be installed under insulation, LED Driver must not be covered to allow for ventilation.
- This fixture must not be installed with loose fill insulation such as macerated paper and wool. LED driver must be mounted above any insulation covering the fixture.
- These instructions may be updated at any time due to product improvements. Please visit the website for the most current installation instructions.
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off)
- Cut out the hole using the dimensions in table above making sure each hole is not under joists or
- Fitting is provided with flex and plug, Plug cable into plug base installed earlier.
- For TRI Colour Models, Fitting is preset to 3000k, to change the slide switch on the back of fitting to desired color temperature.
- Pull back springs on fitting and insert into
- Once the fitting is in the hole, release clips, These springs will hold the fitting in
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
