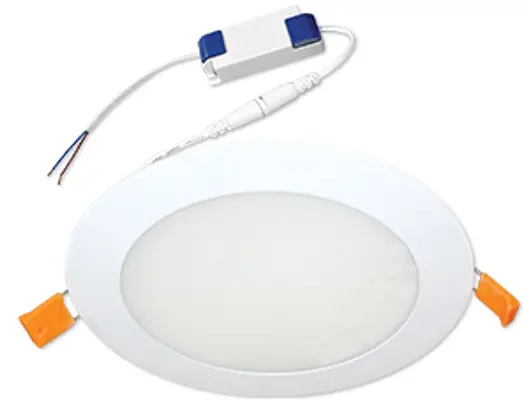

VECORDL6 LED Recessed Downlights
Instruction ManualReplace Light Source
Products
LED Recessed Downlights
VECORDL6 ,VECORDL12
VECORDL18 ,VECORDL24

VECORDL6 LED Recessed Downlights

Light Source Replaceable by Professional

1. Fitting must be removed from mains power

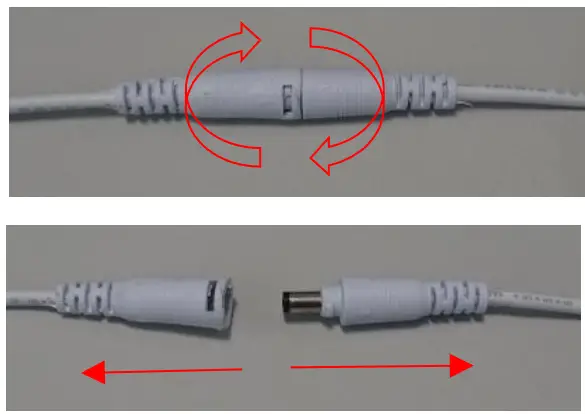

2. Twist plug/socket anticlockwise to release LED Driver

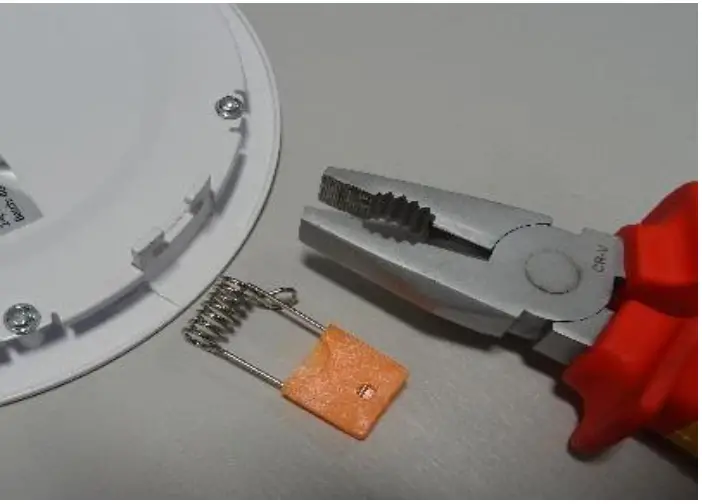

3. Remove Springs x2

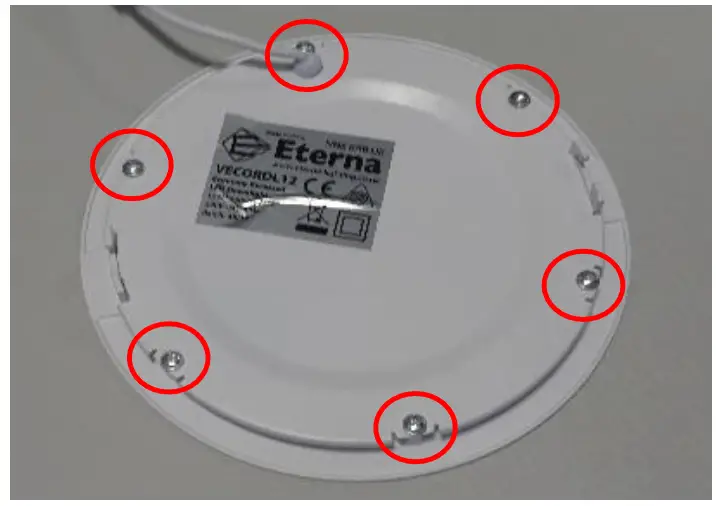

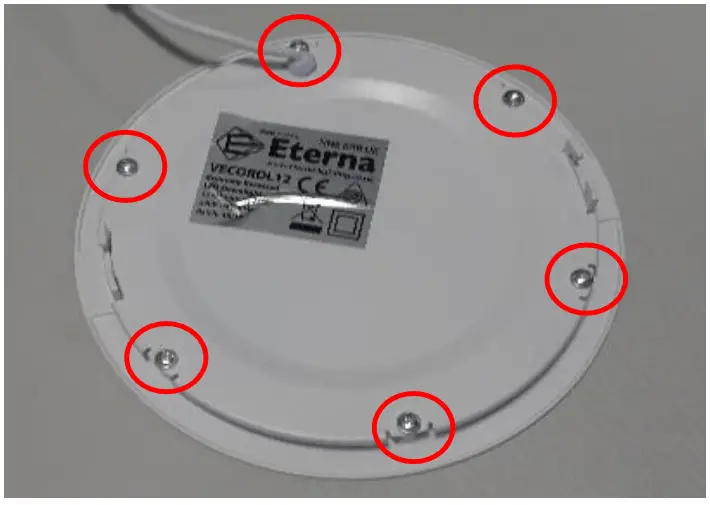

4. Remove fixing screws to take off Rear Cover

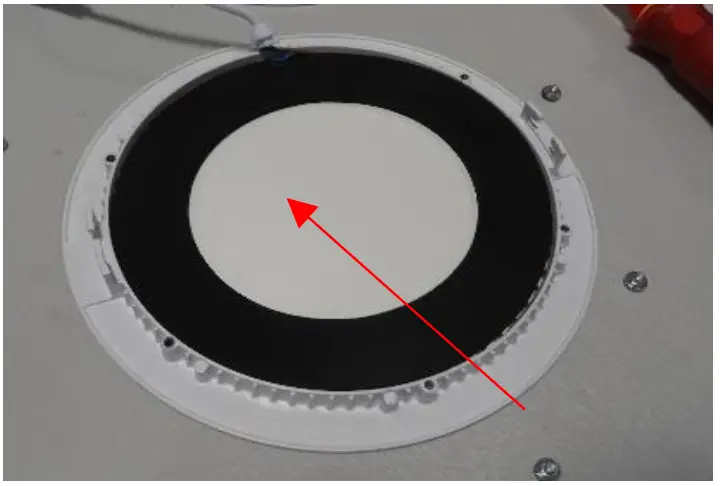

5. Lift out and remove Reflector assembly

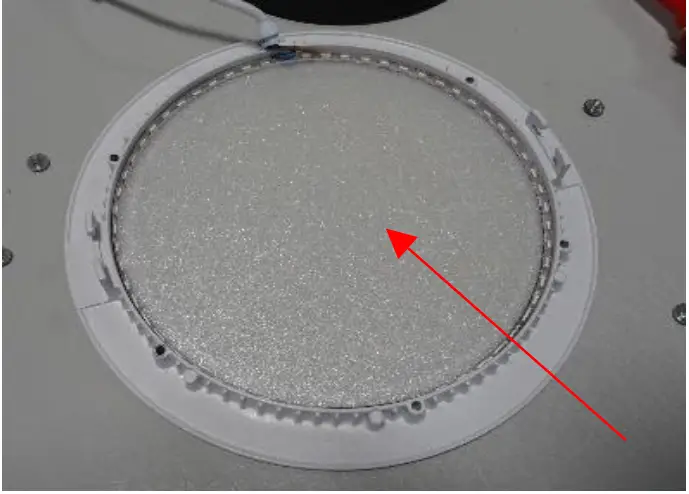

6. Lift out and remove Light Guide Plate and Diffuser

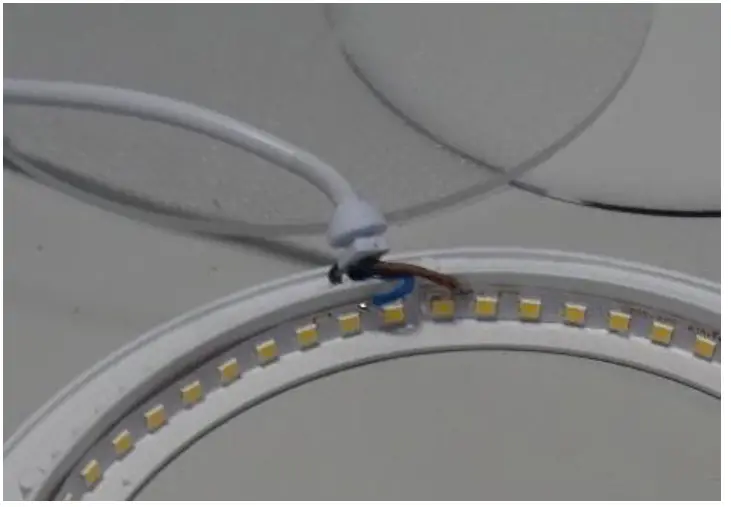

7. Diffuser removed – shows connector leadand LED Tape
8. LED Tape can then be removed from Body Casting
   a Unsolder Connector Lead from LED Tape
   b Resolder Connector Lead onto new LED Tape
9. Lead will need to be unsoldered then resoldered onto new Tape
   See Step 11 for Re-Positioning
10. Remove adhesive from LED Tape and position tape in Body Casting

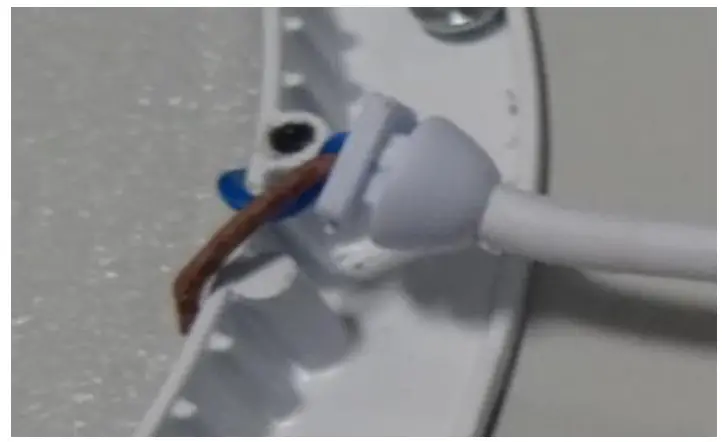

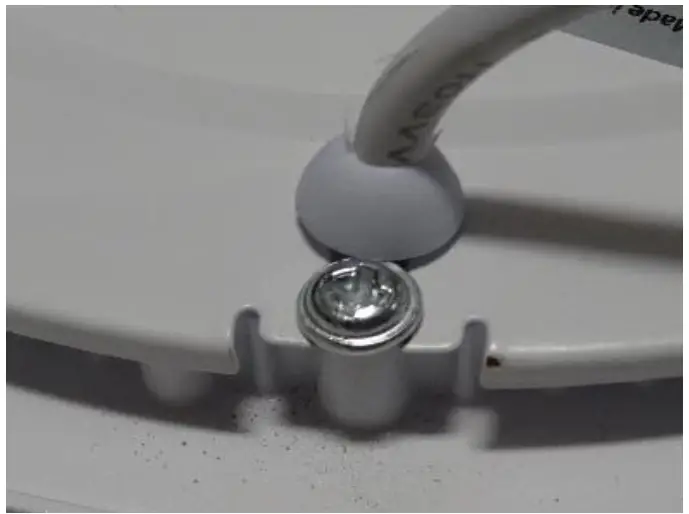

11. Ensure Lead is position to fit into Rear Cover Plate slot
12. Re-attach Rear Cover with fixing screws
13. Refit Springs

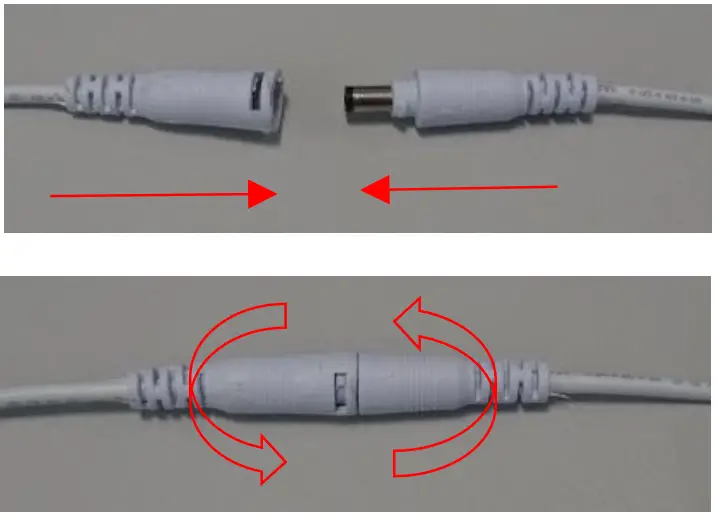

14. Reconnect Driver Lead
15. Reinstall Lumiinaire
