Mask Wall Light Installation Instructions
Product Specifications
| Model No. | HV36042T-BLK | I HV36042T | |
| Name | Mask | ||
| Material | Polycarbonate + 316 Stainless Steel | ||
| Colour | Black | I Stainless Steel | |
| IP Rating | IP54 | ||
| Protection Class | 2 (No Earth Required) | ||
| Input Voltage | 240v AC  | ||
| Lamp Base | Built-in LED | ||
| Lamp Wattage | 1x I Ow | ||
| Colour Temp | TRI Colour – 3000k, 4000k, 5500k | ||
| Lumens | 5201m, SSOlm, 5801m | ||
| CRI | > 80 | ||
| Wiring | Parallel | ||
| Dimmable | Yes | ||
| Warranty | 3 Years Replacement* | ||
Important Safety Issues:
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- All 316 stainless steel fittings must have regular cleaning maintenance to avoid any tea staining from forming on the fitting. (Warranty does not cover Tea Staining)
- All o-rings and seals must be in place correctly to maintain warranty This form may be updated at any time due to product improvements, please check the online installation form for the most current version.

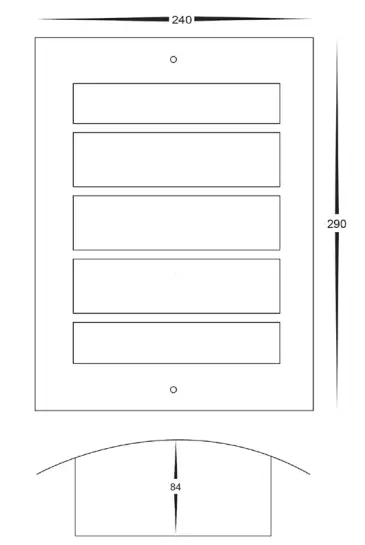

Dimensions

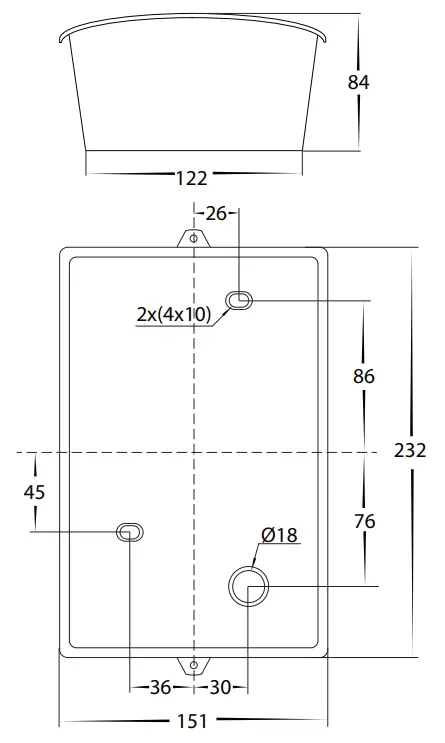

Mounting Base Dimensions
Steps for Installation:
- Make sure that the electrical circuit is free of voltage (master switch off)
- Remove screws from the front of the fitting and remove the covers.
- Connect the cable – Connect live and neutral wire.
- Install the base plate to the wall in the desired location using appropriate screws for application.
- Seal all holes including cable entry and around screws
- Fitting is preset to 3000k, to change the slide switch located in front of the PCB to desired color temperature.
- Reattach covers to the base plate making sure screws are tight to avoid any water penetration.
- Apply silicon around the edge of the fitting to prevent any water from getting inside to electrical connections.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Must be installed by a licensed electrician
Contact Details:
143 Beauchamp Road
Matraville NSW 2036
Australia
Tel: 02 9381 8300
Fax: 02 9666 8881
Email: [email protected]
Web: www.havit.com.au
