RHV3484L 48 Inch
LPG Dual Fuel Range
Owner’s Manual
Series 11 | Professional
Stainless Steel | LPG

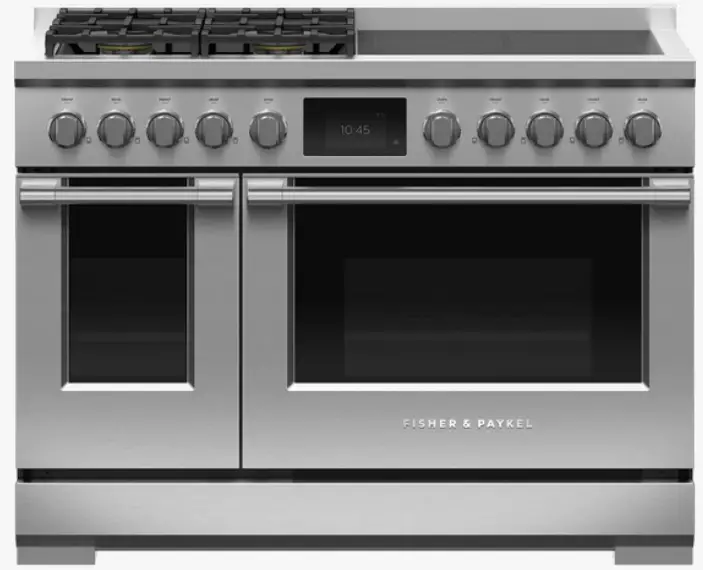

RHV3484L 48 Inch LPG Dual Fuel Range
With both induction and gas cooktops and two convection ovens, you’re ready to create a feast – guided by an intuitive touchscreen.
- Guided cooking using your touchscreen makes it simple to cook my food, function, or recipe.
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Four induction cooking zones, which can be paired to form two SmartZones
- 6.9 cu ft total oven capacity across two oven cavities

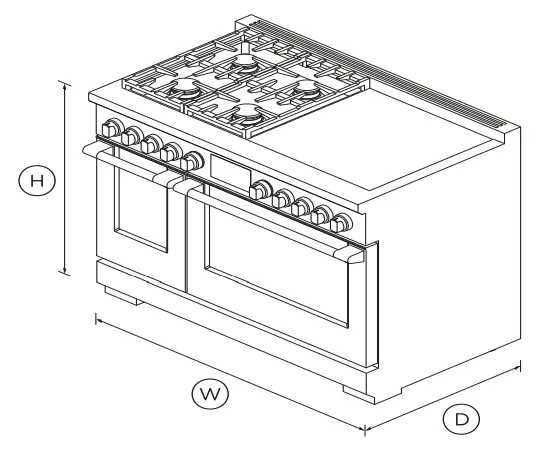

DIMENSIONS
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Depth | 29 1/8″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal
visibility while cooking.
Generous capacity
Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
On the gas side of the cooktop, Sealed dual flow burners deliver power up to 19,000 BTU, while the induction side delivers up to 3700W. This finely tuned cooktop provides instant and immediate control from the highest heat to the most gentle simmer.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast iron trivets, and beautifully weighted, halo-illuminated dials. Each cavity features incandescent lights and full-extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean-proof side racks, which don’t need to be removed when using this function. The induction zones only need a quick wipe after use to keep them clean.
SPECIFICATIONS
| Accessories | |
| Square handle option | AH-R48 |
| Capacity | |
| Capacity total (AHAM) | 4.8cu ft |
| Capacity usable (AHAM) | 3.8cu ft |
| Shelf positions | 5 |
| Cleaning | |
| Dishwasher proof trivets | • |
| Pyrolytic self-clean | • |
| Controls | |
| Electric circuit | 4 wire |
| High-resolution display | • |
| Metal illuminated dials | • |
| Sabbath mode | • |
| Wifi connectivity | • |
| Gas Requirements | |
| Fitting and pipe | ½ NPT, min. ⅝” flex line |
| Supply Pressure (LPG) | 11″ to 14″ W.C |
| Installation Dimensions | |
| Height (excluding vent trim) | 35 3/4 – 36 3/4″ |
| Oven Features | |
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | • |
| True convection | • |
| Oven functions | |
| True convection | • |
| Oven performance | |
| Bake | • |
| Bake | 4600 BTU |
| Bake power | 4600 |
| Broil | 3600W |
| Main oven – True convection | 2500W |
| Power requirements | |
| Rated current | 50A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1/8″ |
| Height | 35 3/4 – 36 3/4″ |
| Width | 47 7/8″ |
| Rangetop features | |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| Sealed Dual Flow Burners™ | 4 |
| SmartZone | 2 |
| Vent trim included | • |
| Zone bridging | • |
| Rangetop Performance | |
| Left front zone rating | 2100/3700W |
| Left rear zone rating | 2100/3700W |
| Power back left | 13000 BTU |
| Power back right | 13000 BTU |
| Power front right | 13000 BTU |
| PowerBoost | • |
| Right front zone rating | 2100/3700W |
| Right rear zone rating | 2100/3700W |
| Safety | |
| Pan detection system | • |
| Safety time out | • |
| Surface hot indicators | • |
| Secondary oven features | |
| Convection bake | • |
| Secondary oven functions | |
| Bake | • |
| Convection broil | • |
| Number of secondary ovens | 11 |
| Warranty | |
| Parts and labor | Limited 2 Years parts & labor |
| SKU | 81891 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher& Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
