Fisher Paykel Cpv2-366l N 36 Inch Lpg Gas Rangetop User Guide (+ PDF)

CPV2-366L N 36 Inch LPG Gas Rangetop
User Guide
Series 9 | Professional
Stainless Steel | LPG

Contents hide

1 CPV2-366L N 36 Inch LPG Gas Rangetop

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

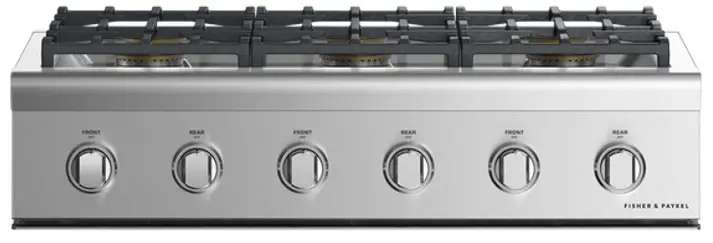

CPV2-366L N 36 Inch LPG Gas Rangetop

Cook with the power and precision of a professional, with this large cooking space that includes six gas burners.

Your burners can deliver anything from a high 19,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
Continuous surface grates designed for pots and pans to move safely across the cooktop

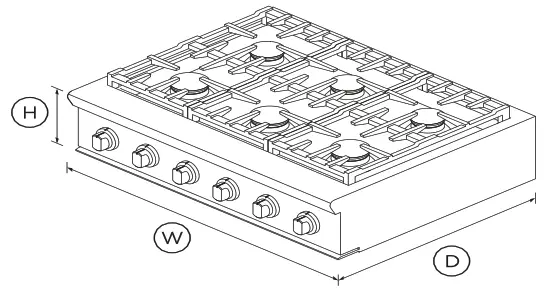

DIMENSIONS

Height	8 5/16″
Width	35 7/8″
Depth	28″

FEATURES & BENEFITS

Perfect heat
Sealed Dual Flow Burners™ deliver range top power up to 19,000 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise Control
From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full-surface simmer is delivered across all burners.
Cooking flexibility
The continuous surface grates are designed for pots and pans to move safely across the range top. Full coverage, deep-platform style grates are designed so heat goes directly onto the pot rather than the grates themselves, for a faster boil and energy efficiency.
Easy cleaning
These range tops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Complementary design
Built to last with distinctive, bold styling, this range top is designed to match the Fisher & Paykel Professional style family of appliances.

SPECIFICATIONS

Burner ratings
Max burner power	19000BTU
Power back center	13000BTU
Power back left	13000BTU
Power back right	13000BTU
Power front center	15000BTU
Power front left	19000BTU
Power front right	19000BTU
Controls
Metal illuminated dials	•
Performance
Sealed Dual Flow Burners™	6
Simmer on all burners	140°F
Power requirements
Amperage	15A
Supply frequency	60Hz
Supply voltage	120VV
Product dimensions
Depth	28″
Height	8 5/16″
Width	35 7/8″
Recommended Back Guards Ventilation
Minimum CFM	600 BTU
Pro hood	VS36 / VS1236
Warranty
Parts and labor	2 years
SKU	71389

The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
