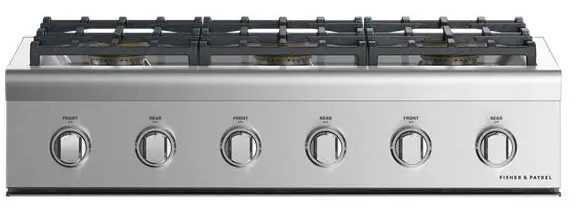

FISHER PAYKEL CPV2-366L N Gas Rangetop, 36 inch, LPG
Cook with the power and precision of a professional, with this large cooking space that includes six gas burners.
- Your burners can deliver anything from a high 19,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
- Continuous surface grates designed for pots and pans to move safely across the cooktop

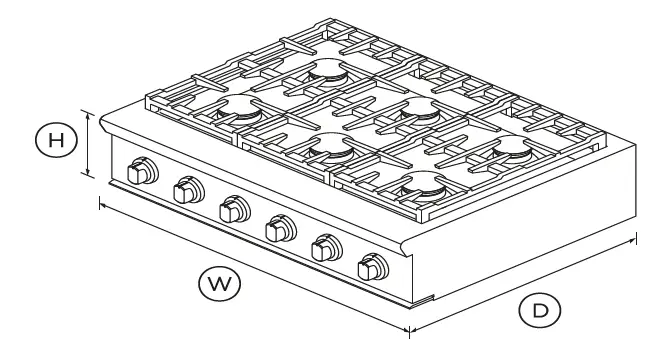

DIMENSIONS
- Height 8 5/16″
- Width 35 7/8″
- Depth 28″
FEATURES & BENEFITS
- PERFECT HEAT
Sealed Dual Flow Burners™ deliver rangetop power up to 19,000
BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames. - PRECISE CONTROL
From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners. - COOKING FLEXIBILITY
The continuous surface grates are designed for pots and pans to move safely across the rangetop. Full coverage, deep-platform style grates are designed so heat goes directly onto the pot rather than the grates themselves, for a faster boil and energy efficiency. - INFORMATION AT A GLANCE
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
EASY CLEANING
These rangetops have sealed burners and a single sheet cooking surface which, combined with a commercial-style stainless steel finish and dishwasher-safe grates, allow easy cleaning. - COMPLEMENTARY DESIGN
Built to last with distinctive, bold styling, this rangetop is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
Burner ratings
| Max burner power | 19000BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 19000BTU |
Controls
| Metal illuminated dials | • |
Performance
| Sealed Dual Flow Burners™ | 6 |
| Simmer on all burners | 140°F |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
Product dimensions
| Depth | 28″ |
| Height | 8 5/16″ |
| Width | 35 7/8″ |
Recommended Back Guards Ventilation
| Minimum CFM | 600 BTU |
| Pro hood | VS36 / VS1236 |
Warranty
| Parts and labor | 2 years |
| SKU | 71389 |
This page’s product dimensions and specifications apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
- User Guide
- Service & Warranty
- Installation Guide
- Data Sheet Gas Cooktop
Planning Guide Gas Cooktop
